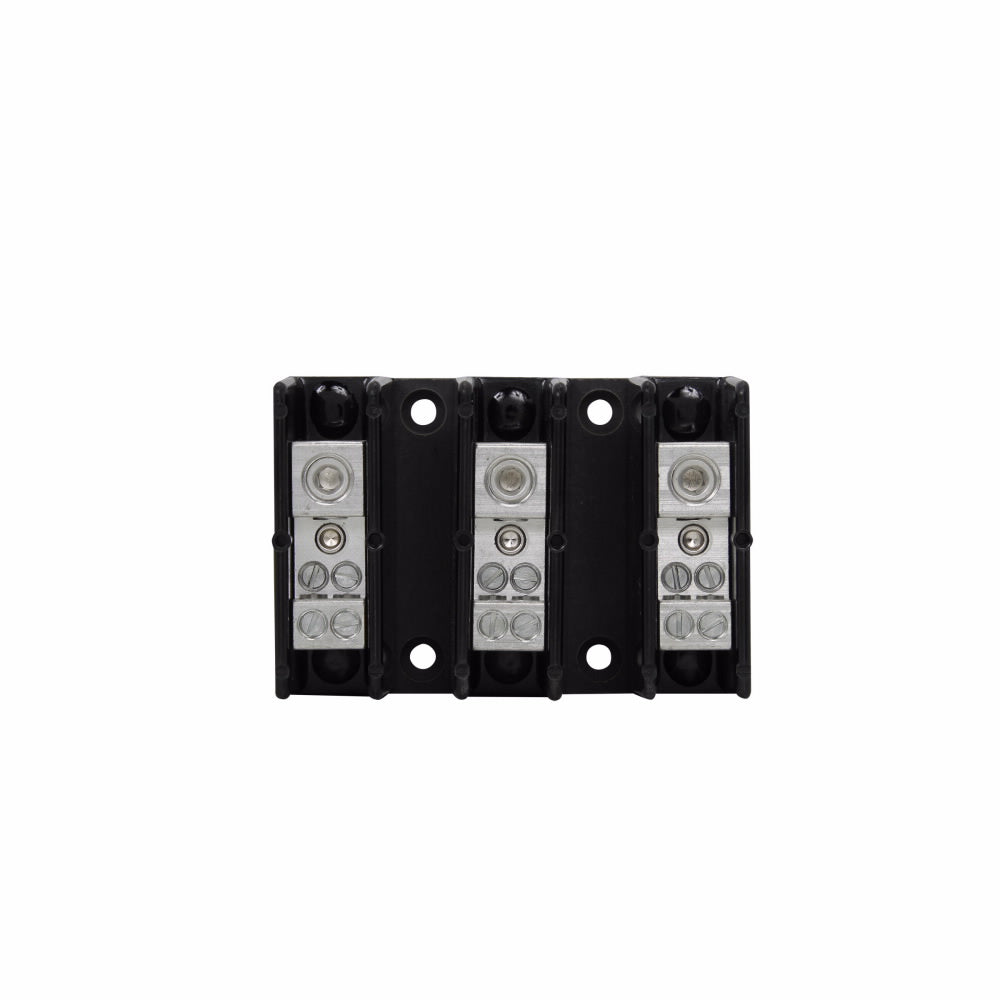

EATON PDB220-3 TERMINAL BLOCKS
EATON Eaton PDB220-3 BUS Power Distribution Block 600 VAC/VDC 175 A 3 Poles
EATON Eaton PDB220-3 BUS Power Distribution Block 600 VAC/VDC 175 A 3 Poles
EATON PDB220-3 TERMINAL BLOCKS
Eaton PDB220-3 BUS Power Distribution Block 600 VAC/VDC 175 A 3 Poles
Eaton PDB220-3 BUS Power Distribution Block 600 VAC/VDC 175 A 3 Poles

Eaton PDB220-3 BUS Power Distribution Block 600 VAC/VDC 175 A 3 Poles

EATON
Brand: EATON
SKU: PDB220-3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton PDB220-3 is a barrier power distribution block designed for both AC and DC applications, rated at six hundred volts and one hundred seventy-five amps. This product features three poles and supports a variety of wire sizes, making it suitable for various electrical assemblies and panels.

  • Rated for 600 VAC/VDC voltage.
  • Supports wire sizes from eight to two/0 AWG for line connections.
  • Includes four load wire connections suitable for 14 to 4 AWG copper wires.

Product Highlights

This power distribution block helps maintain compliance with electrical safety standards while providing a robust solution for power distribution in industrial settings.

Product Information

Standard Information

  • Manufacturer: Eaton
  • MPN: PDB220-3
Technical Specifications
Voltage Rating:
600 VAC/VDC
Amperage Rating:
175 A
Number of Poles:
3
Primary Connections:
1 Box Lug per Pole
Secondary Connections:
4 Box Lugs per Pole
Line Wire Size:
8 to 2/0 AWG Copper
Load Wire Size:
14 to 4 AWG Copper
Short Circuit Current Rating:
100/200 kA
Dimensions:
2.88 inches L x 4.27 inches W x 2.13 inches H
Material:
Aluminum, Tin Plated
Standards/Approvals:
CE Certified, CSA Certified, IEC Certified, NEC Certified, RoHS Compliant, UL 1953
