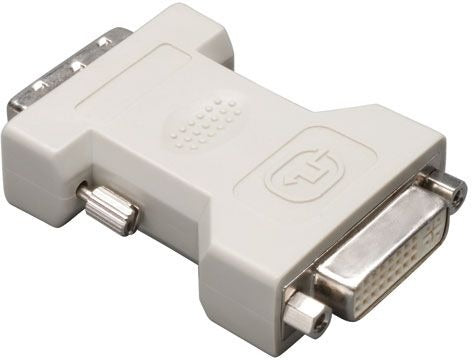

Eaton p118-000 Dvi-d to Dvi-i Female Adapter

Product Description

The EATON p118-000 is a compact DVI adapter that connects a DVI-D male connector to a DVI-I female port, enabling two different DVI digital cables to be joined at a single interface point. This fully molded adapter is built for digital signaling only and does not pass VGA analog signals. It is suited for AV technicians, low-voltage installers, and IT professionals working with display systems that require DVI interconnection between mismatched cable types. The compact, molded construction keeps the adapter profile low and reduces strain at the connection point.

This adapter is used in residential and commercial display installations where a DVI-D source cable must terminate into a DVI-I female port. Typical scenarios include digital signage, monitor setups, and projection systems where cable mismatches occur at patch panels or display inputs. Because it supports digital-only signaling, it is not appropriate for systems that require analog VGA signal passthrough. Installers working in structured wiring or AV rack environments will find this adapter useful for resolving last-point interconnection problems without recabling.

Key Features

• DVI-D male to DVI-I female configuration joins mismatched DVI cable types
• Digital signaling only — does not pass VGA analog signals
• Fully molded construction for durability and compact profile
• Useful for resolving difficult DVI interconnection problems at patch points

Compatibility

Designed as an OEM-style replacement or supplemental adapter for digital DVI display systems requiring a DVI-D male to DVI-I female interface connection.

Installation Notes

Installation is performed by low-voltage technicians or AV integrators and requires no special tools. Power down or turn off the connected display and source device before seating or removing the adapter. Do not attempt to use this adapter to pass analog VGA signals, as the DVI-D male connector physically excludes the analog pins present on DVI-I and DVI-A connectors. Follow applicable low-voltage wiring standards for the installation environment.

Technical Specifications

• Connector A: DVI-D Male
• Connector B: DVI-I Female
• Signal Type: Digital only
• Construction: Fully molded

Standard Information

• Brand: EATON
• Manufacturer Part Number: p118-000
