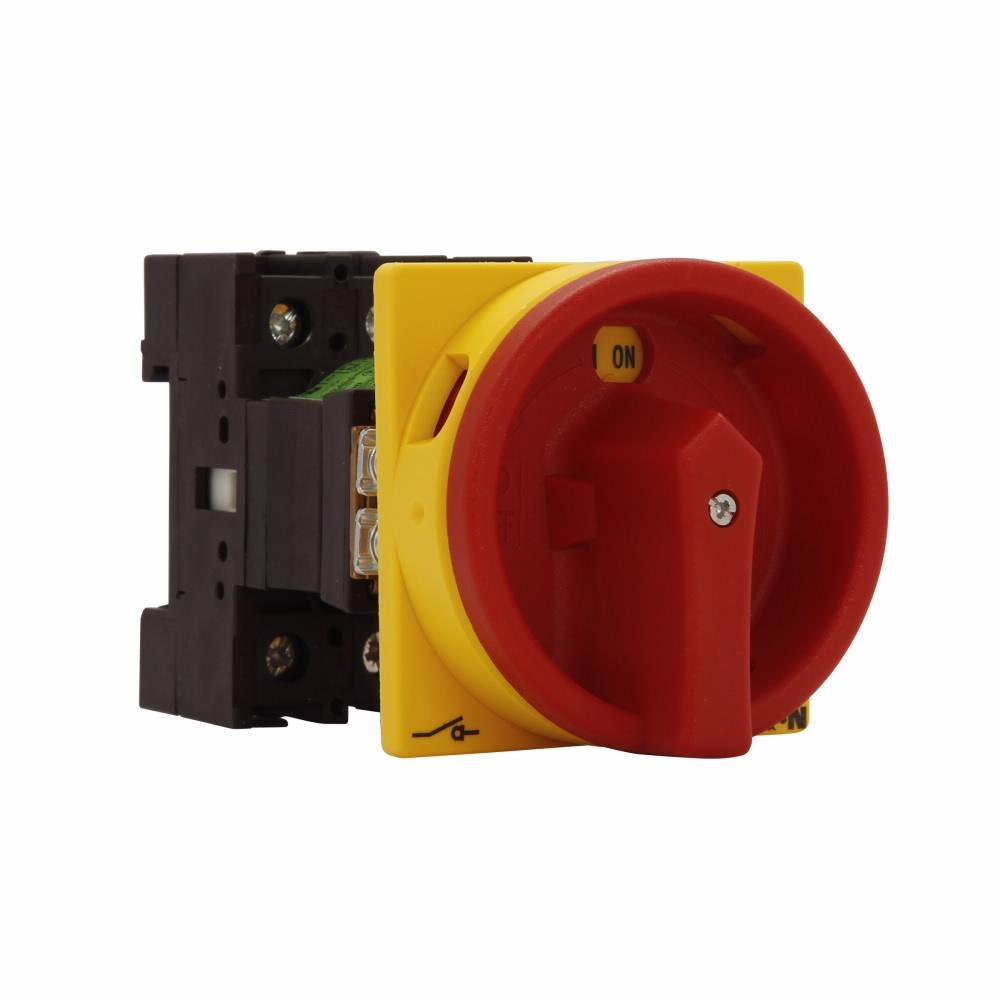

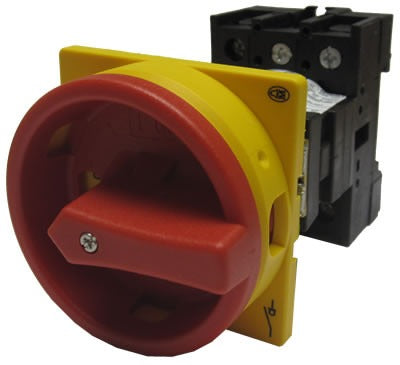

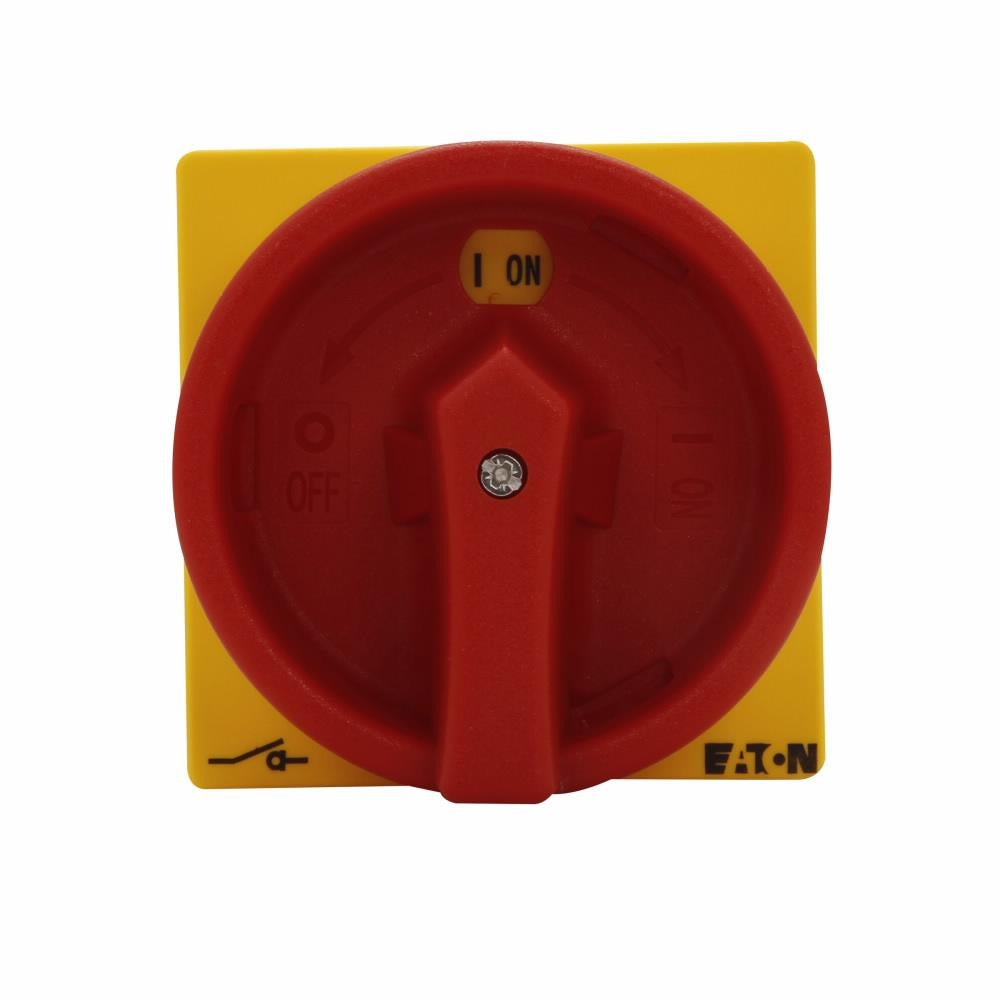

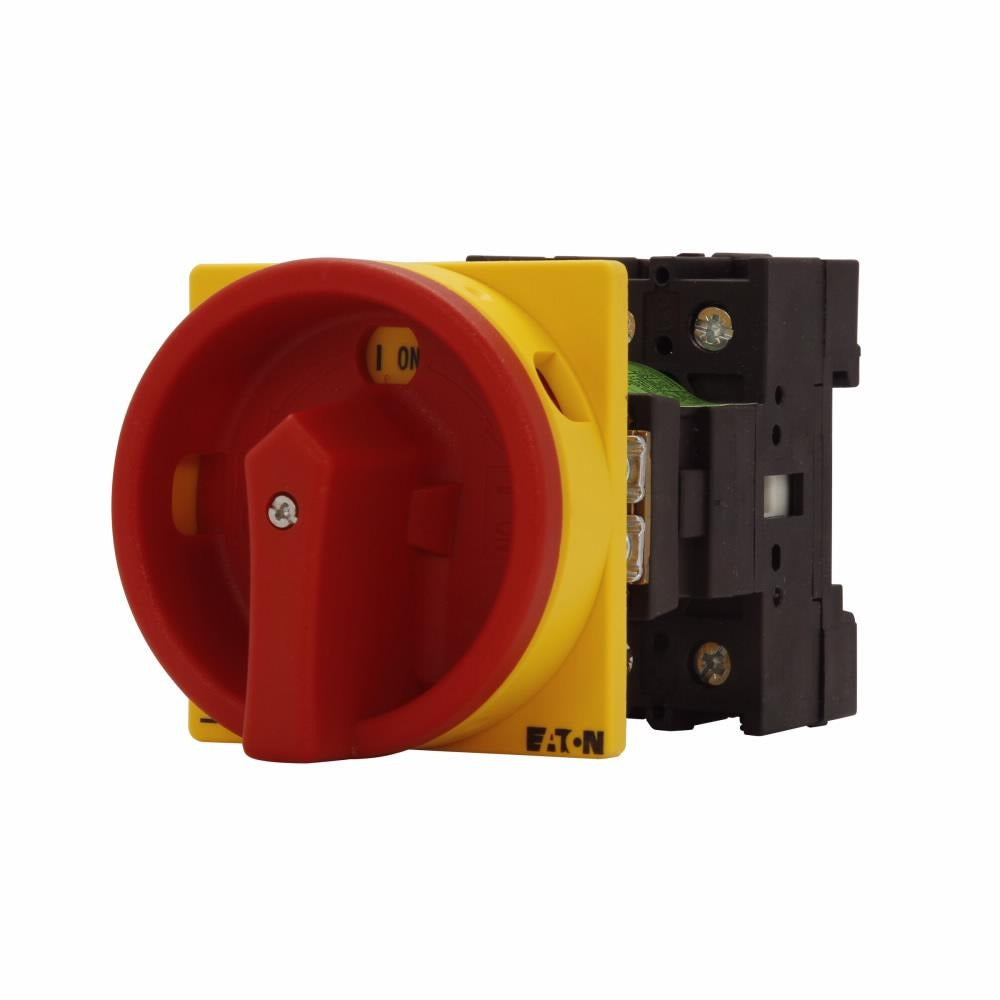

Eaton P1-32/V/SVB rotary disconnect switch 32 A (3-pole)

Product Description

Eaton P1-32/V/SVB is a rotary disconnect circuit interrupter rated 32 A and 600/690 VAC. It is a three-pole device with a 5 kA short-circuit rating, 15 hp capability and 50/60 Hz frequency. The switch features a handle actuator, screw terminals, IP65 enclosure rating, rear mounting and an operating temperature range of -25 to 50 deg C. Dimensions are 5-1/2 x 3 x 3 in and it is UL listed for panel and industrial switching and isolation.

• Electrical ratings: 32 A, 600/690 VAC, 5 kA short-circuit rating, 15 hp, 50/60 Hz, 3 poles
• Mechanical features: handle actuator, screw terminals, lockable in Off position, rear mounting, dimensions 5-1/2 x 3 x 3 in
• Environment and approvals: IP65 enclosure rating, operating temperature -25 to 50 deg C, UL listed

Product Highlights

Three-pole 32 A rotary disconnect with IP65 enclosure and 5 kA SCCR for panel and industrial isolation

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: P1-32/V/SVB
