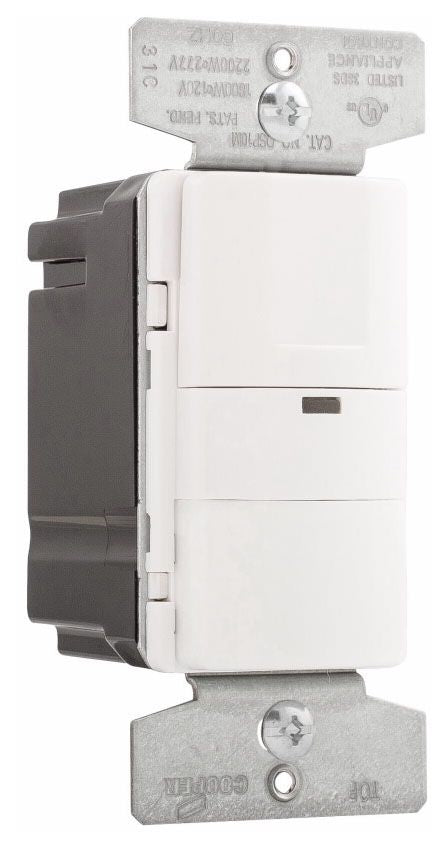

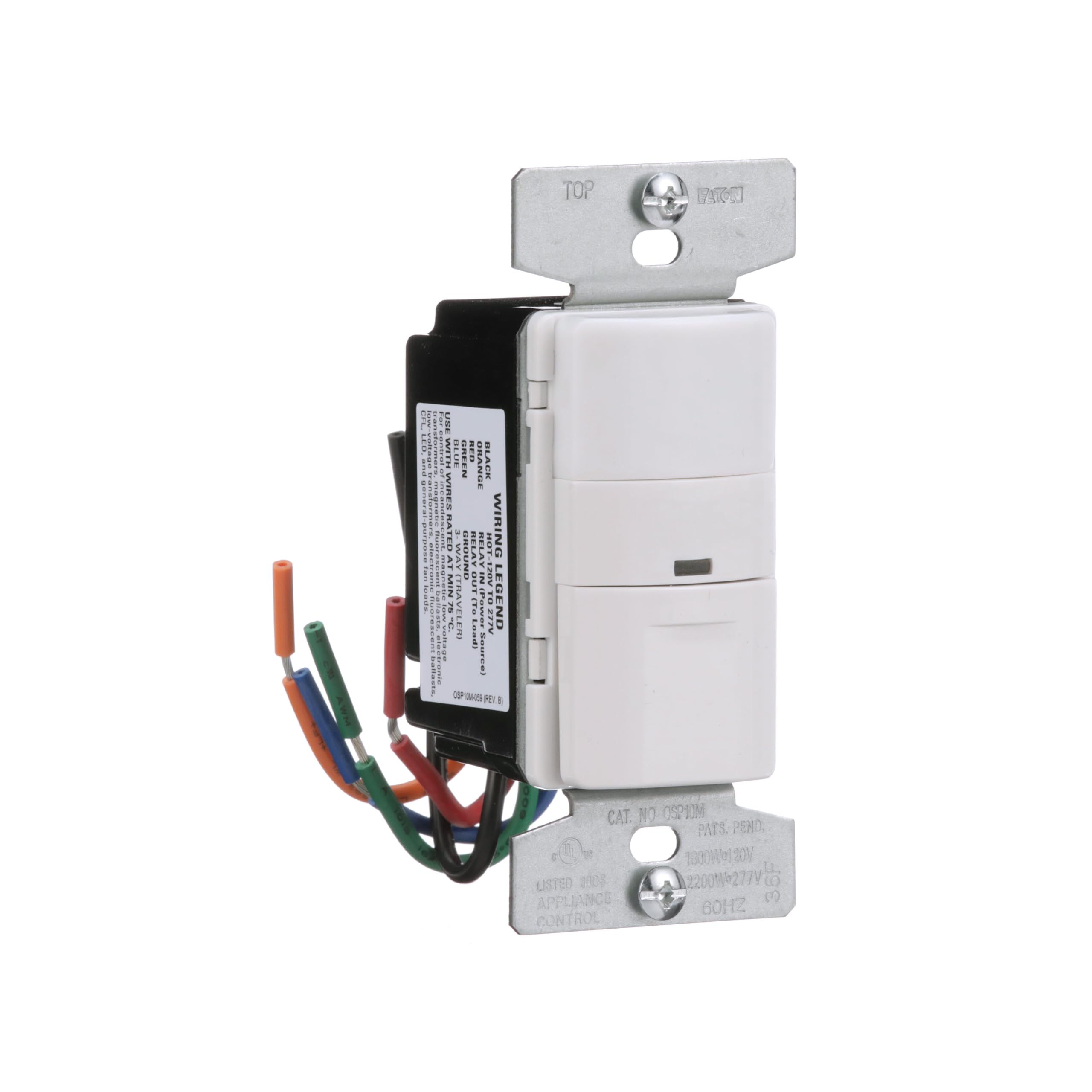

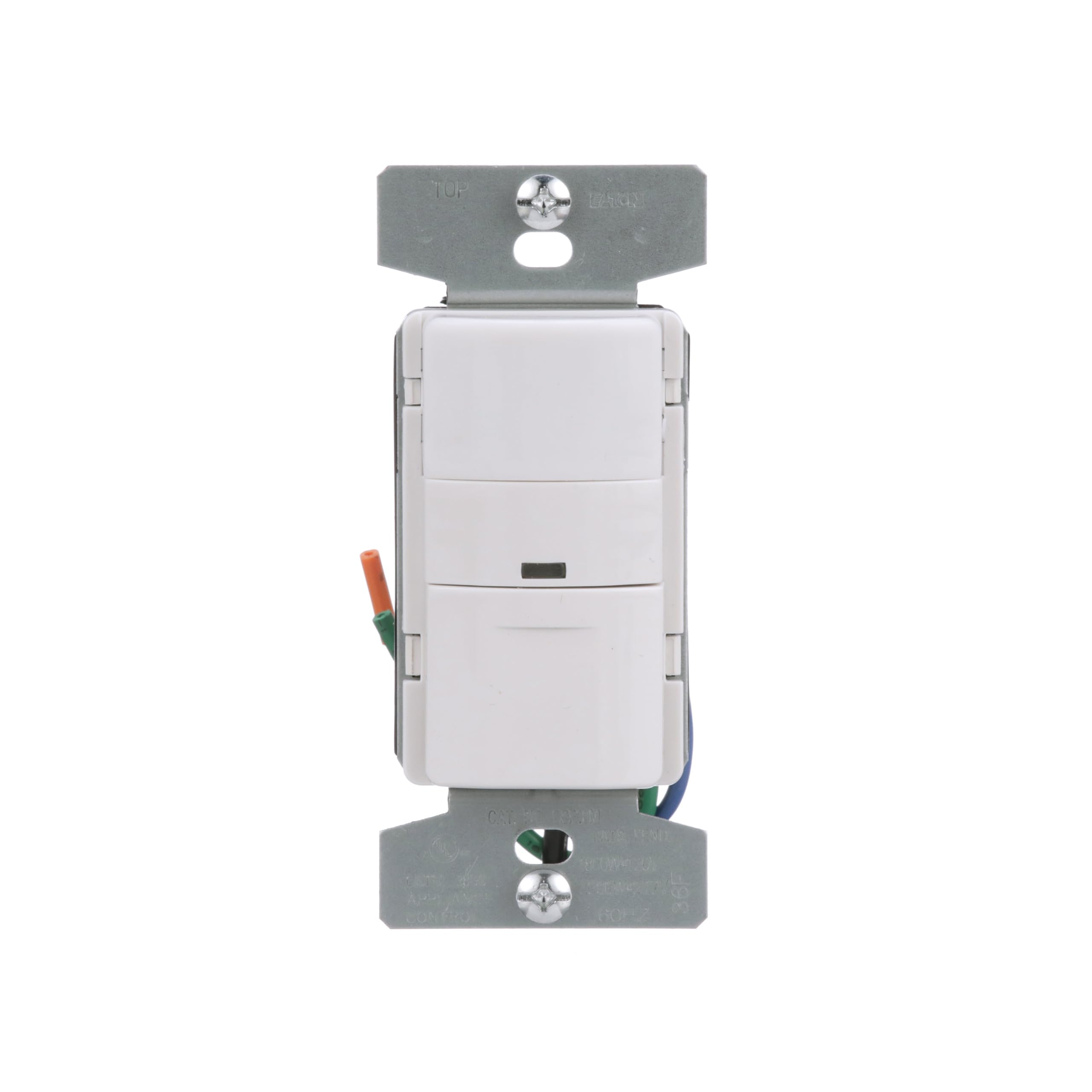

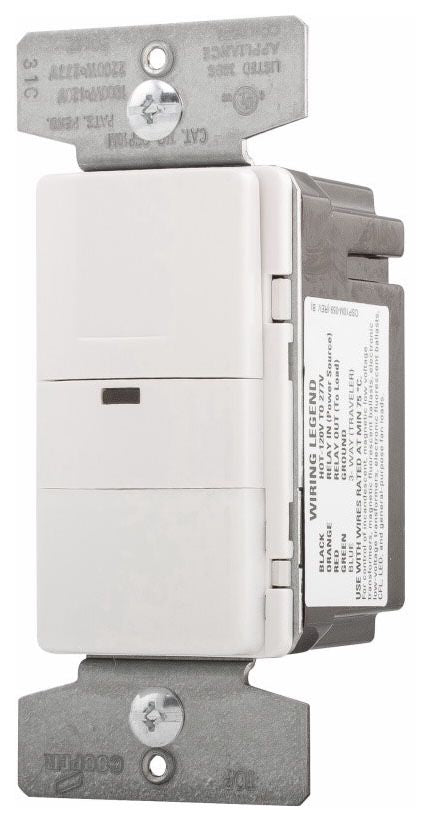

Eaton OSP10M-W Commercial Grade Passive Infrared Wall Mounted Occupancy Sensor 120/277V

Product Description

The Eaton OSP10M-W Passive Infrared Occupancy Sensor conserves energy and automates your residential and commercial lighting. This device uses passive infrared detection to monitor room occupancy, automatically turning lights on when people are present and off when the room is empty. It has a 180-degree field of view, detecting major motion within 1,000-square feet and minor motion within 300-square feet. Adjustable time delay settings control lighting shutoff after vacancy.

• Conserves energy and automates your residential and commercial lighting when you enter or leave a room
• 180-degree field of view and detects major motion within 1,000-square feet of the sensor and minor motion within 300-square feet
• Compatible with incandescent lamps, halogen fixtures, electronic and magnetic fluorescent ballasts and electrical motor loads

Product Highlights

This commercial grade occupancy sensor is ideal for offices, conference rooms, basements, multimedia rooms, and playrooms. It installs in place of a single-pole wall switch and fits a standard wall box.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: OSP10M-W
• Country of Origin: CHN

Technical Specifications

• Voltage: 120/277V
• Sensor Type: Passive Infrared
• Mounting: Wall Mounted
• Application: Commercial Grade
• Field of View: 180-degree
• Major Motion Detection: 1,000-square feet
• Minor Motion Detection: 300-square feet
• Compatibility: Incandescent lamps, halogen fixtures, electronic and magnetic fluorescent ballasts and electrical motor loads
• Wiring: Single-pole (or 3-way wiring)
• Compliance: California Title 24 compliant
• Power Consumption: 800 W (INC/HAL at 120 V) 1200 W (FLR at 120 V) 2200 W (FLR at 277 V)

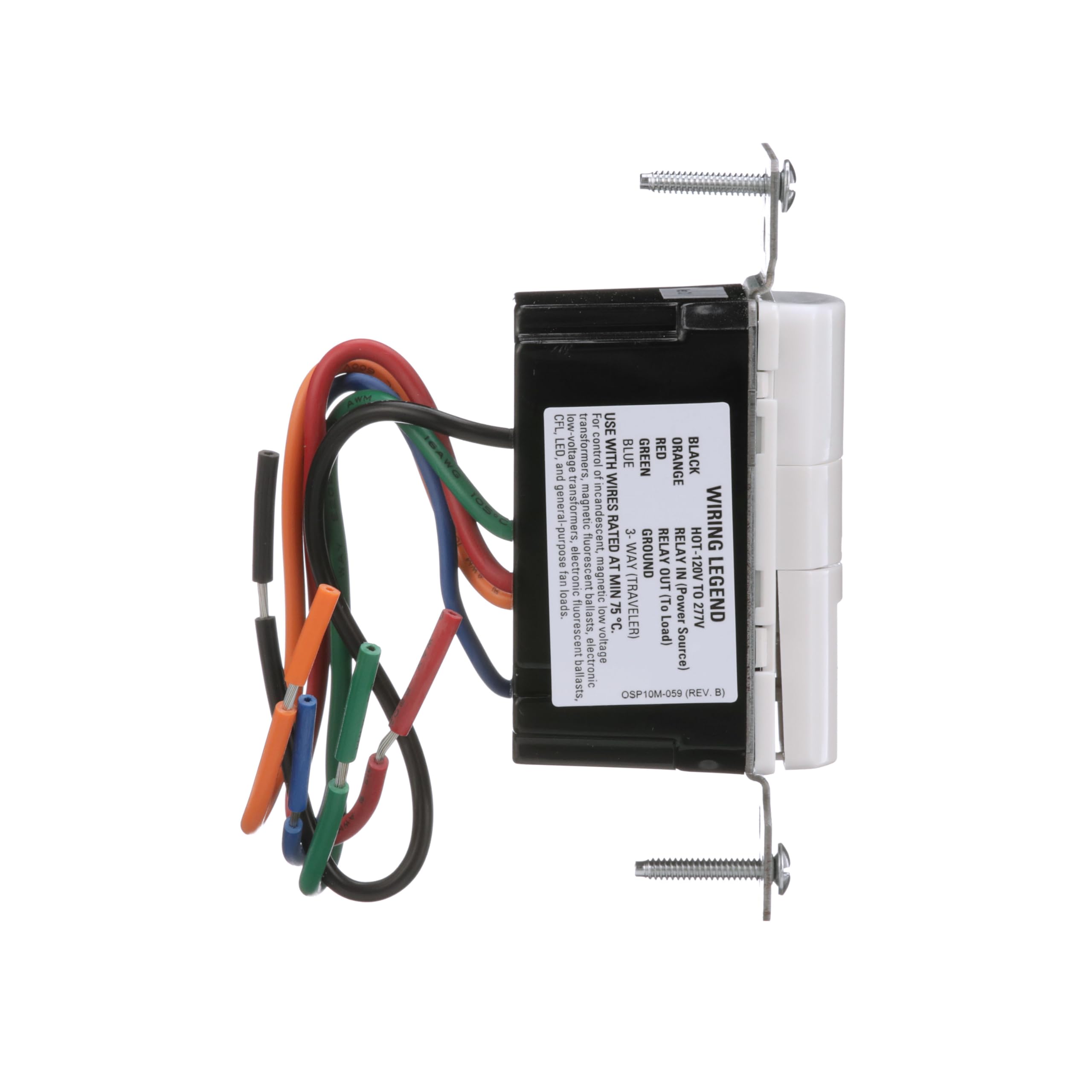

• Wiring Method: Wire leads
• Number of Poles: Single-pole
• Phase: Single-phase
• Mounting Method: Flush
• Load Type: LED ELV HAL INC CFL MLV FLR Electrical motor loads
• Number of Ways: Three-way
• Relay: Single
• Product Length/Depth: 4.63 in
• Product Height: 2.19 in
• Product Width: 3 in
• Certifications: cULus Listed NOM
