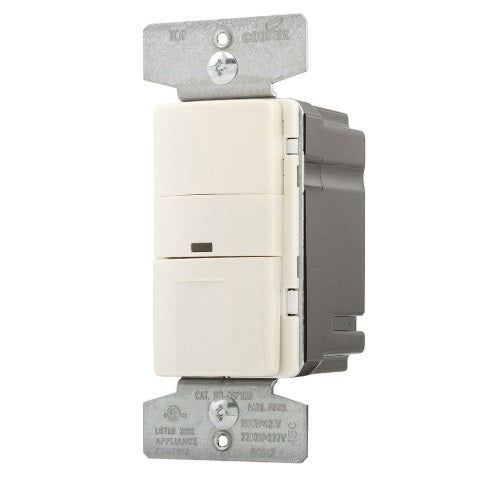

Eaton OSP10M-V Commercial Grade Passive Infrared Wall Mounted Occupancy Sensor 120/277V

Product Description

The Eaton OSP10M-V Passive Infrared Occupancy Sensor conserves energy and automates residential and commercial lighting when you enter or leave a room. This device uses passive infrared detection to monitor room occupancy, automatically turning lights on when people are present and off when the room is empty. It has a 180-degree field of view and activates lighting when it detects major motion within 1,000-square feet of the sensor and remains on by slight movement detection within a 300-square foot radius.

• Conserves energy and automates your residential and commercial lighting when you enter or leave a room
• 180-degree field of view and detects major motion within 1,000-square feet of the sensor and minor motion within 300-square feet
• Compatible with incandescent lamps, halogen fixtures, electronic and magnetic fluorescent ballasts and electrical motor loads

Product Highlights

This occupancy sensor has adjustable time delay settings and light level sensing capability. It is compatible with single-pole (or 3-way wiring) and fits a standard wall box.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: OSP10M-V

Technical Specifications

• Operating frequency: 60Hz
• Product Name: Eaton occupancy sensor switch
• Catalog Number: OSP10M-V
• UPC: 032664729379
• Product Length/Depth: 4.63 in
• Product Height: 2.19 in
• Product Width: 3 in
• Certifications: NOM, cULus Listed
• Product Type: Occupancy sensor switch
• Special features: Decorator
• Type: Occupancy sensor switch
• Voltage rating: 120/277 V
• Number of poles: Single-pole
• Phase: Single-phase
• Power consumption: 1200 W (FLR at 120 V) 2200 W (FLR at 277 V) 800 W (INC/HAL at 120 V)
• Wiring method: Wire leads
• Sensor type: Occupancy
• Mounting method: Flush
• Closure type: Maintained
• Load type: CFL Electrical motor loads MLV FLR ELV HAL LED INC
• Number of ways: Three-way
• Relay: Single
• Range: 1000 sq ft
• Brand: Eaton
• Maximum Voltage: 120V-277V
• Certificate: cUL/UL Listed
