Product Description

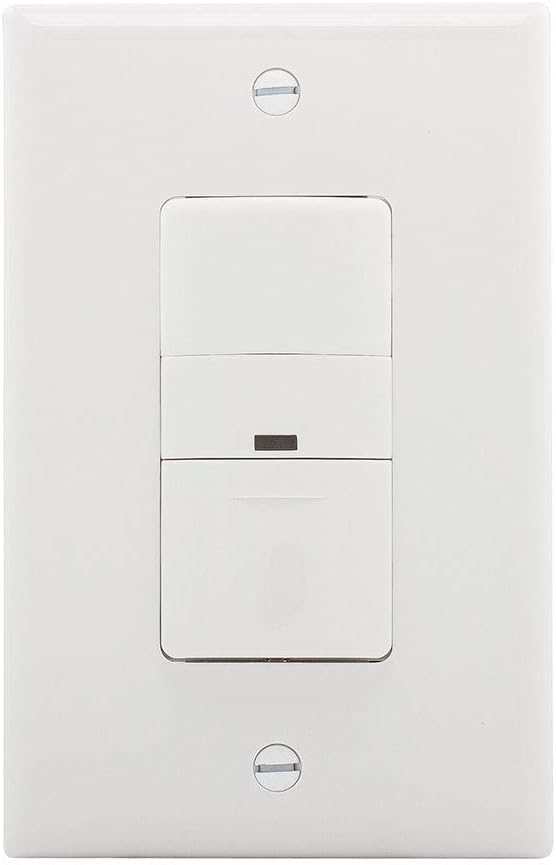

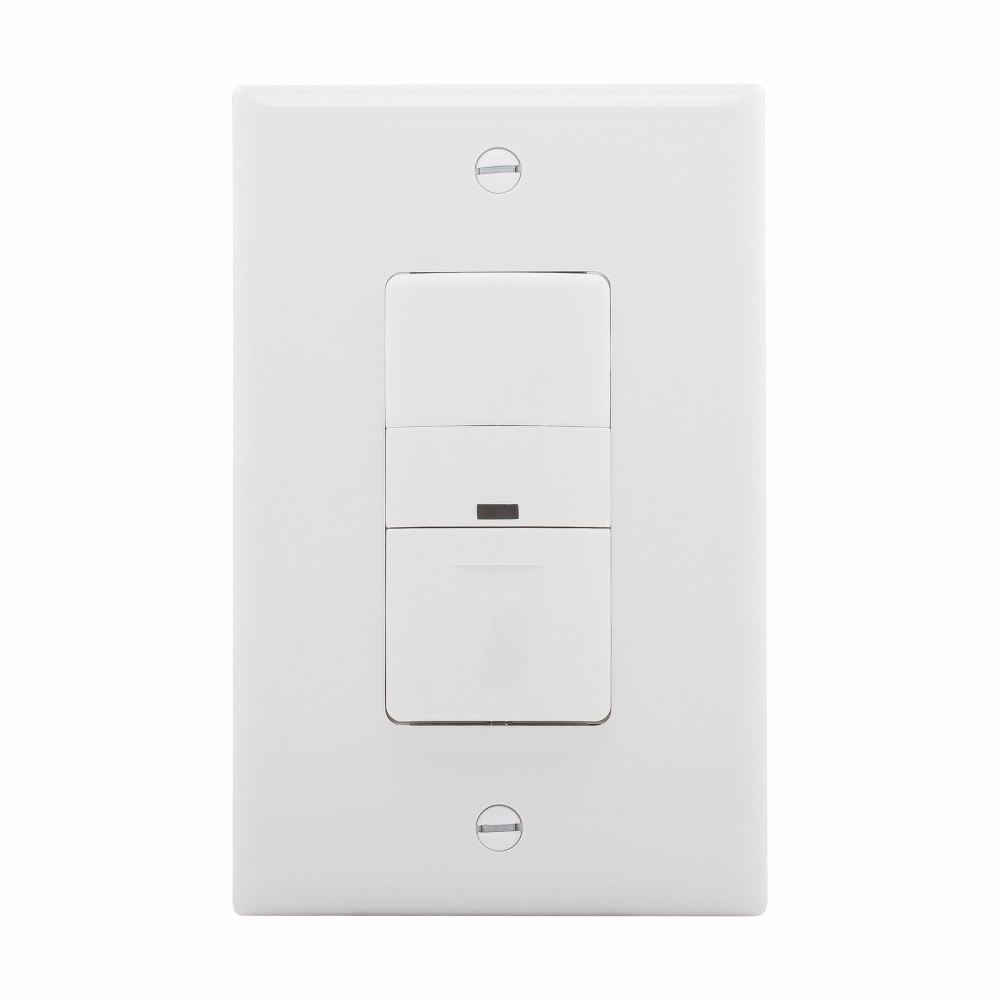

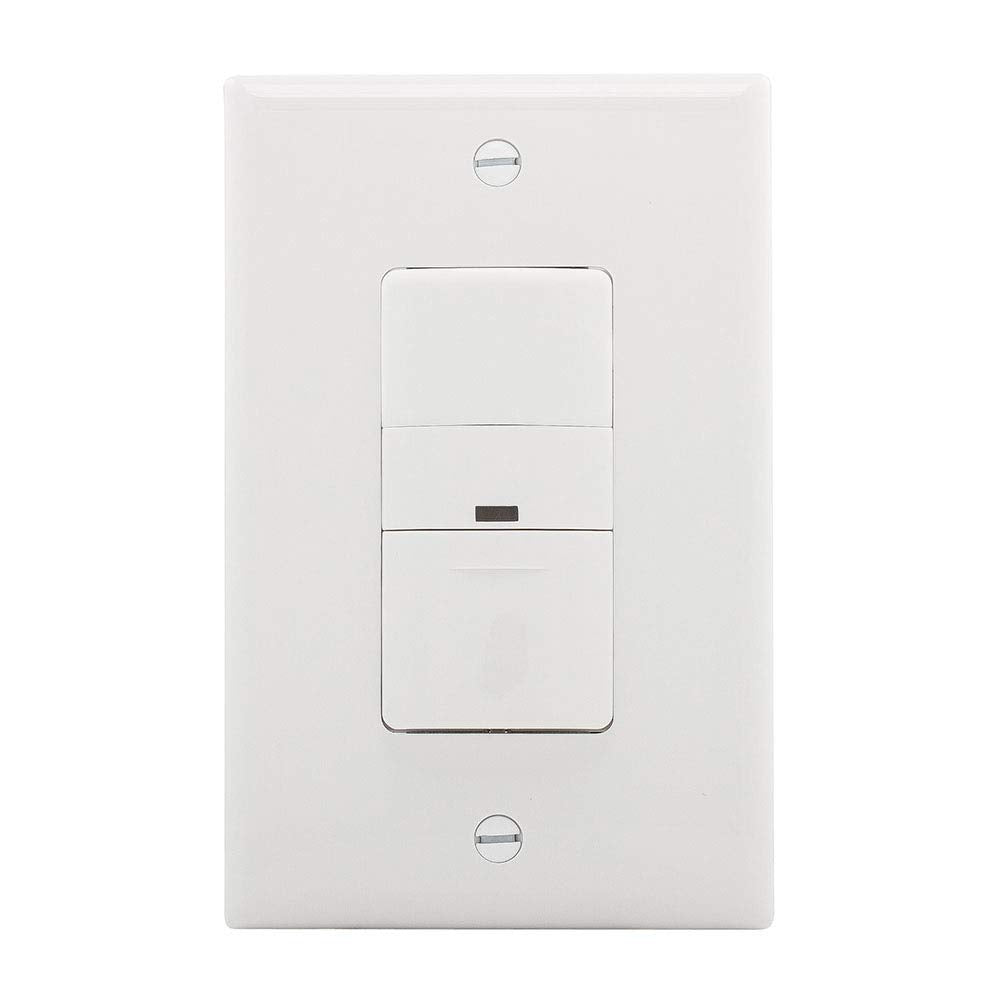

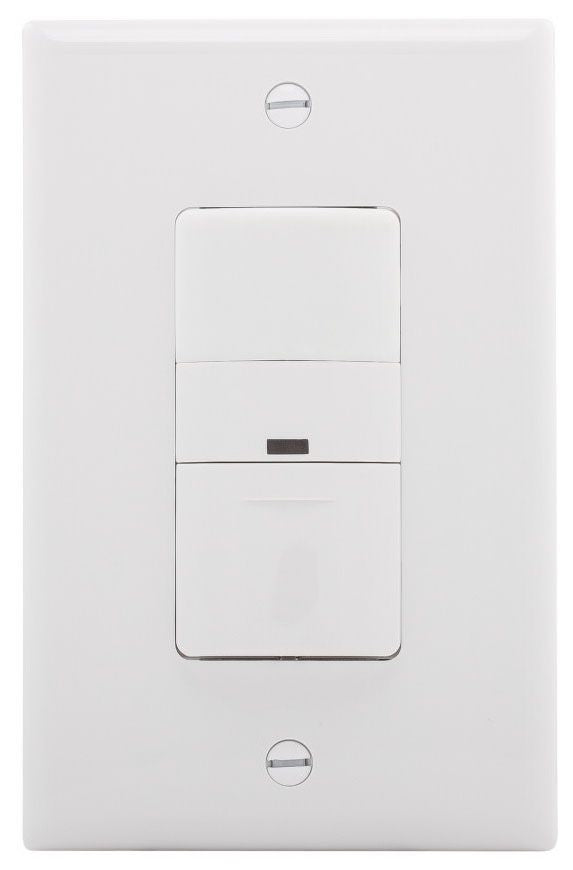

The EATON Wiring OS306U-W 600W Wall Mount Occupancy Vacancy Sensor provides a convenient energy saving lighting control alternative for 120V applications. This sensor replaces a standard light or fan switch and is easily installed in any standard wallbox to control most lighting loads. The sensor provides coverage for up to 450-square feet and a 180 degree field of view.
- When the device senses motion it will turn lights on.
- When the room is empty it will turn lights off.
- Selectable time delay can be set to wait between 5 seconds and 30 minutes to turn off lights.
Product Highlights
This Eaton occupancy sensor switch increases energy efficiency, promotes safety and produces reliable performance.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: OS306U-W
-
Country of Origin: CHN
Technical Specifications
-
Color: White
-
Voltage: 120 Volts
-
Wattage: 600 watts
-
Power Source: Corded Electric
-
Switch Style: Occupancy
-
Mounting Type: Wall Mount
-
Batteries Included?: No
-
Batteries Required?: No
-
Type: Sensor
-
Brand: Eaton
-
Width: 3.3 in
-
Height: 5 Inch
-
Length: 2.8 Inch
-
Standard: UL
-
Sub Brand: Eaton Wiring Devices
-
Applications: For Residential Lighting Controls
-
Number of Poles: 1 Pole
-
Number of Phases: 1 Phase
-
Manufacturer: EATON
-
Model / MPN: OS306U-W
-
Number of Items: 1.0
-
Application: Incandescent Lamps, Halogen Fixtures, Electronic and Magnetic Fluorescent, CFL, LED Electrical Motor Loads, Residential Lighting Control, Residential Buildings and Facilities Applications
-
Connection Type: Wire Lead
-
Coverage: 450 sq-ft
-
Lamp Type: Fluorescent/Halogen/Incandescent/LED
-
Material: Polycarbonate Resin
-
Power Rating: 600 W
-
Sensor Type: Occupancy/Passive Infrared
-
Series: OS306U
-
Temperature Rating: 32 to 104 deg F
-
Time Delay: 5 to 30 min
-
Viewing Angle: 180 deg
-
Voltage Rating: 120 VAC
-
Product Name: Eaton occupancy sensor switch
-
Catalog Number: OS306U-W
-
UPC: 032664722233
-
Product Length/Depth: 2.8 in
-
Product Width: 3.3 in
-
Product Weight: 0.001 lb
-
Certifications: NOM, cULus Listed
-
Product Type: Occupancy sensor switch
-
Special features: No neutral required
-

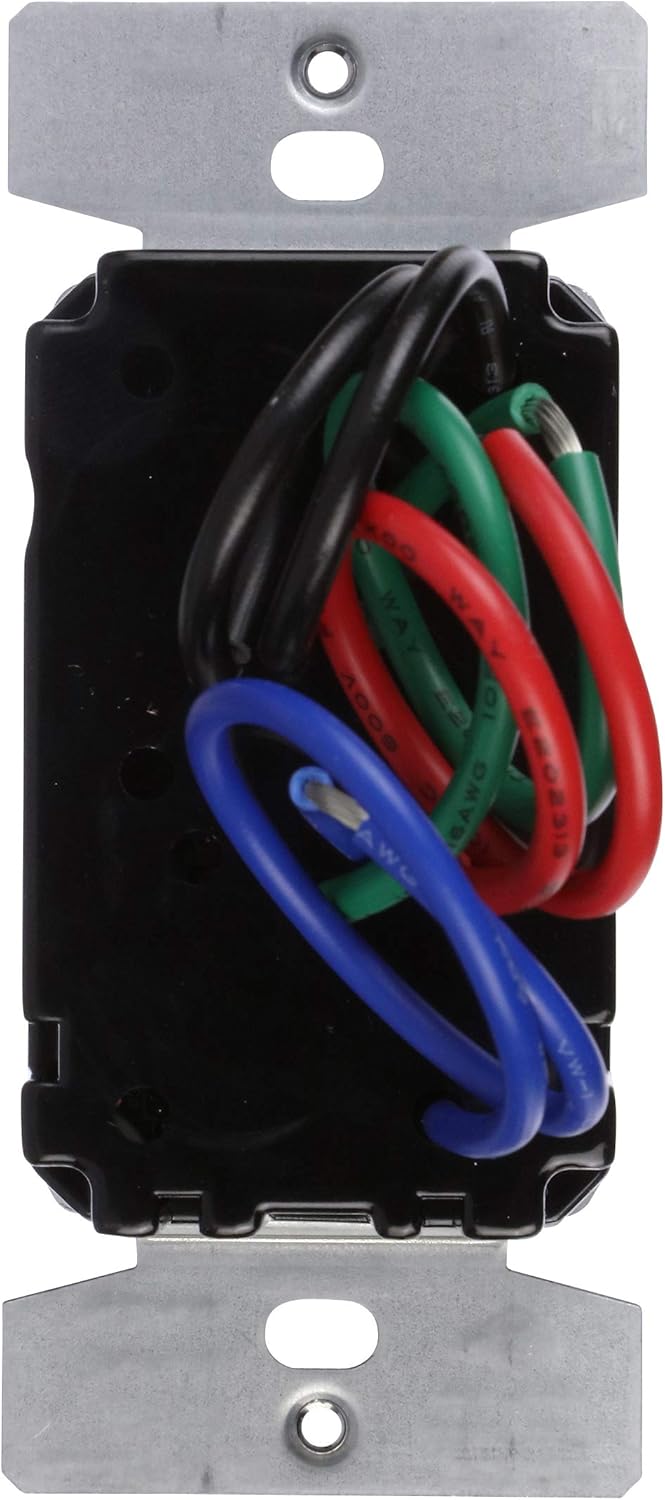

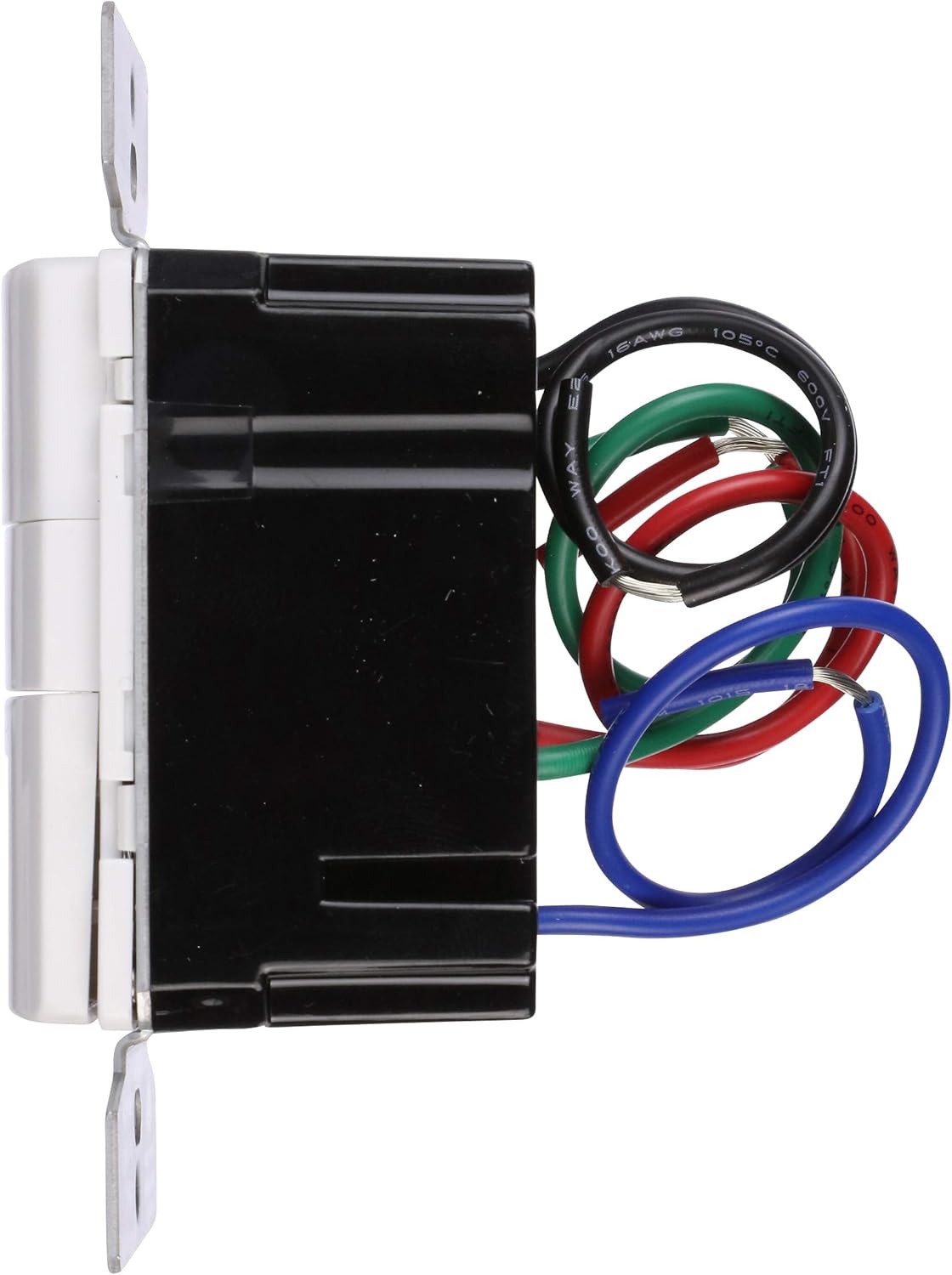

Wiring method: Wire leads
-
Range: 450 sq ft
-
Frequency Rating: 60 Hz
-
Sensing Angle: 180 deg
-
Sensing Range: 450 sq-ft
-
Timer Range: 5 to 30 min
-
Sensing Technology: Passive Infrared
