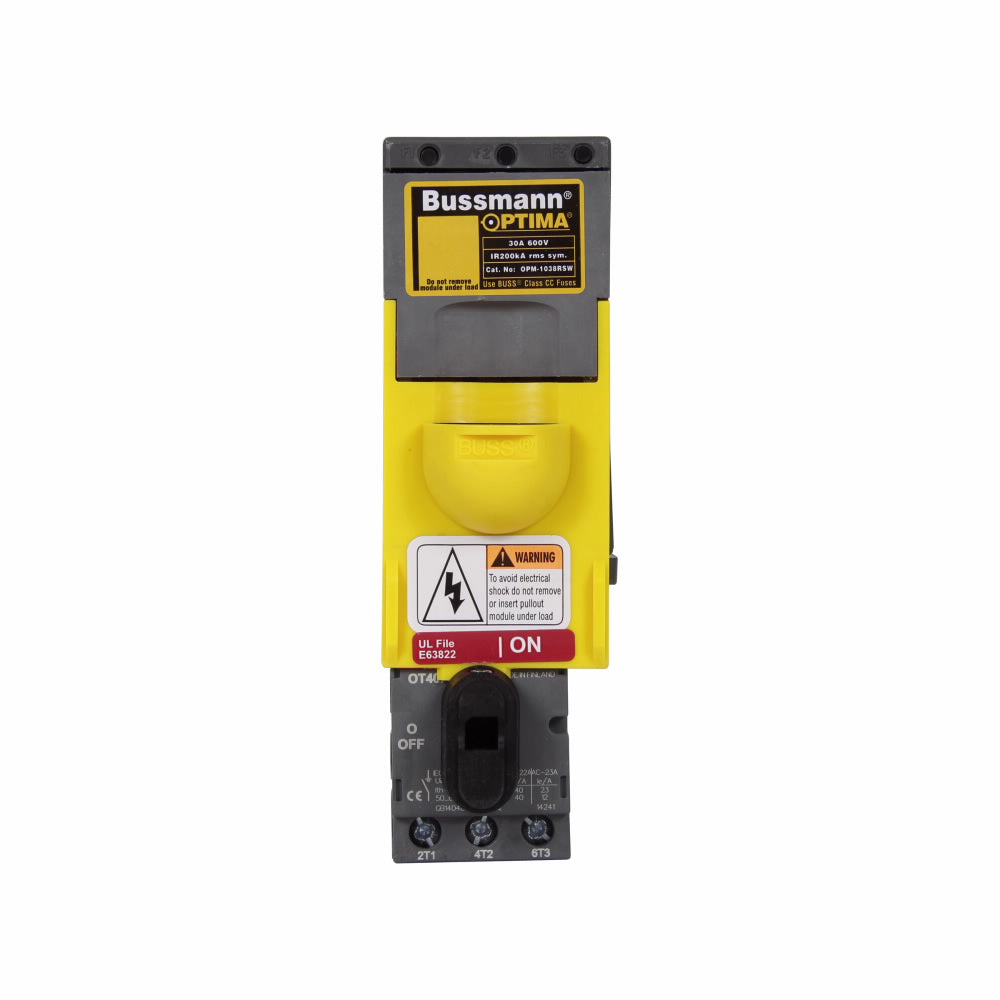

Eaton OPM-1038RSWC Bus Optima Module W/Comm & Switch (1)

Product Description

The Eaton OPM-1038RSWC is a bus optima module designed for overcurrent protection. This module operates at 600 VAC/VDC and handles up to 30 Amperes with three poles. It is ideal for applications that require modular mounting and can accommodate wire sizes from eighteen to eight AWG. The device offers features such as dead front construction for safety and open fuse indication lights.

• Rating: 30 A, 600 VAC/VDC
• Application: Suitable for industrial controls
• Mounting: Compatible with DIN rail and threaded installations

Product Highlights

This module supports solid and stranded wire types, ensuring versatility in installation. It is constructed from durable thermoplastic material, making it suitable for various environments.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171279770

Technical Specifications

• Amperage Rating: 30 A
• Application: Industrial Control, Process Control Systems
• Depth: 3.74 inches
• Fuse Type: Class CC
• Height: 5.72 inches
• Manufacturer Part Number: OPM-1038RSWC
• Material: Thermoplastic
• Mounting Type: DIN Rail/Threaded
• Number of Poles: 3
• Series: OPM-1038
• Standards/Approvals: CSA C22.2 No. 39, UL 508
• Voltage Rating: 600 VAC/VDC
• Width: 1.76 inches
