Eaton NON-EK Emergency Fuse Kit 20A-60A 250V

Product Description

The EATON NON-EK is a non-renewable cartridge emergency fuse kit rated for circuits up to 250 volts and covering the 20-amp to 60-amp range. The kit is assembled for field use by licensed electricians and service technicians who need on-hand replacements across multiple fuse sizes without sourcing each size separately. It includes six fuses in four amperage ratings plus a fuse tester, making it practical for facilities maintenance, service vans, and panel work where downtime matters. NON-series fuses are single-element, non-time-delay fuses suited for branch circuit and motor circuit protection where a straightforward overcurrent device is specified.

NON-series cartridge fuses see widespread use in industrial, agricultural, and commercial settings, as well as residential fuse panels, air conditioning units, pumps, and general appliances. This kit covers the most common amperage steps in that range, allowing a single stocked item to address multiple service calls. It is appropriate for branch circuit protection and motor protection applications where higher amperage or voltage ratings are required beyond the standard plug-fuse range.

Key Features

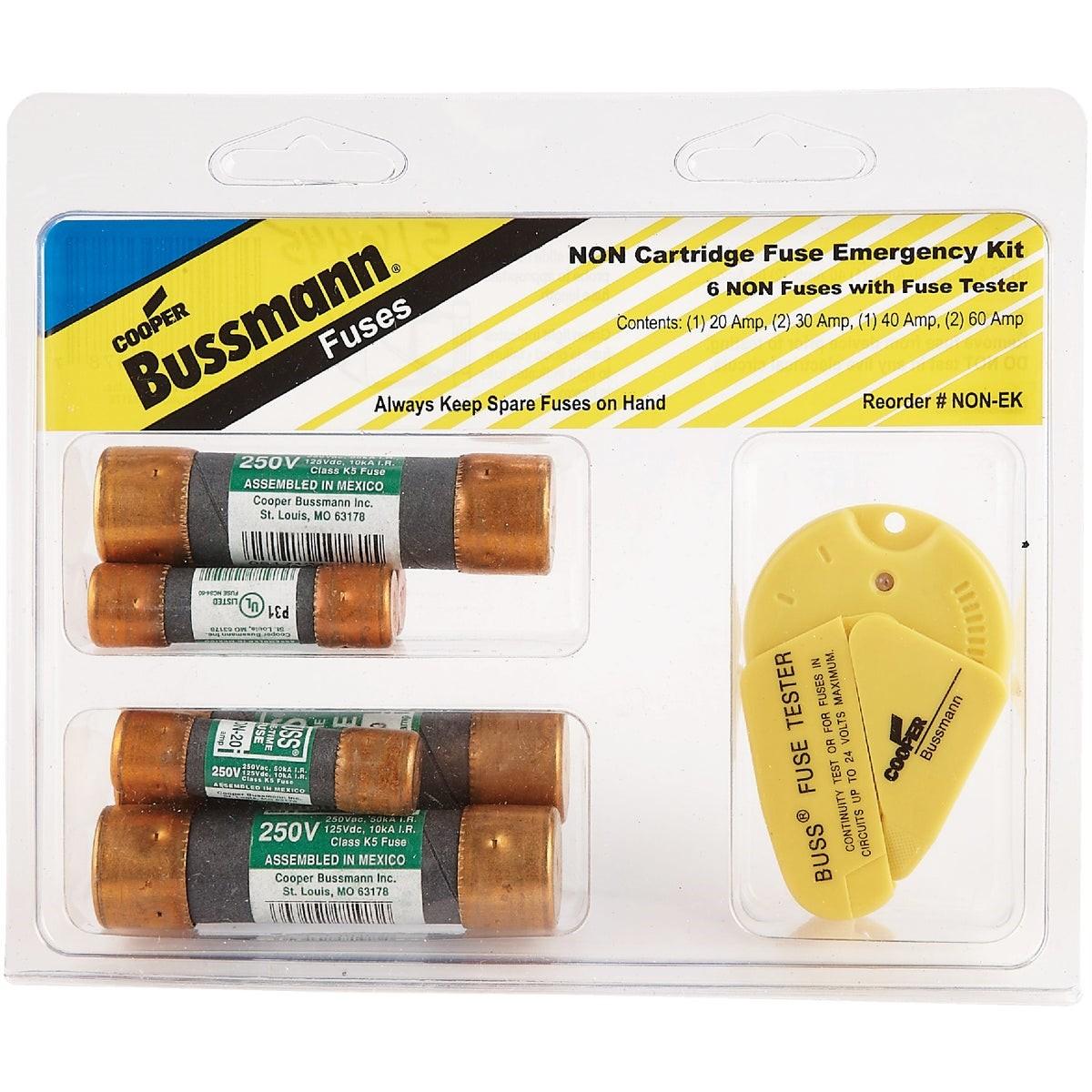

• Kit contains (1) NON-20, (2) NON-30, (1) NON-40, and (2) NON-60 fuses — six fuses total across four amperage ratings
• Includes a fuse tester for quick continuity verification in the field
• Rated up to 250 volts, covering a wide range of branch and motor circuit applications
• Non-renewable cartridge construction — replace after any overcurrent event
• Suitable for industrial, agricultural, commercial, and residential service work

Compatibility

Designed for use in branch circuits and motor circuits requiring NON-series non-renewable cartridge fuses rated at 250 volts, including residential fuse panels, air conditioning units, pumps, appliances, and general industrial and commercial equipment.

Installation Notes

Cartridge fuse replacement must be performed by a qualified electrician in accordance with NEC requirements. Always disconnect and lock out power to the panel or disconnect before removing or installing fuses. Use the included fuse tester to confirm an open fuse before replacement rather than assuming failure by visual inspection alone. Non-renewable fuses must be replaced after any overcurrent event — do not attempt to reuse a blown fuse.

Technical Specifications

• Voltage Rating: 250 volts
• Amperage Range: 20 amps to 60 amps
• Fuse Type: Non-renewable cartridge (NON-series)
• Kit Contents: (1) NON-20, (2) NON-30, (1) NON-40, (2) NON-60, (1) fuse tester
• Total Fuse Count: 6
• Weight: 0.568 pounds
• UPC: 00051712538787

Standard Information

• Brand: EATON
• Manufacturer Part Number: NON-EK
