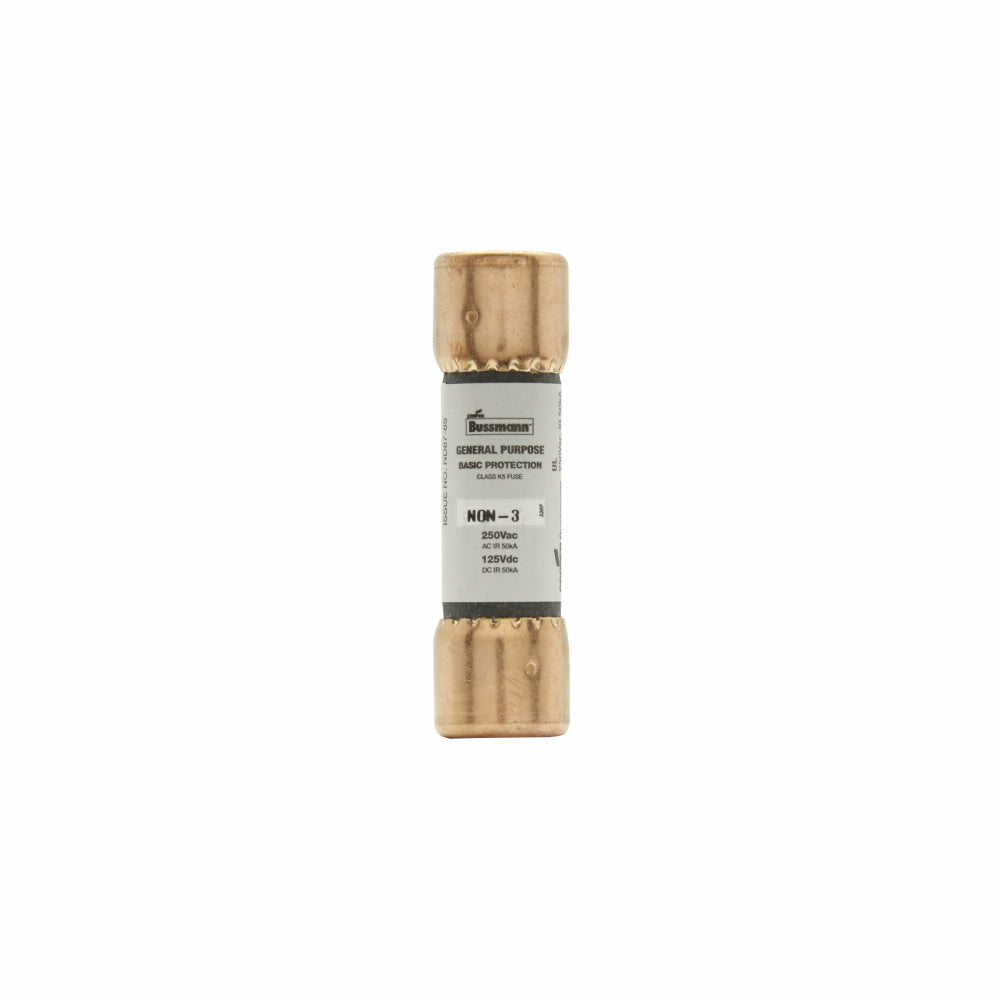

Eaton NON-3 Bussmann BUS 250V Fuse OT3SHW (1)

Product Description

The Eaton NON-3 is a one-time general purpose fast acting fuse designed for use in various electrical applications. With a rated voltage of two hundred fifty volts AC and one hundred twenty-five volts DC, this fuse is built to handle currents up to three amps. It features a cylindrical body type measuring zero point fifty-six inches in diameter and two inches in length, making it suitable for light-duty circuit locations.

• Fast acting and non-current limiting.
• Rated for 50 kAIC interrupt capacity.
• Designed for easy installation in holder mounts.

Product Highlights

This fuse is ideal for protecting lighting and heating circuits, particularly where short circuit currents are low. Its design prevents time delay, making it unsuitable for circuits experiencing large transients.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171230003

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 250 VAC / 125 VDC
• Body Size: 0.56 in Dia x 2 in L
• Body Type: Cylindrical
• Element: Single
• Class: H
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Standards/Approvals: CE Certified, CSA Class 1421-01, UL 248-9
