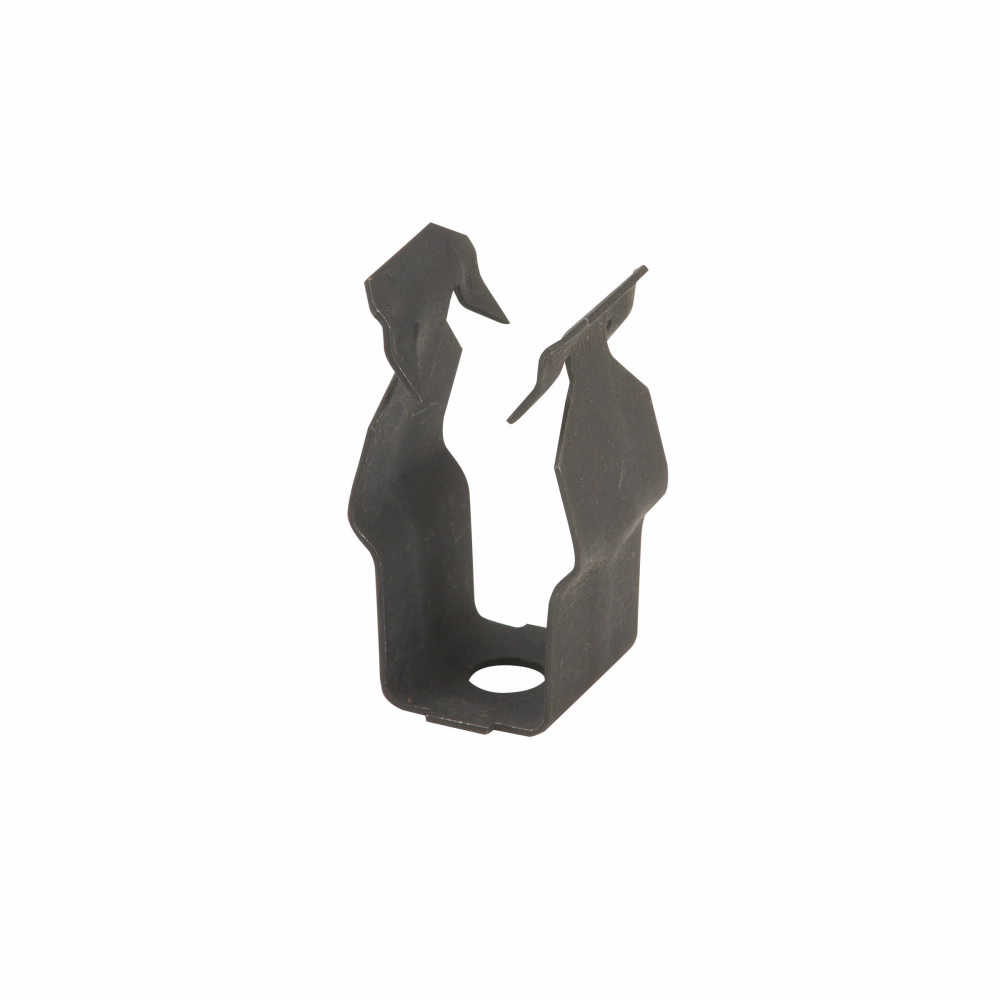

Eaton NBP12 Push-on Conduit Clip 0.75 in Emt Support

Product Description

The EATON NBP12 is a push-type conduit support fastener from the B-Line series, designed to secure electrical conduit to structural surfaces without tools or hardware. It installs with a single push motion and holds conduit firmly in place during and after installation. Rated for 25 pounds vertical and 15 pounds horizontal load capacity, it is suited for 0.75-inch EMT and 0.5-inch IMC or rigid conduit. The compact 1 x 1 x 1 inch footprint and 0.03-pound weight make it practical for high-volume installations. Licensed electricians and electrical contractors install this fastener in commercial and residential conduit runs.

The NBP12 is used wherever conduit must be quickly supported and secured to a surface without screws or straps. Its push-on design speeds installation on straight conduit runs in walls, ceilings, and structural steel in both residential and light commercial electrical work. It is particularly useful in retrofit and new construction scenarios where fast, repeatable conduit support is needed along a run. Compatible conduit types include 0.75-inch EMT, 0.5-inch IMC, and 0.5-inch rigid conduit.

Key Features

• Push-on installation requires no tools, screws, or additional hardware
• 25-pound vertical load capacity for secure conduit retention
• 15-pound horizontal load capacity for side-mounted applications
• Fits 0.75-inch EMT and 0.5-inch IMC or rigid conduit
• Compact 1 x 1 x 1 inch body minimizes clearance requirements
• Lightweight at 0.03 pounds for easy handling in bulk installations

Compatibility

Rated for use with 0.75-inch EMT, 0.5-inch IMC, and 0.5-inch rigid conduit as an OEM-style push-on support fastener for standard electrical conduit installations.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit support spacing and securing. De-energize all circuits in the work area before handling conduit or support hardware. Align the clip with the conduit and press firmly until fully seated. Do not exceed the rated vertical or horizontal load values stated for this fastener.

Technical Specifications

• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.03 pounds
• Compatible Conduit Size (EMT): 0.75 inches
• Compatible Conduit Size (IMC/Rigid): 0.5 inches
• Vertical Load Capacity: 25 pounds
• Horizontal Load Capacity: 15 pounds
• Fastener Type: Push-on clip
• UPC: 781011192051

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBP12
