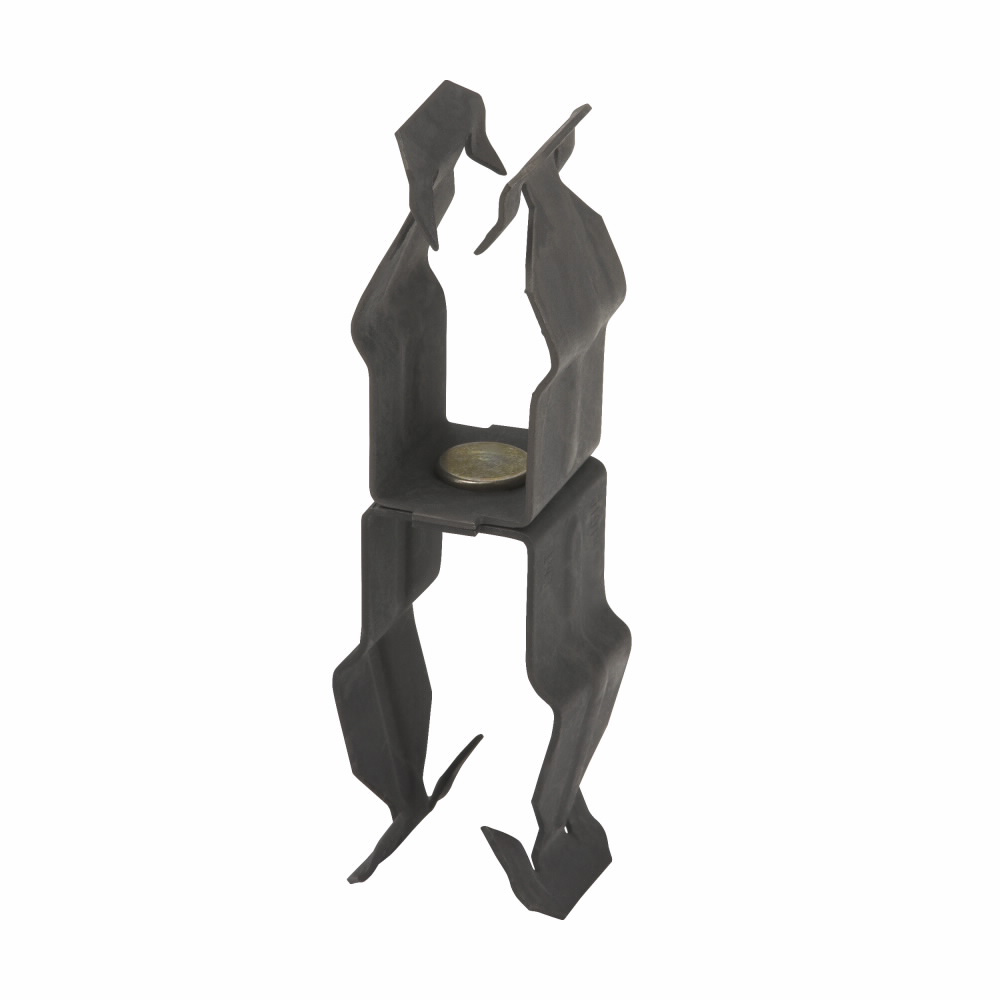

Eaton NBP-8-P-12 Push-in Conduit Clip 0.5-0.75 Inch

Product Description

The EATON NBP-8-P-12 is a push-type conduit-to-conduit support fastener from the B-Line series, designed for securing and organizing conduit and cable runs in electrical installations. This clip installs without tools using a push-in design, making it a fast option for bundling or fastening conduit in panel, raceway, and enclosure work. It supports conduit sizes from 0.5 inches to 0.75 inches and carries a 25-pound load capacity. At 0.057 pounds per unit, the clip has a compact 1-inch height, 1-inch length, and 1-inch width. Licensed electricians and electrical contractors are the typical installers for this type of hardware.

The NBP-8-P-12 is suited for light commercial and residential electrical work where conduit needs to be routed, bundled, or secured to an adjacent conduit without drilling or threading fasteners. The push-in mechanism speeds up installation in high-volume wiring jobs such as panel rough-ins, cable tray sections, and conduit racking. Its small footprint allows use in tight spaces where clamp-style fasteners would not fit.

Key Features

• Push-in installation requires no tools or separate hardware
• Accepts conduit sizes from 0.5 inches to 0.75 inches
• 25-pound load capacity for reliable conduit support
• Compact 1 x 1 x 1 inch body fits tight installations
• Lightweight at 0.057 pounds per clip

Compatibility

Designed as an OEM-style replacement and standard-fit conduit support fastener for conduit and cable applications in the 0.5-inch to 0.75-inch conduit size range.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements for conduit support spacing and methods. De-energize all circuits in the work area before securing or rerouting conduit runs. The push-in clip is designed for hand installation only; do not use impact tools or apply excessive force that could deform the clip body or conduit wall. Verify conduit outside diameter falls within the 0.5-inch to 0.75-inch supported range before installation.

Technical Specifications

• Conduit Size Range: 0.5 inches to 0.75 inches
• Load Capacity: 25 pounds
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.057 pounds
• Fastener Type: Push-type conduit to conduit
• UPC: 781011192952

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBP-8-P-12
