Eaton NBP-16-U-2-4 Conduit to Beam Fastener 0.5 in Emt

Product Description

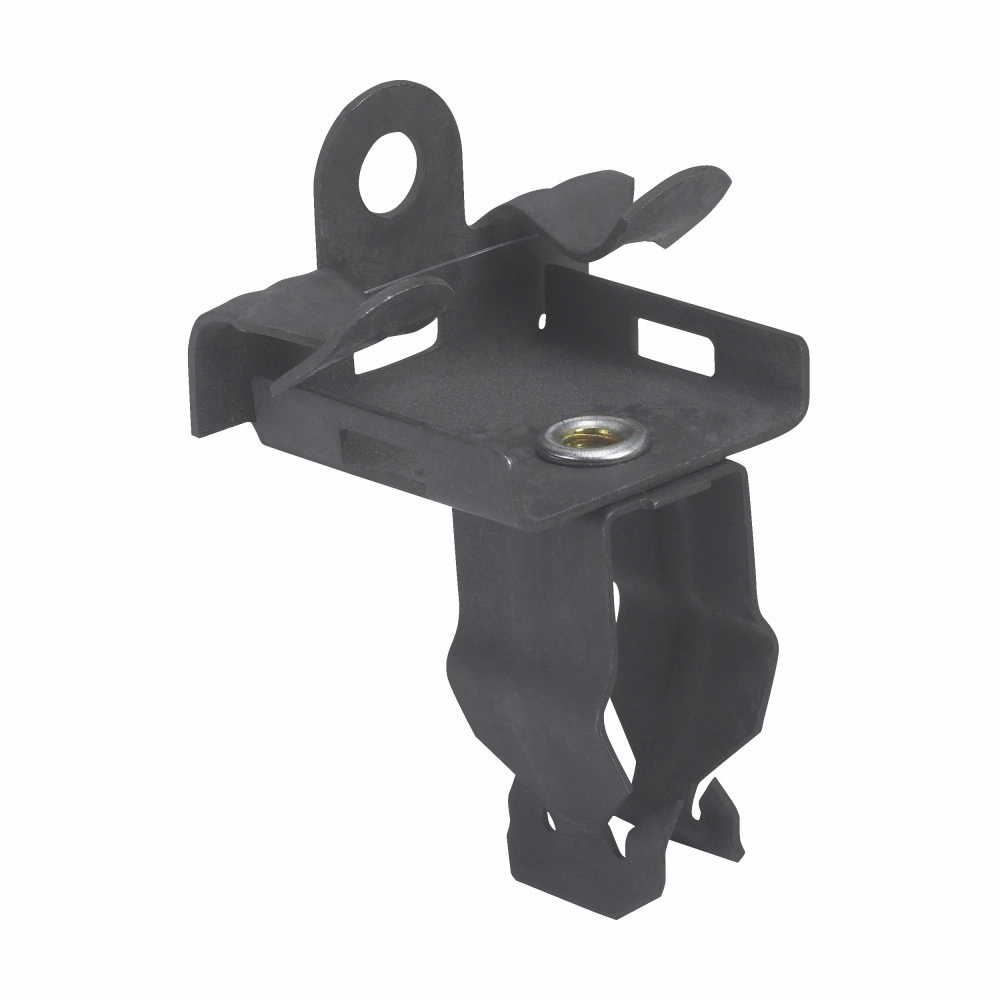

The EATON NBP-16-U-2-4 is a push-type conduit-to-beam fastener from the B-Line series, designed to secure electrical metallic tubing and rigid or MC cable to structural beam flanges without tools or fasteners beyond the clip itself. The unit accepts 0.5 inch EMT conduit and mounts to flange material ranging from 0.13 inches minimum to 0.25 inches maximum thickness. At 0.09 pounds, it is a compact, lightweight support fitting measuring 1 inch in height, 1 inch in length, and 1 inch in width. Electricians use these clips in commercial and industrial settings where conduit runs must be secured to steel beam flanges quickly and reliably.

This fastener is suited for commercial construction, industrial facilities, and retrofit projects where conduit must be routed along structural steel beams. It accommodates 0.5 inch EMT, 0.75 inch rigid conduit, or 0.75 inch MC cable as indicated in the product designation. The push-type design allows for fast installation without drilling or additional hardware, making it a practical choice for overhead conduit runs and tight-schedule rough-in work. It is compatible with beam flanges within the specified 0.13 inch to 0.25 inch thickness range.

Key Features

• Push-type design secures conduit to beam flanges without additional fasteners or drilling
• Accepts 0.5 inch EMT, 0.75 inch rigid conduit, or 0.75 inch MC cable
• Compatible with beam flange thickness from 0.13 inches to 0.25 inches
• Compact form factor: 1 inch height, 1 inch length, 1 inch width
• Lightweight at 0.09 pounds for easy handling during overhead installation

Compatibility

Designed for use with 0.5 inch EMT, 0.75 inch rigid conduit, and 0.75 inch MC cable on structural beam flanges with a thickness between 0.13 inches and 0.25 inches.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit support and securing intervals. De-energize all circuits in the work area before securing conduit near energized equipment. Verify beam flange thickness falls within the 0.13 inch to 0.25 inch range before applying the clip to ensure a secure hold. Do not force the clip onto flanges outside the specified thickness range, as this can result in an unsecured connection.

Technical Specifications

• Conduit Size: 0.5 inches EMT
• Minimum Mount Thickness: 0.13 inches
• Maximum Mount Thickness: 0.25 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.09 pounds
• Mount Type: Beam flange
• Fastener Style: Push-type
• UPC: 781011194901

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBP-16-U-2-4
