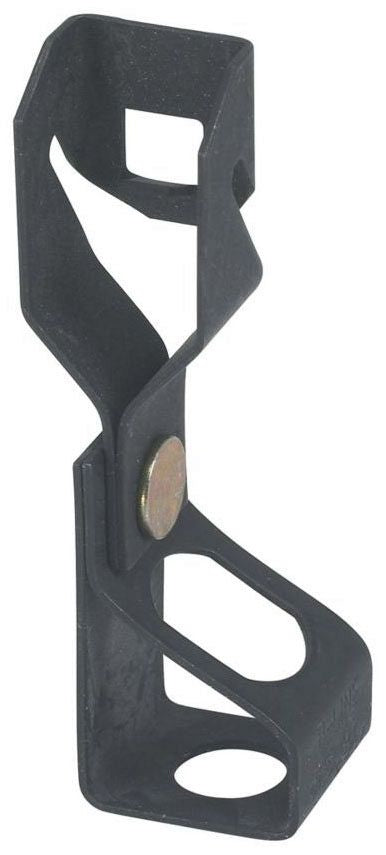

Eaton NBH6-F12 Z Purlin Clip 3/8 Inch Rod Hanger 100 Lb

Product Description

The EATON NBH6-F12 is a Z purlin clip from the B-Line series, designed to secure 3/8-inch threaded rod to structural framing members. It is used in overhead support systems for conduit, pipe, duct, and mechanical equipment. The clip accepts 3/8-inch all-threaded rod and is rated at 100 pounds load capacity. Measuring 1 inch in height, 1 inch in length, and 1 inch in width, it is a compact fastening point that keeps rod runs plumb and on-center. Electricians, plumbers, and mechanical contractors install these clips as part of suspended support assemblies in commercial and industrial construction.

The NBH6-F12 is suited for use on Z-profile purlins commonly found in metal building construction and pre-engineered steel structures. It functions as a universal beam fastener, providing a reliable attachment point for drop-wire and threaded-rod support runs. Typical applications include suspended conduit support systems, mechanical pipe hangers, and ceiling-mounted equipment supports in commercial, industrial, and light manufacturing environments.

Key Features

• Accepts 3/8-inch all-threaded rod for standard support system integration
• Rated at 100 pounds load capacity per clip
• Compact 1 x 1 x 1 inch form factor for tight framing conditions
• Compatible with Z-purlin framing profiles common in metal building construction
• Lightweight at 0.055 pounds, minimizing added dead load to support assemblies

Compatibility

Designed as an OEM-style replacement and standard fitment clip for B-Line series threaded rod and drop-wire support assemblies using 3/8-inch all-threaded rod on Z-purlin framing.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working under applicable building and electrical codes. Confirm that the structural purlin is capable of supporting the intended load before attaching the clip. All-threaded rod should be cut to length and installed plumb. Do not exceed the rated 100-pound load capacity per attachment point.

Technical Specifications

• Rod Size: 3/8 inches
• Load Capacity: 100 pounds
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.055 pounds
• UPC: 781011190804

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBH6-F12
