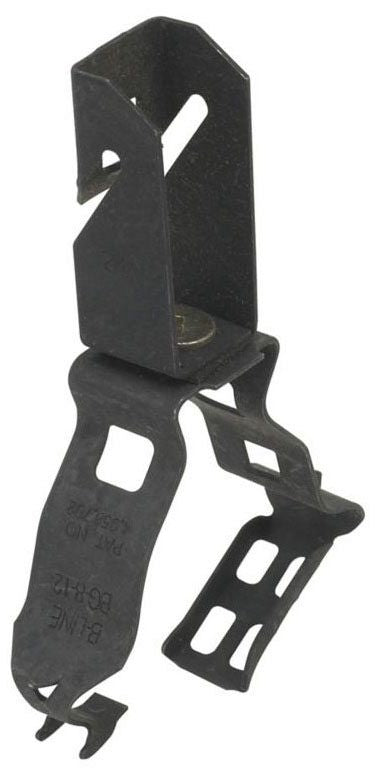

Eaton NBG-8-12-F13 Guide-rite Purlin Clip Conduit Hanger

Product Description

The EATON NBG-8-12-F13 is a Guide-Rite purlin clip conduit hanger from the B-Line series, designed to support and secure electrical conduit in commercial and industrial installations. This fastener handles conduit sizes from 0.5 inches to 0.75 inches and carries a rated load capacity of 100 pounds. Measuring 1 inch in height, 1 inch in length, and 1 inch in width, the clip is compact and suited for mounting directly to purlin flanges where conventional strut or trapeze support is not practical. Licensed electricians and electrical contractors are the primary installers of this type of fitting.

The NBG-8-12-F13 is used in commercial and light industrial electrical rough-in work where conduit runs need to be secured to structural purlins. It is appropriate for both new construction and retrofit applications involving 1/2-inch and 3/4-inch conduit. The clip eliminates the need for drilling or welding to the structural member in typical purlin-flange mounting scenarios, making it a common choice on metal building projects and prefabricated structure installations.

Key Features

• Supports 0.5-inch and 0.75-inch conduit sizes in a single fitting
• 100-pound rated load capacity for reliable conduit support
• Compact 1 x 1 x 1 inch profile fits tight installation spaces
• Guide-Rite fastener design for positive conduit positioning
• Part of the EATON B-Line series conduit support system
• Lightweight at 0.06 pounds for easy handling and bulk installation

Compatibility

Designed as an OEM-style conduit support fastener compatible with 1/2-inch and 3/4-inch conduit, intended for purlin-flange mounting in commercial and industrial electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before installing or adjusting conduit support hardware. Verify that the purlin flange thickness and material are within the fastener's rated engagement range before securing the clip. Do not exceed the 100-pound rated load capacity when planning conduit run support intervals.

Technical Specifications

• Conduit Size: 0.5 inches to 0.75 inches
• Load Capacity: 100 pounds
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.06 pounds
• UPC: 781011185206

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBG-8-12-F13
