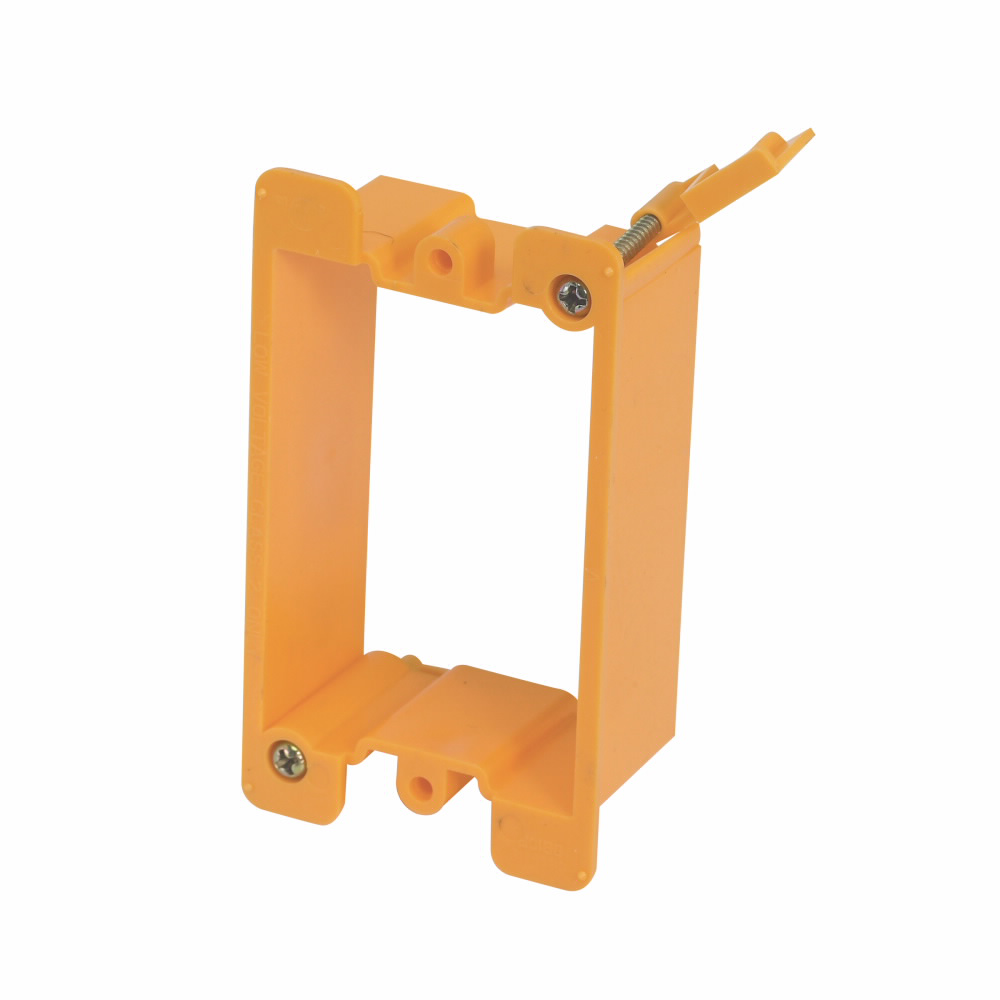

Eaton NBB10P Single Gang Low Voltage Mounting Bracket

Product Description

The EATON NBB10P is a single gang low voltage mounting bracket from the B-Line series datacomm and low voltage support fastener line. It provides a secure attachment base for low voltage outlets and devices in new or retrofit wall installations. Constructed from steel with a plastic cover plate mounting bracket style, this bracket mounts directly to wall studs or existing structure and accommodates drywall up to 0.75 inches in thickness. Electricians and low voltage installers use this bracket when terminating data, audio, video, or other low voltage wiring at the wall plate level.

This bracket is suited for residential and light commercial applications where a single gang low voltage outlet position is required. It is commonly installed during rough-in or finish electrical work alongside structured wiring, keystone jacks, coaxial fittings, and similar datacomm components. The bracket mount style allows for straightforward positioning on standard framing without requiring a traditional electrical box.

Key Features

• Single gang configuration for standard wall outlet positions
• Steel construction provides rigid support for low voltage faceplates and devices
• Bracket mount style eliminates need for a traditional electrical box
• Accepts drywall thickness up to 0.75 inches
• Plastic cover plate mounting bracket style included for clean finish appearance
• Part of the EATON B-Line series datacomm and low voltage support fastener line

Compatibility

Designed as an OEM-style replacement and new-installation bracket for single gang low voltage wall plate applications in residential and light commercial structured wiring systems.

Installation Notes

Installation is typically performed by licensed electricians or low voltage technicians. Ensure all low voltage circuits are de-energized before securing wiring and attaching the cover plate. Mount the bracket to framing or the wall opening per local building codes, confirming drywall thickness does not exceed 0.75 inches for proper clip engagement. Follow applicable NEC low voltage wiring guidelines for the specific device being terminated at the bracket.

Technical Specifications

• Configuration: Single gang
• Material: Steel with plastic cover plate mounting bracket
• Mount Type: Bracket mount
• Maximum Drywall Thickness: 0.75 inches
• Application: Low voltage datacomm and outlet support
• UPC: 782051392357

Standard Information

• Brand: EATON
• Manufacturer Part Number: NBB10P
