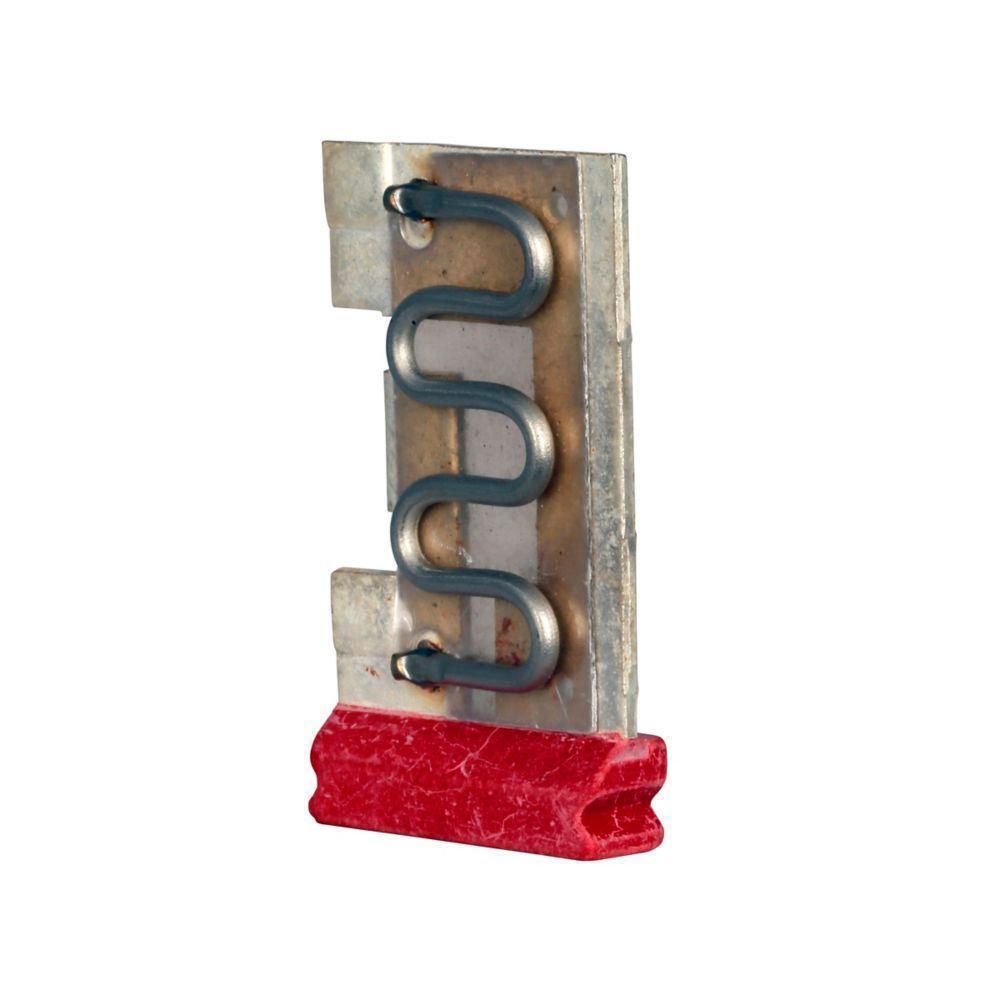

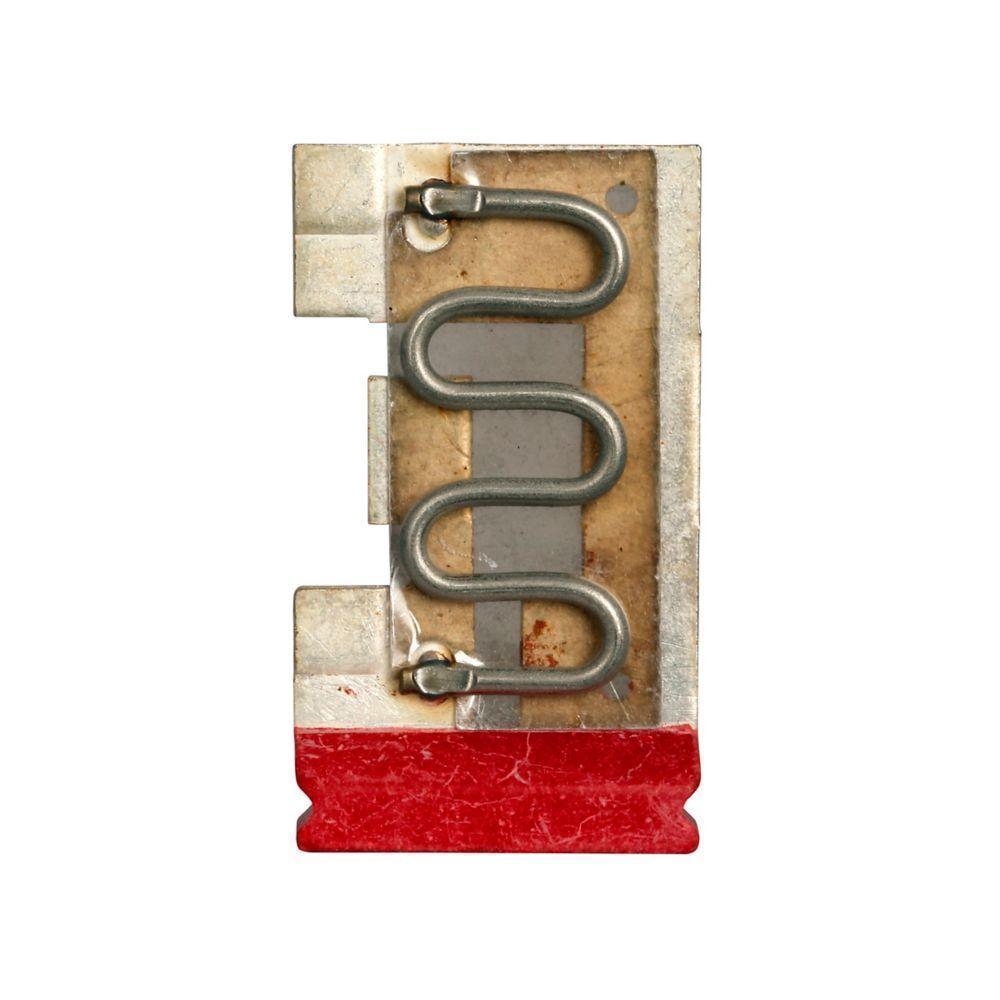

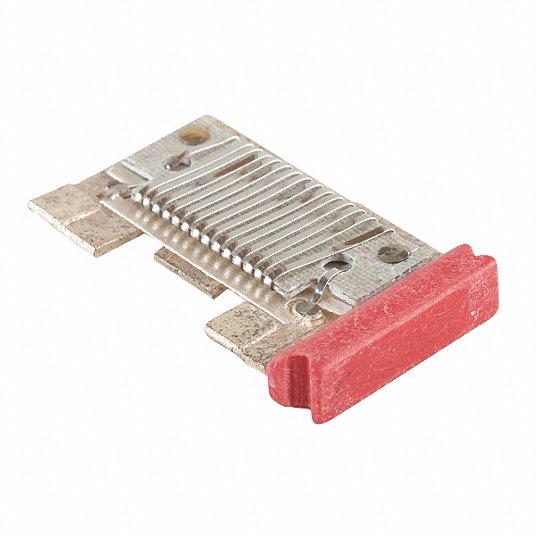

Eaton MSH9-7A MS Heater 7.75-8.46A

Product Description

The Eaton MSH9-7A is a single-phase starter heater designed for MS series starters, with a motor full load current of 7.75 to 8.46A. This thermal unit replaces damaged or worn thermal units in overload relays and protects connected loads from overheating. It breaks the circuit when the current exceeds a threshold.

• Plug-in heater element is keyed for proper positioning.
• Adjustable knob allows setting of +/-10% of the nominal heater rating.
• Protects connected loads from overheating.

Product Highlights

The Eaton MSH9-7A heater ensures proper positioning and protects against overheating with its keyed plug-in design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MSH9-7A
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Single-phase Starter
• Brand: Eaton
• Full Load Current: 7.75 to 8.46 A
• Series: MSH
• Approval: UL, CSA
• Motor FLA: 7.75 to 8.46 Ampere
• Mounting: Plug-In
• Trip Type: Standard
• Used On: MS Series 1-Phase Starter
• Compatible with Series: MS
• Trip Class: 20
• NEMA Size: 1; 3; 4; 5
• Overload Protection Type: Thermal
• Poles: 1
• Amps Range: 7.750 - 8.460
• Standard & Approvals: UL Listed, CSA Certified
• Application: For use with MS series single phase starter
