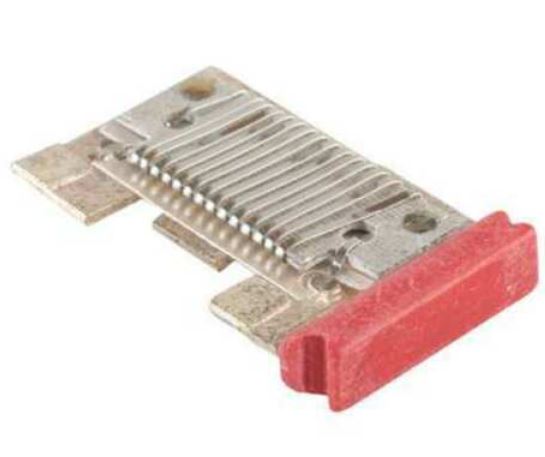

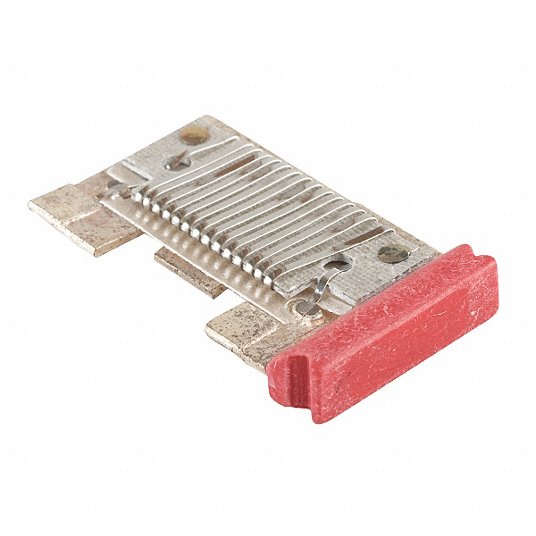

Eaton MSH1-7A Thermal Unit 20 Trip Class

Product Description

The Eaton MSH1-7A thermal units replace damaged or worn thermal units in overload relays. Thermal overloads prompt contactors to break electrical connections with downstream equipment once a set temperature is reached to protect connected loads from overheating and causing damage. They contain either bimetallic strips or melting alloy solder materials.

• Compatible with MS series
• Full Load Current: 1.36 to 1.51 A
• Trip Class: 20

Product Highlights

Thermal units are required components of thermal-type overload relays and should be selected based on the appropriate operating conditions of the motor starter.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MSH1-7A
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: MSH1-7A
• Compatible with Series: MS
• Full Load Current: 1.36 to 1.51 A
• Trip Class: 20
• NEMA Size: 1; 3; 4; 5
• Overload Protection Type: Thermal
• Compatible with Grainger Part Number: 1H385; 1H396; 1H397
• Compatible with Manufacturer Model Number: MST01; MST01AH; MST01DN; MST01DN1P; MST01EH; MST01FN; MST01SN; MST01SN1P; MST02; MST02AH; MST02DN; MST02DN1P; MST02EH; MST02FN1P; MST02RN1PH; MST02SN; MST02SN1P
• UNSPSC: 39121521
• Frame Type: Heater
• Category: Thermal Overload/Heater
