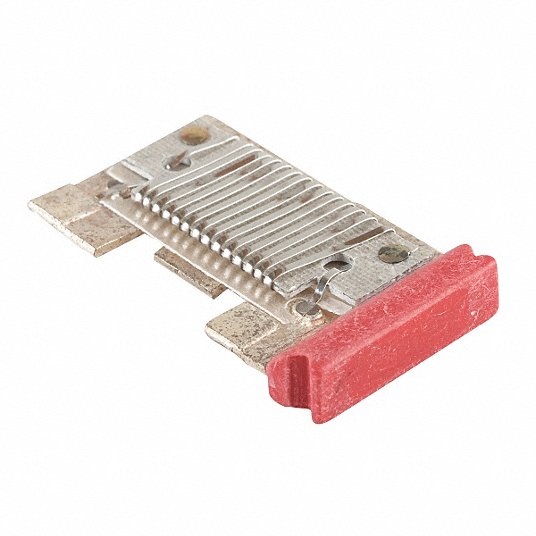

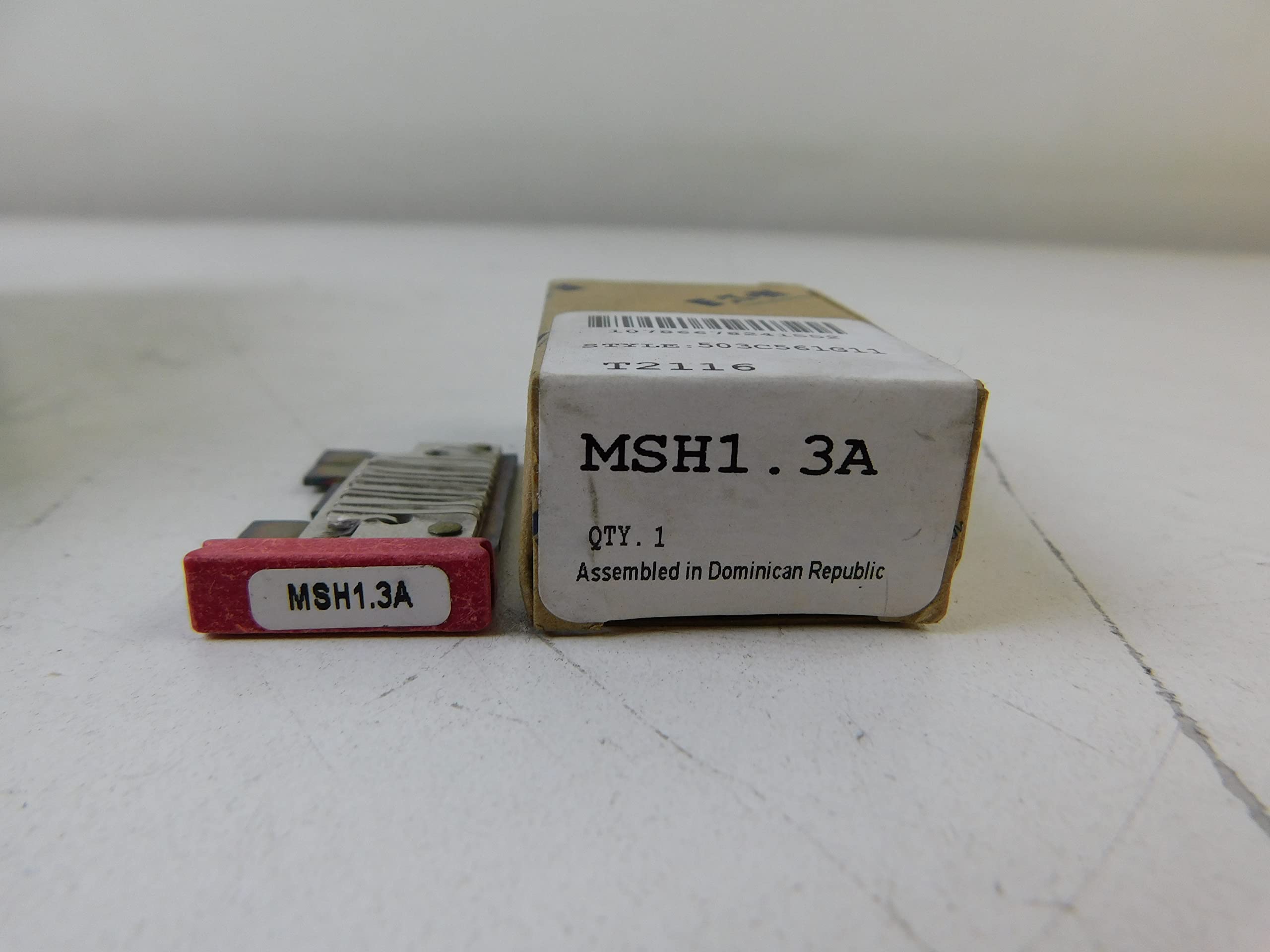

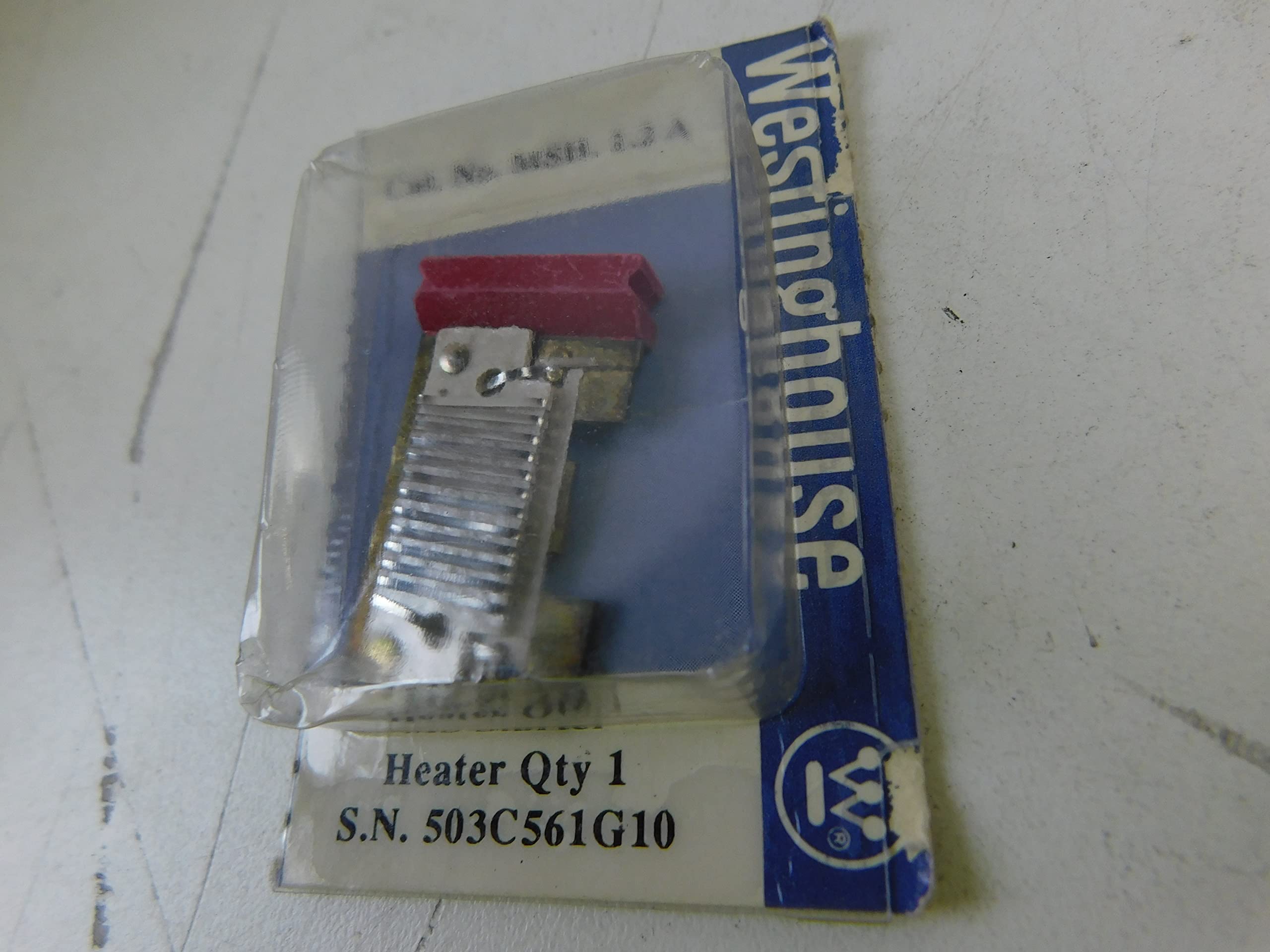

Eaton MSH1-3A Starter Heater Element 1.04 to 1.15 Ampere

Product Description

The EATON MSH1-3A is a thermal unit designed to replace damaged or worn thermal units in overload relays. These thermal overloads prompt contactors to break electrical connections with downstream equipment once a set temperature is reached to protect connected loads from overheating and causing damage.

• Keyed Heater Elements to Ensure Proper Installation
• Thermal Unit

Product Highlights

The EATON MSH1-3A thermal unit is a required component of thermal-type overload relays and should be selected based on the appropriate operating conditions of the motor starter.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MSH1-3A
• Country of Origin: Dominican Republic

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Eaton
• Motor FLA: 1.04 to 1.15 Ampere
• Mounting: Plug-In
• PDW ID: ECL79081
• Product UPC: 786678241555
• Trip Type: Standard
• Used On: MS Series 1-Phase Starter
• MPN: MSH1-3A
• Brand: EATON
• Product Type: ELECTRONIC_COMPONENT
• Compatible with Series: MS
• Full Load Current: 1.04 to 1.15 A
• Trip Class: 20
• NEMA Size: 1; 3; 4; 5
• Overload Protection Type: Thermal
• Compatible with Grainger Part Number: 1H385; 1H396; 1H397
• Compatible with Manufacturer Model Number: MST01; MST01AH; MST01DN; MST01DN1P; MST01EH; MST01FN; MST01SN; MST01SN1P; MST02; MST02AH; MST02DN; MST02DN1P; MST02EH; MST02FN1P; MST02RN1PH; MST02SN; MST02SN1P
• UNSPSC: 39121521
• Manufacturer: Eaton
• Frame Type: Heater
• Model: MSH1-3A
• California Prop 65 Warning: N
• Country of Origin: DO
• Features: Thermal Unit, Trip Class 20, Overload Protection Type Thermal, Fu
• Voltage: N/A
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
