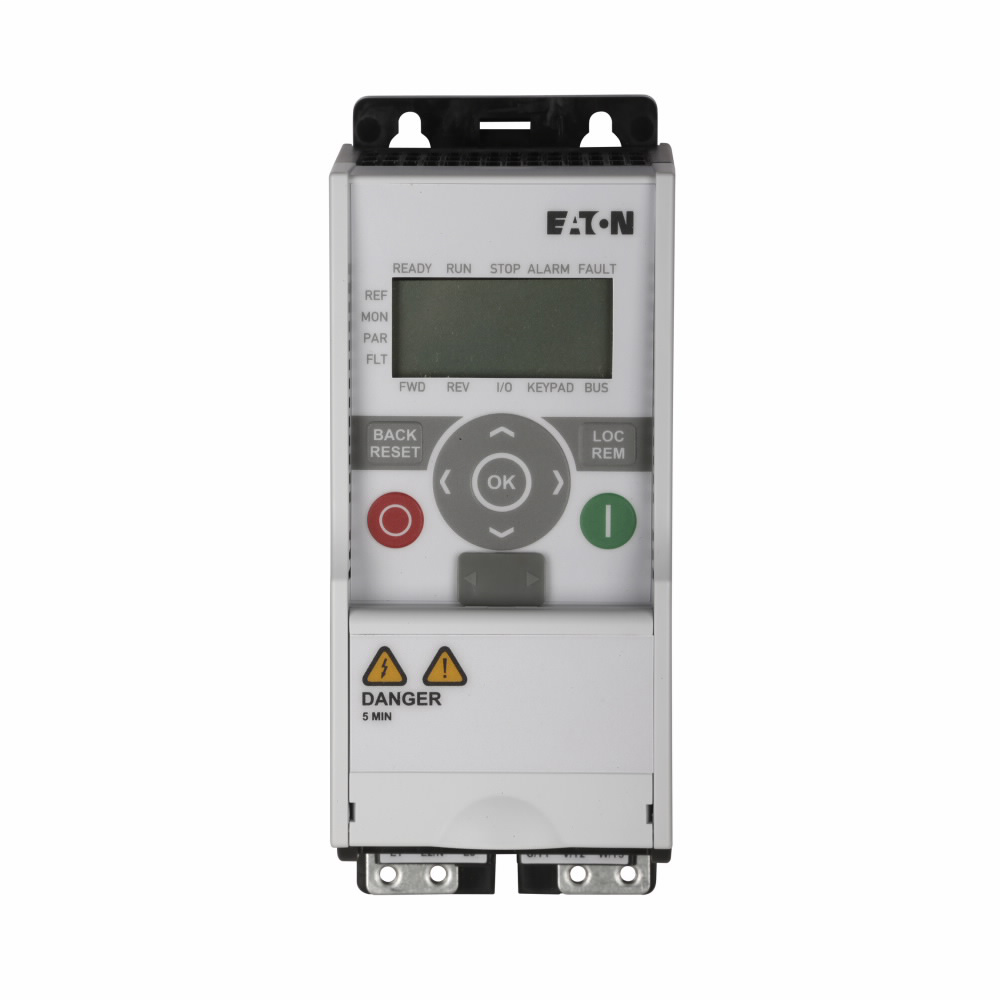

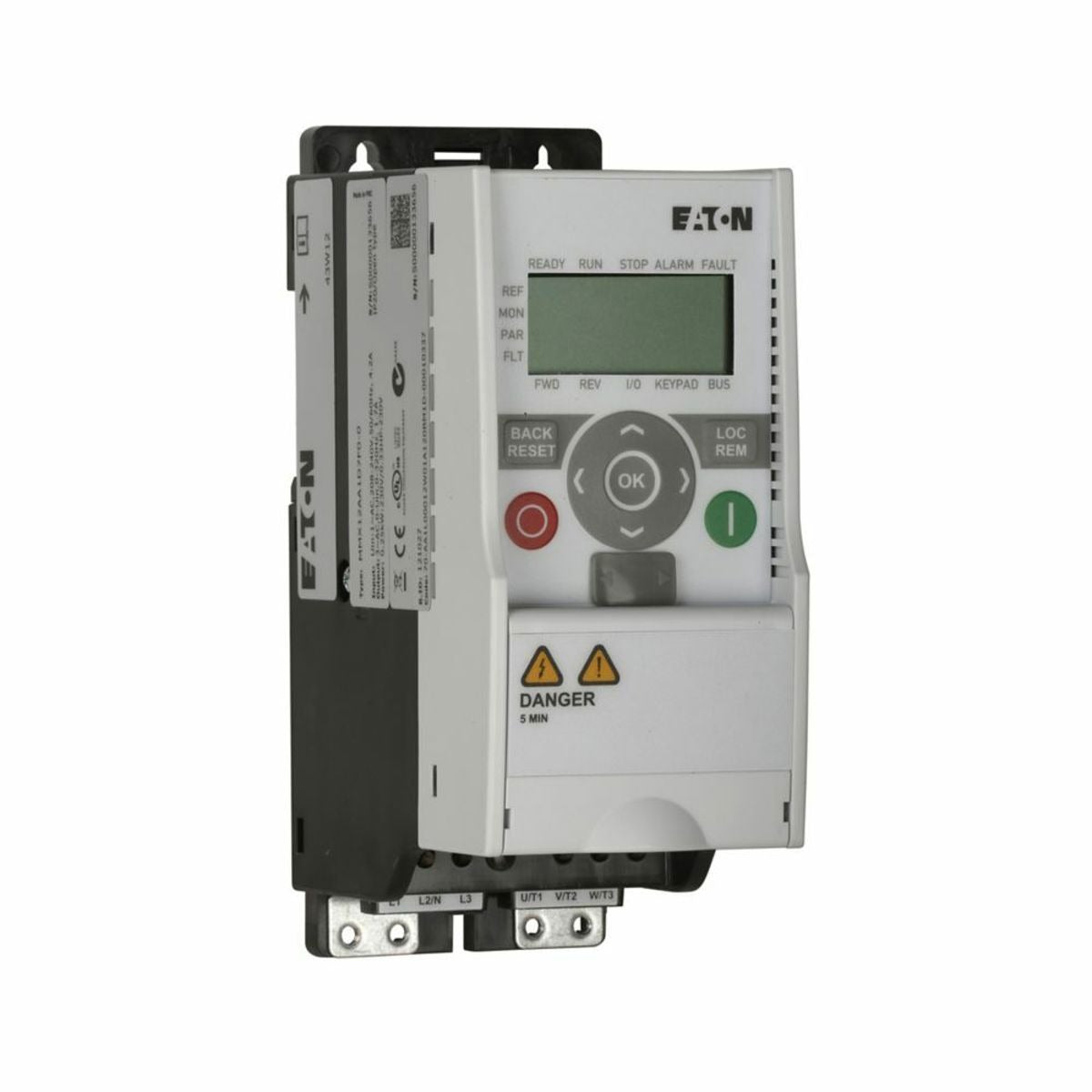

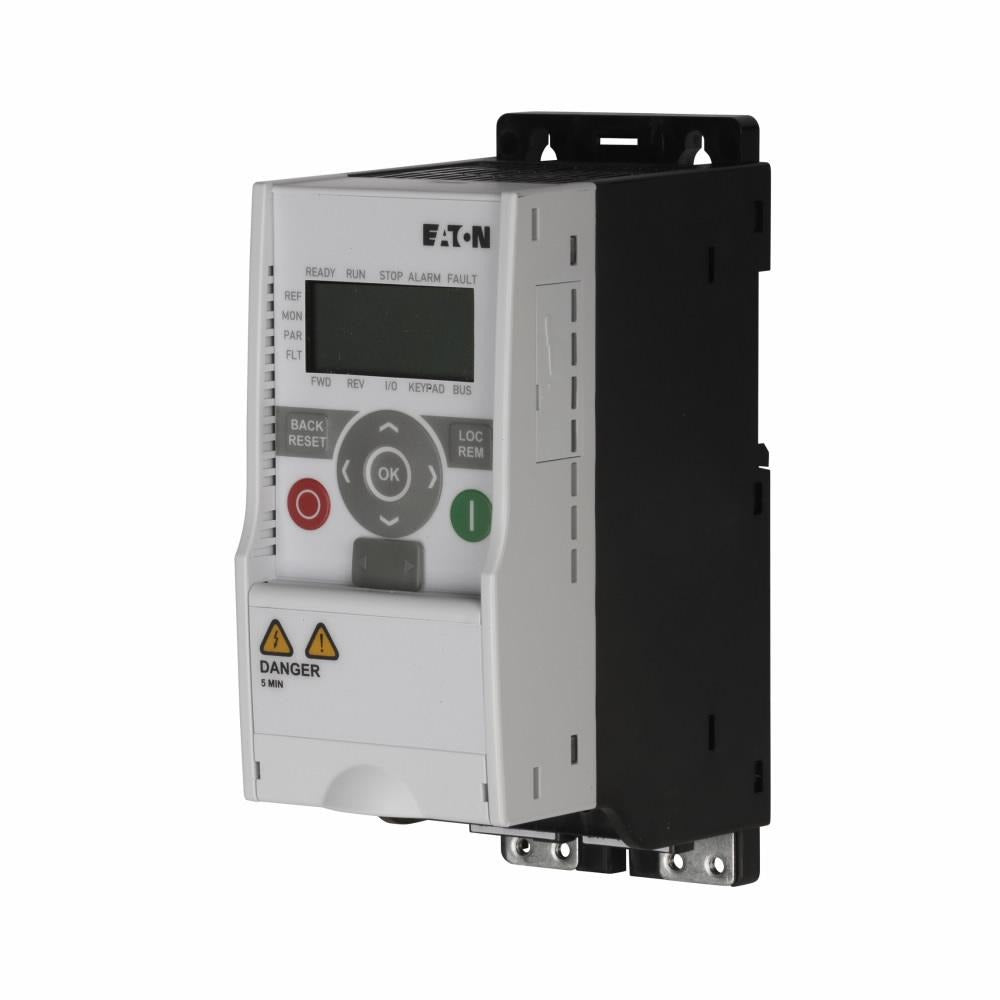

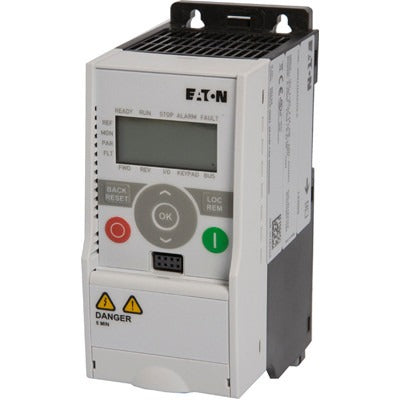

Eaton MMX34AA1D3F0-0 M-Max Series Adjustable Frequency AC Drive 0.5 hp (FS1 frame)

EATON
Brand: EATON
SKU: MMX34AA1D3F0-0
Availability: In Stock

Ships same day if ordered by 12 pm
$662.70
$662.70
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton MMX34AA1D3F0-0 is an M-Max series sensorless vector adjustable frequency AC drive rated 0.5 hp for three-phase in / three-phase out motor control. The unit supports 380–480 V AC input, provides 1.3 A continuous output (2.2 A input), and includes an integrated EMC filter in an IP20 (FS1) enclosure. Typical applications include material handling, HVAC, pumping, and general machinery requiring compact VFDs.

  • Rated input voltage: 380–480 V AC (three-phase); output current 1.3 A, input current 2.2 A
  • Sensorless vector control, AA software full version, integrated EMC filter, IP20 enclosure (FS1)
  • Compact dimensions with DIN rail or threaded mounting; conforms to UL, EN 61800, CE and RoHS standards

Product Highlights

0.5 hp sensorless vector VFD, 380–480 V AC, 1.3 A output, IP20 FS1 enclosure, integrated EMC filter

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: MMX34AA1D3F0-0
  • Country of Origin: China
Technical Specifications
Brand
Eaton
Manufacturer Part Number
MMX34AA1D3F0-0
Series
M-Max
Product Name
M-Max series adjustable frequency AC drive (sensorless vector)
Type
Sensorless vector adjustable frequency drive (Basic controller, full version)
Horsepower
0.5 hp
Power (kW)
0.37 kW
Input Voltage
380-480 V AC (460 V nominal)
Input Phase
Three-phase
Output Phase
Three-phase
Output Current
1.3 A (continuous)
Input Current
2.2 A
Enclosure Rating
IP20 (NEMA 0)
Frame
FS1 (FR1)
Mounting Type
DIN rail or threaded
Dimensions (Width x Depth x Height)
6.16 in x 2.58 in x 3.88 in
Weight
1.21 lb
Software / Version
AA software design series (full version)
EMC Filter
Integrated EMC filter
Ambient Temperature Rating
50°C (rated)
Special Features
Conformal board coating, sensorless vector control, PID controller, temperature controlled fan, simple programming
Country of Origin
China
Certifications
UL Listed; cUL Certified; EN 61800-3; EN 61800-5-1; EN 60204-1; CE Marked; C-Tick Compliant; RoHS Compliant; EMC Category C2/C3/C4 (with internal RFI filter option)
