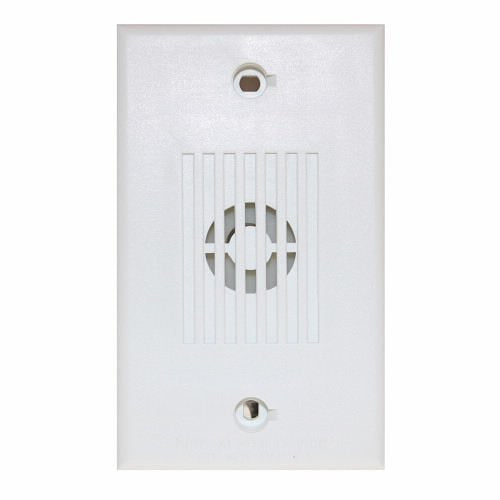

Eaton MIZ-24S-W Mini Horn Wall 24V Temporal or Continuous Indoor White

Product Description

Eaton MIZ-24S-W is a compact, high-output mini horn designed for reliable performance in indoor environments. Ideal for fire safety applications, this device connects directly to fire alarm control panels, offering versatile tone settings.

• Selectable tones: Temporal (Code 3) or Continuous
• Compatible with Wheelock synchronization modules and power supplies
• Low current draw and high decibel output

Product Highlights

Featuring a straightforward installation process, the MIZ-24S-W mounts to any standard single-gang box without needing a trim plate. It supports fast connections with In/Out screw terminals accommodating #12 to #18 AWG wire sizes.

Product Information

Standard Information

• Color: White
• Sound Emission: 90 dB
• Mount Type: Surface mount

Technical Specifications

• Input Voltage: 24V DC
• Approvals: UL Standard 464, CSFM, FM, NYC MEA
• Operating Temperature: 32 to 120 degrees Fahrenheit
• Humidity Tolerance: Up to 93% RH
• Warranty: 3 year
