Eaton MDQ-6 Bussmann Series Small Dimension Fuse 6 A (1/4 in x 1-1/4 in)

Product Description

Eaton MDQ-6 is a Bussmann MDQ series dual-element, time-delay fuse rated 6 A at 250 VAC and 32 VDC. The glass cylindrical cartridge (0.25 in x 1.25 in) has ferrule terminals for clip/holder mounting and provides an interrupting rating of 200 A at rated voltage. Response characteristics are 60 minute maximum at 135% and 120 second maximum at 200%, suited for electronic relay and control circuit protection.

• Dual-element, time-delay design; 6 A current rating; 250 VAC / 32 VDC voltage ratings

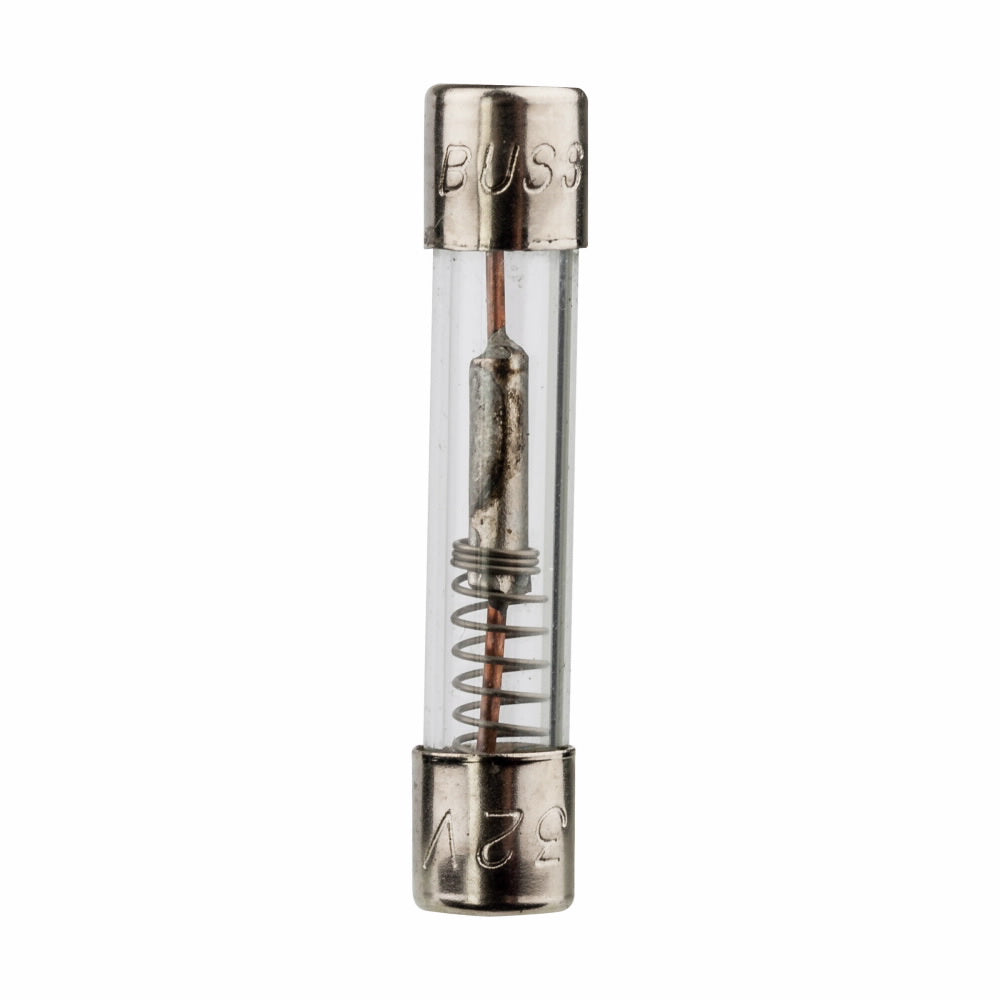

• Glass cylindrical cartridge 0.25 in x 1.25 in with ferrule terminals for clip/holder mounting (3AB/3AG)
• Interrupting rating 200 A at rated voltage; response: 60 min max @ 135%, 120 s max @ 200%; UL and CSA approvals

Product Highlights

Dual-element time-delay cartridge fuse for electronic relay and control circuits; 6 A, 250 VAC/32 VDC; 0.25 in x 1.25 in glass body with ferrule ends; 200 A interrupting rating.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDQ-6

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: MDQ-6
• Series: MDQ
• Type: Dual-element time-delay (slow blow) fuse
• Current Rating: 6 A
• Voltage Rating (AC): 250 VAC
• Voltage Rating (DC): 32 VDC
• Interrupting Rating: 200 A at rated voltage
• Body Size: 0.25 in diameter x 1.25 in length (6.35 mm x 31.75 mm)
• Body Type: Cylindrical glass cartridge
• Material: Glass
• Terminal Type: Ferrule terminals
• End Type: Ferrule
• Mounting Type: Clip/Holder (requires 3AB or 3AG holder)
• Response Time: 60 minute maximum at 135%; 120 second maximum at 200%
• Indicating: Non-indicating
• Rejection: Non-rejection
• Application: Electronic relay and control circuits
• Standards/Approvals: UL 248-14 (Guide No. JDYX File No. E19180); CSA (File No. 47233 Class 1422-01)
• Fuse Package / Case: 3AB, 3AG (1/4 in x 1-1/4 in)
• Fuse Type: Cartridge, glass
• Response Characteristic: Time-delay (dual-element)
