Eaton MDQ-5 MDQ5 BUS 250V SMALL DIM FUSE (5)

Product Description

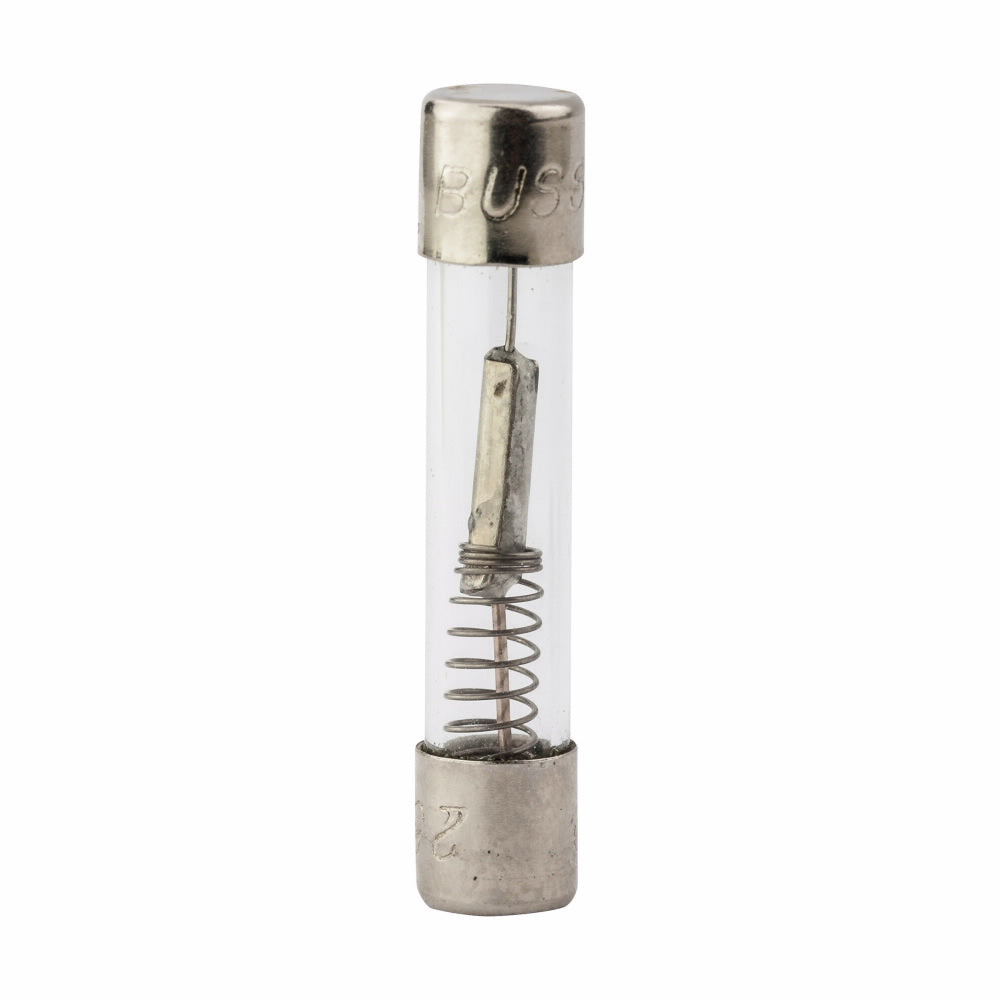

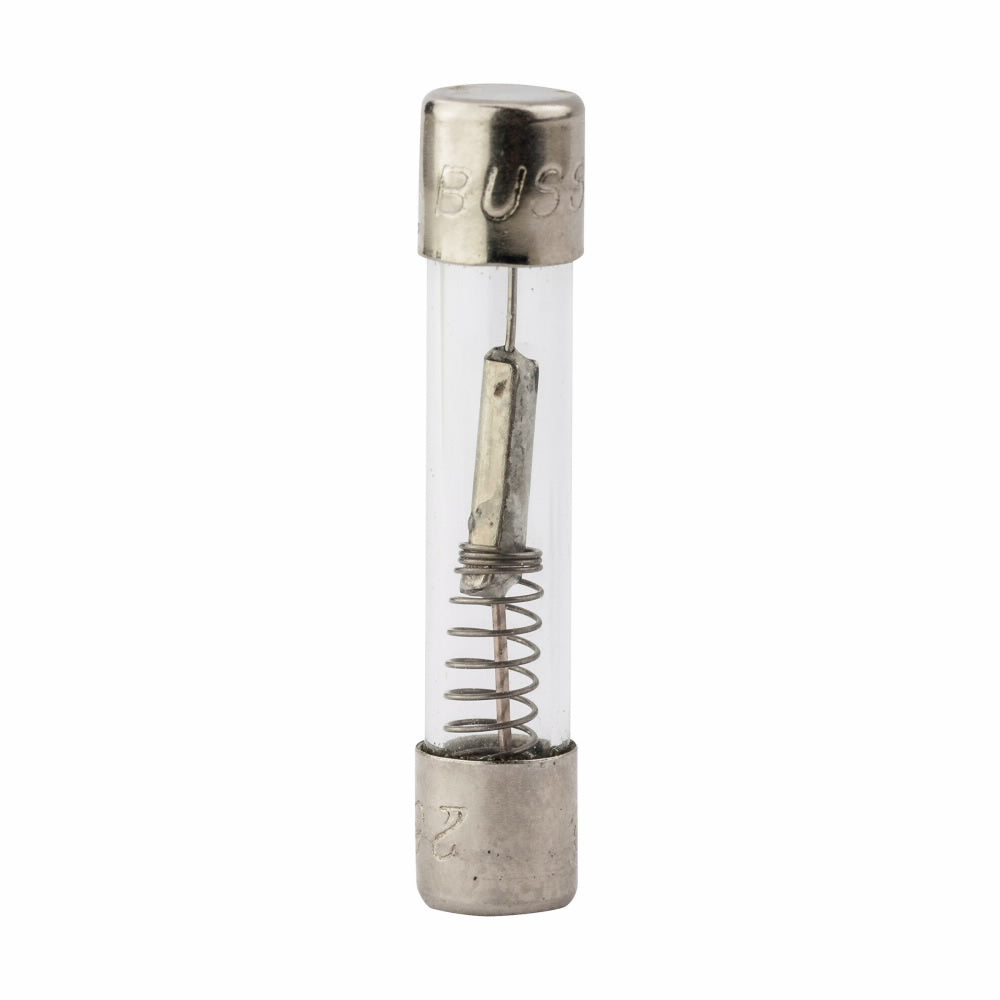

The Eaton MDQ-5 is a time delay fuse designed for reliable use in electronic relay and control circuit applications. This fuse offers a current rating of five amperes and a voltage rating of two hundred fifty volts AC. It features a cylindrical body and is constructed with a dual element made from glass. Ideal for applications that require consistent performance and protection against overloads.

• Rated voltage of two hundred fifty volts AC
• Response time of sixty minutes at one hundred thirty-five percent and one hundred twenty seconds at two hundred percent
• Cylindrical shape with a ferrule terminal for mounting

Product Highlights

Time delay fuses help prevent nuisance blowing during temporary overloads.

Product Information

Standard Information

• Category: Electrical > Fuses, Blocks & Holders > Fuses Special Purpose > Time Delay Fuses
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 5 A
• Application: Electronic Relay and Control Circuit Applications
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Element: Dual
• Indicating: Non-Indicating
• Manufacturer Part Number: MDQ-5
• Material: Glass
• Mounting Type: Clip/Holder
• Rejection: Non-Rejection
• Response Time: 60 min, 120 s
• Series: MDQ
• Standards/Approvals: UL 248-14 Guide No. JDYX File No. E19180|CSA File No. 47233 Class 1422-01
• Terminal Type: Ferrule
• Type: Electronic Small Dimension
• Voltage Rating: 250 VAC
