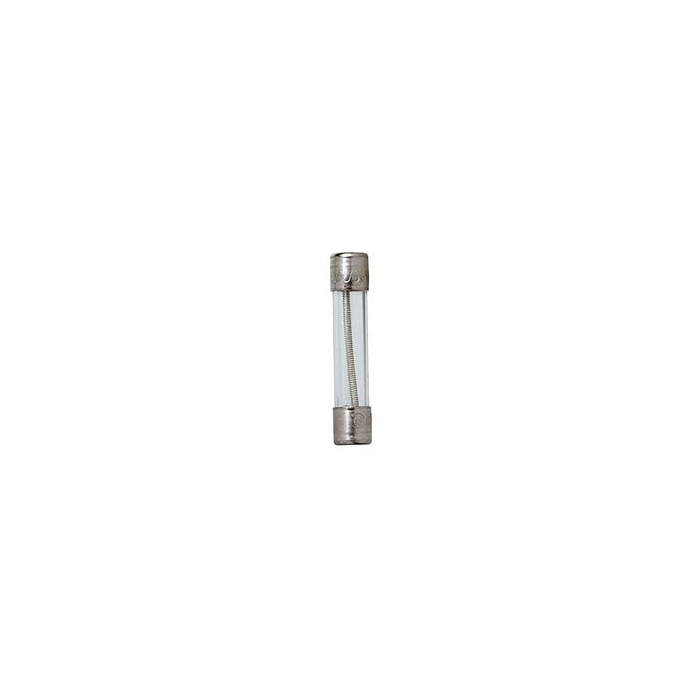

Eaton MDL6/10-R MDL 6/10 amp 250V glass fuse 1/4 inch x 1 1/4 inch

Product Description

The EATON MDL6/10-R is a 6/10 Amp, 250V glass tube fuse designed for circuit protection. This time delay fuse features nickel-plated bronze endcaps and a physical size of 1/4 inch x 1 1/4 inch. It has an AC voltage rating of 250V and an interrupting rating of 35 AIC at 250 VAC. This UL Listed product meets standard 248-14, ensuring compliance for various electrical applications.

• Time delay characteristics for controlled circuit protection.
• Durable glass tube construction with nickel-plated endcaps.
• UL Listed and CSA Certified for safety and compliance.

Product Highlights

Time delay glass tube fuse with 250V rating and UL/CSA certifications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDL6/10-R

Technical Specifications

• Amperage: 6/10 Amp
• Voltage Rating: 250V AC
• Fuse Type: Glass Tube, Time Delay
• Endcap Material: Nickel-plated bronze/brass
• Physical Size: 1/4 inch x 1 1/4 inch
• Interrupting Rating (250 VAC): 35 AIC
• Interrupting Rating (125 VAC): 10,000 AIC
• UL Standard: 248-14
• UL Listed Card: MDL 1/16 - 8A (Guide JDYX, File E19180)
• UL Recognized Card: MDL 9 - 30A (Guide JDYX2, File E19180)
• CSA Certification Card: MDL 1/16 - 8A (Class No. 1422-01)
• CSA Component Acceptance: MDL 9-30A (Class No. 1422-30)
• SKU: MDL-6/10-R
• Category: Circuit Protection, Fuses
• Manufacturer: Eaton - Electronics Division
• Series: MDL
• Response Time: Slow Blow
• Mounting Type: Requires Holder
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
