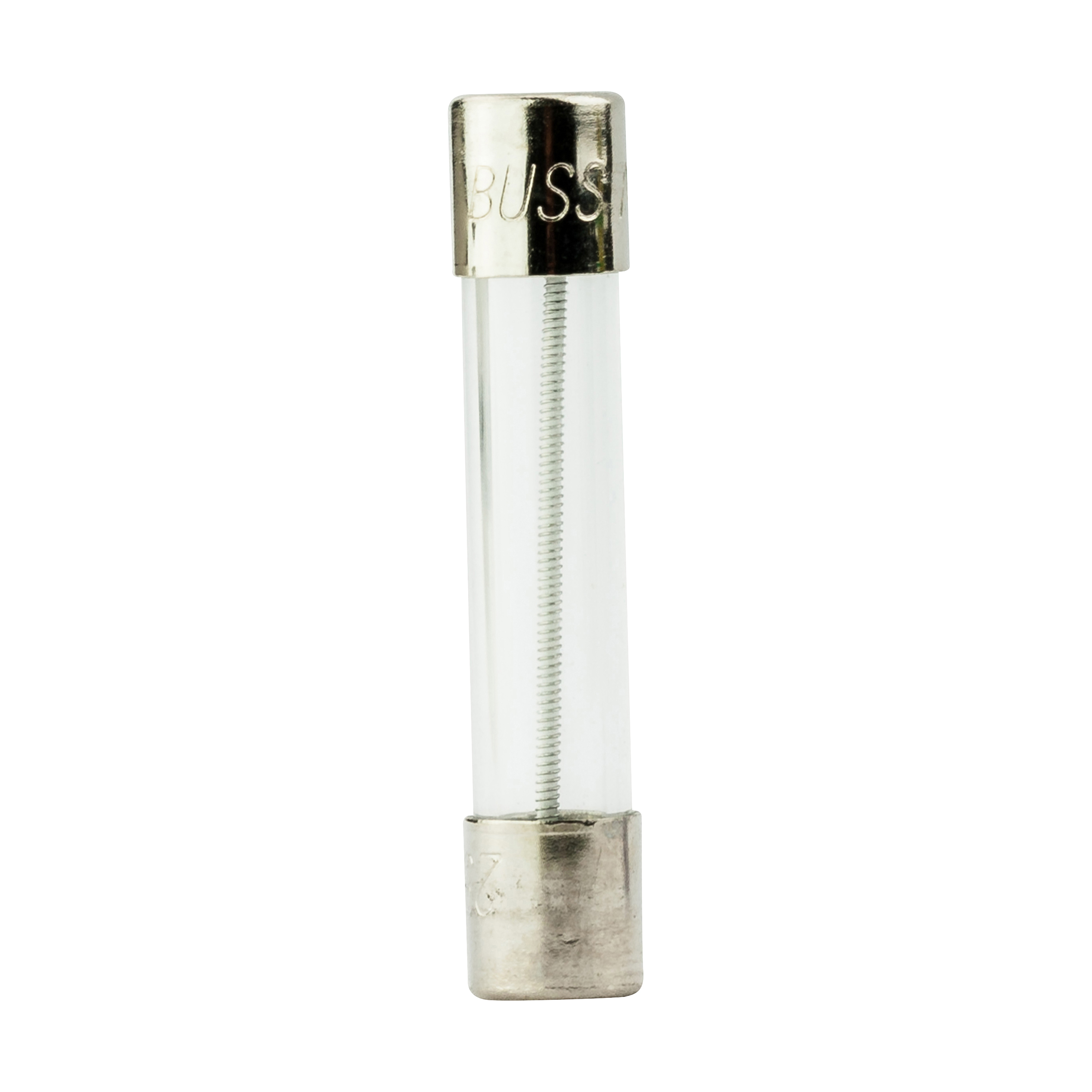

Eaton MDL2/10-R Time-delay Fuse 250V

Product Description

The EATON MDL2/10-R is a time-delay fuse rated for 250 volts in a small-dimension form factor. Time-delay fuses are designed to withstand brief inrush currents without opening, making them well suited for motor and transformer circuits where startup loads exceed steady-state operating levels. This fuse is used in control panels, equipment protection circuits, and light industrial applications. Licensed electricians and HVAC technicians install this type of fuse as a replacement or service component in fused disconnect switches and equipment panels.

The MDL2/10-R fits applications requiring a small-dimension time-delay fuse rated at 250 volts. It is commonly used in residential and light commercial HVAC control circuits, instrumentation panels, and motor control equipment where overload protection with controlled time-delay characteristics is required. Its compact size suits equipment with limited panel space.

Key Features

• Time-delay design tolerates motor inrush and transformer startup surges without nuisance opening
• 250-volt rating suitable for residential and light commercial control circuit applications
• Small-dimension form factor fits space-constrained equipment panels and fused disconnects
• OEM-grade Bussmann series construction for reliable overload and short-circuit protection

Compatibility

Designed as an OEM-style replacement small-dimension time-delay fuse for use in 250-volt-rated fused equipment panels and disconnect switches requiring MDL-series fusing.

Installation Notes

Installation of branch-circuit and control-circuit fuses must follow applicable NEC requirements and should be performed by a licensed electrician or qualified HVAC technician. Always de-energize and lock out the circuit before removing or installing a fuse. Verify that the replacement fuse amperage and voltage ratings match the equipment nameplate before installing. Never install a fuse with a higher amperage rating than specified by the equipment manufacturer.

Technical Specifications

• Voltage Rating: 250 volts
• Fuse Type: Time-Delay
• Form Factor: Small Dimension
• UPC: 051712724333

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDL2/10-R
