Eaton MDL1-6/10-R MDL glass fuse 1 6/10 amp 250V 1/4 x 1 1/4 inch

Product Description

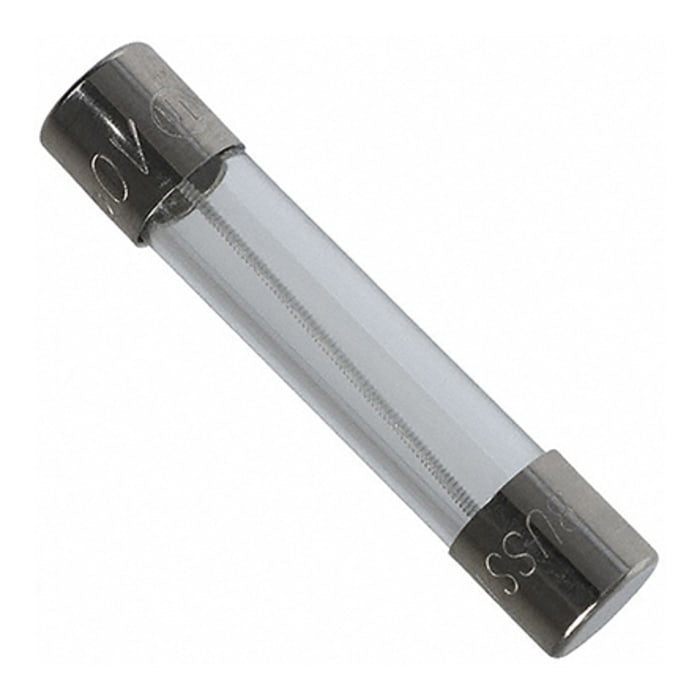

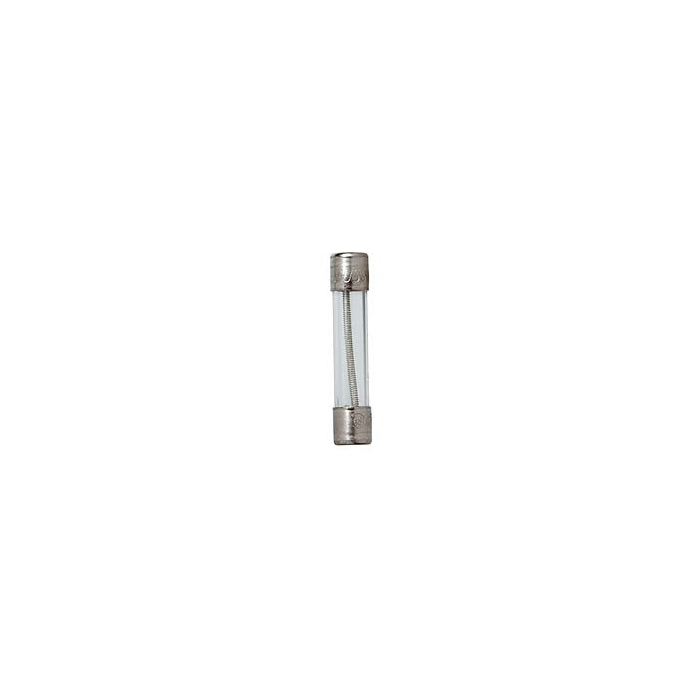

The EATON MDL1-6/10-R is a time-delay glass tube fuse designed for circuit protection. This fuse features a 1 6/10 Amp current rating and a 250 Volts AC voltage rating. It has a physical size of 1/4" x 1 1/4" and is constructed with a glass tube and nickel-plated bronze endcaps. It is suitable for electronic circuits and provides an interrupting rating of 100 AIC at 250 VAC. This fuse is UL Listed and meets standard 248-14.

• 1 6/10 Amps, 250 Volts AC rating.
• Glass tube, time-delay fuse with nickel-plated bronze endcaps.
• UL Listed and CSA Certified, meeting standard 248-14.

Product Highlights

Time-delay glass tube fuse for circuit protection in electronic applications, featuring UL and CSA certifications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDL1-6/10-R
• Country of Origin: Taiwan

Technical Specifications

• Current Rating: 1.6 A
• Fuse Type: Glass Tube, Time Delay
• Endcap Material: Nickel-plated bronze
• Interrupting Rating (250VAC): 100 AIC
• Interrupting Rating (125VAC): 10,000 AIC
• UL Standard: 248-14
• UL Listed: MDL 1/16 - 8A (Guide JDYX, File E19180)
• UL Recognized: MDL 9 - 30A (Guide JDYX2, File E19180)
• CSA Certification: MDL 1/16 - 8A (Class No. 1422-01)
• CSA Component Acceptance: MDL 9-30A (Class No. 1422-30)
• Category: Circuit Protection
• Series: MDL
• Packaging: Bulk
• Response Time: Slow Blow
• Package / Case: 3AB, 3AG
• Mounting Type: Requires Holder
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.10.0020
• REACH Status: REACH Unaffected
• UNSPSC: 39121607
• Application: Electronic circuits
• Material: Glass Tube
• Use With: out axial leads
• Rated Voltage: 250V ac/32V dc
• Response Time Details: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Product Type: Cartridge Fuse
• Fuse Speed: T
• Standards/Approvals: CSA, RoHS, UL
