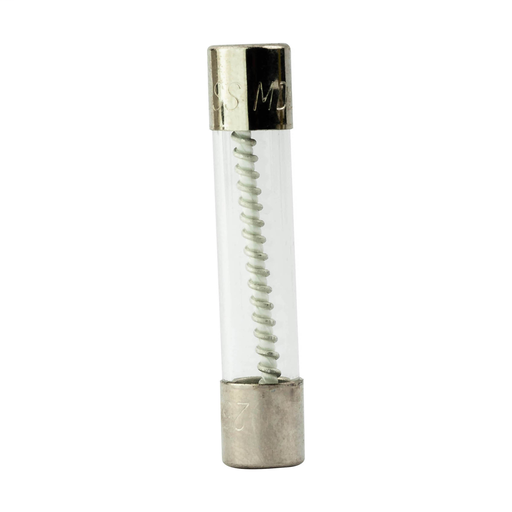

Eaton MDL-40 Time-Delay Glass Fuse 40A 32V (3AG 1/4 x 1-1/4 in)

Product Description

Eaton MDL-40 is a time-delay (slow-blow) glass cartridge fuse rated 40 A and 32 V, sized 3AG (1/4 x 1-1/4 in). It provides overcurrent protection while tolerating short-duration inrush currents, suitable for electronic circuits, appliances, and consumer equipment. Construction includes a glass tube body with ferrule ends and nickel-plated brass end caps; some versions offer axial leads and RoHS options.

• Time-delay (slow-blow) glass cartridge fuse, 40 A, 32 V, 3AG (1/4 x 1-1/4 in)
• Ferrule end connections with nickel-plated brass end caps; optional axial leads available
• Meets UL and CSA standards (also listed to E2186 and CE where specified); 1,000 A interrupt rating at 32 V

Product Highlights

Miniature time-delay glass fuse for electronic circuits and appliances; 40 A, 32 V, 3AG cartridge with ferrule ends and standard approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDL-40
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer: Eaton (Bussmann series)
• Manufacturer Part Number: MDL-40
• Series: MDL
• Fuse Type: Time-delay (slow-blow) glass cartridge
• Current Rating: 40 A
• Rated Voltage: 32 V
• Interrupt Rating: 1,000 A @ 32 V
• Dimensions: 1/4 x 1-1/4 in (6.35 mm x 31.75 mm)
• Size: 3AG (1/4 x 1-1/4 in)
• Mounting Type: Requires holder (3AG / 1/4 x 1-1/4 in)
• End Type: Ferrule end x ferrule end; nickel-plated brass end caps
• Material: Glass tube; nickel-plated brass end caps
• Approvals: UL, CSA, E2186, CE (where specified)
• RoHS: Versions available
• Application: Electronic circuits; appliances and consumer electronic equipment
• Package Type: Cartridge
• Country of Origin: MX (Mexico)
• Optional Features: Optional axial leads
