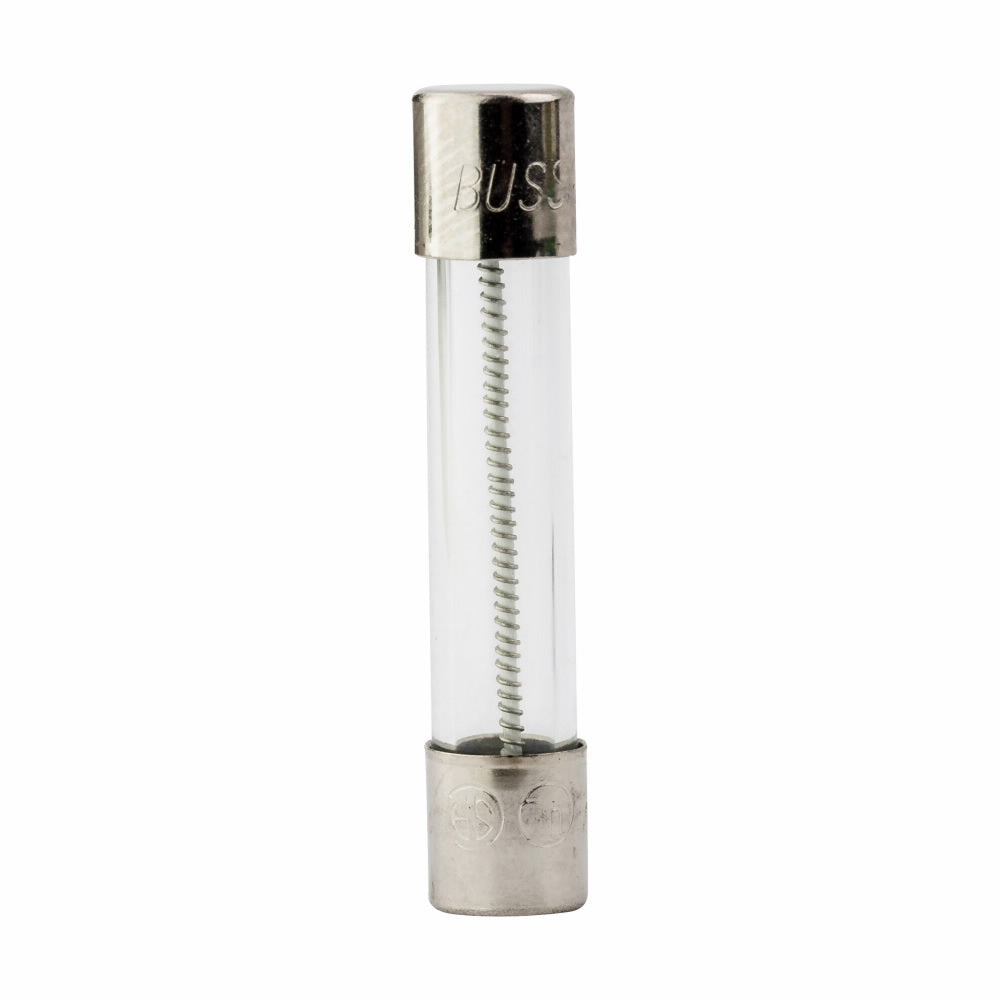

Eaton MDL-1-1/2-R MDL Time Delay Electronic Fuse 1.5 A (1/4 In x 1-1/4 In)

Product Description

Eaton MDL-1-1/2-R is a Bussmann MDL series time-delay electronic fuse rated 1.5 A and 250 VAC for circuit protection in industrial and electronic applications. The cylindrical small-dimension fuse also has a 32 Vdc rating and documented time-delay response characteristics for inrush tolerance. It is used in electronic circuits and power conversion systems where controlled delay and interrupting capability are required.

• Rated current: 1.5 A; voltage ratings: 250 VAC and 32 Vdc; interrupting rating 0.1 kA (100 A)
• Time-delay characteristic with documented response times for inrush tolerance (manufacturer specified values)
• Small-dimension cylindrical body (1/4 In diameter x 1-1/4 In length) with ferrule end connections and nickel-plated brass end caps

Product Highlights

Time-delay fuse for electronic and industrial circuit protection with 1.5 A rating, 250 VAC/32 Vdc ratings, and documented response times.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDL-1-1/2-R
• Country of Origin: Taiwan

Technical Specifications

• Brand: Eaton (Bussmann)
• MPN: MDL-1-1/2-R
• Series: MDL
• Fuse Type: Time-delay
• Current Rating: 1.5 A
• AC Voltage Rating: 250 VAC
• DC Voltage Rating: 32 Vdc
• Interrupting Rating: 0.1 kA (100 A)
• Body Style: Cylindrical
• Dimensions: 1/4 In diameter x 1-1/4 In length
• Material: Glass tube with nickel-plated brass end caps
• Connection Type: Ferrule end x ferrule end
• Response Time: Time-delay characteristic (manufacturer documented values)
• Standards: UL, CSA, IEC (manufacturer stated)
• Applications: Electronic circuits; industrial circuit protection
• Manufacturer: Bussmann Mfg. (Eaton)
• Catalog Number: MDL-1-1/2-R
• Weight (raw): 0.0500 lb
• Country Of Origin: Taiwan
