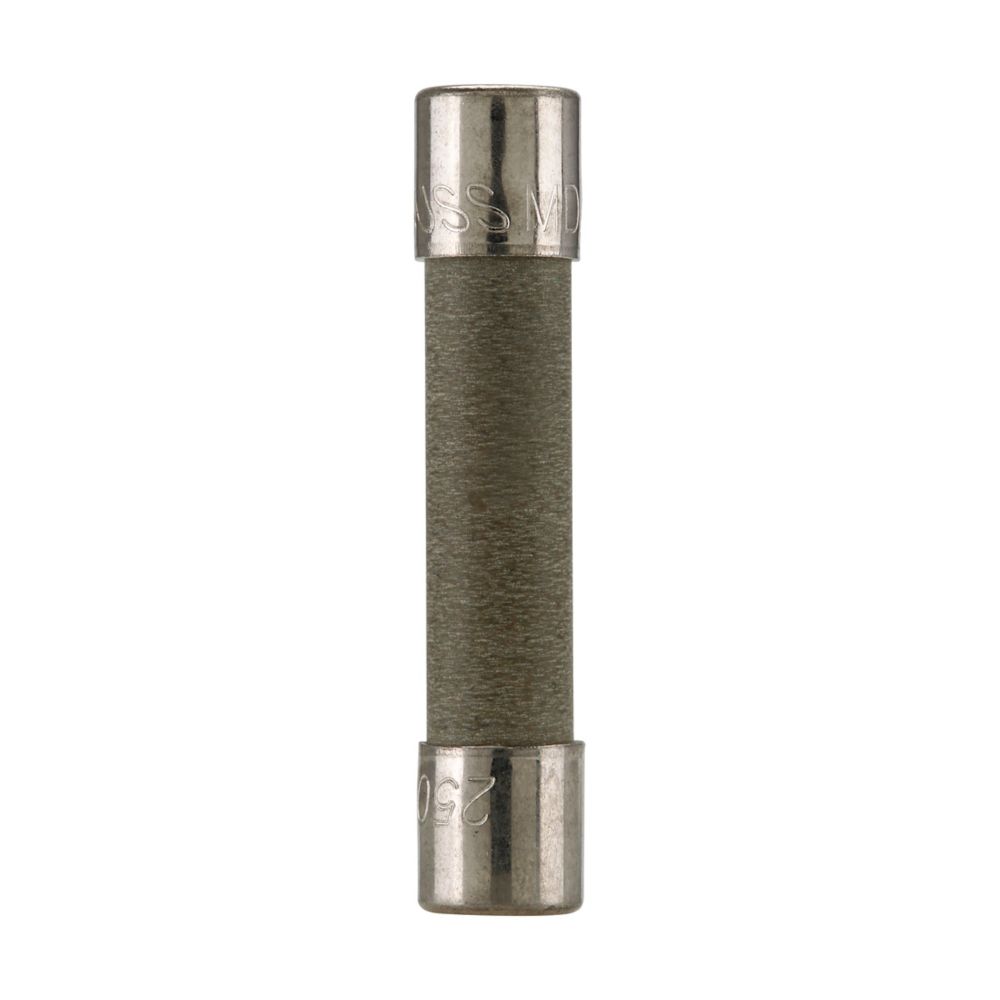

Eaton MDA-1-R MDA Time Delay Fuse 1 A (1/4 inches x 1-1/4 inches)

Product Description

The Eaton MDA-1-R is a Bussmann MDA time-delay (slow-blow) fuse rated 1 A and 250 VAC, designed for overcurrent and overvoltage protection in inrush-tolerant applications. It uses a cylindrical ceramic tube construction in a standard 1/4" x 1-1/4" (3AG) size for common fuse holders. Typical uses include circuit protection where temporary current surges occur and standard replacement in equipment accepting 3AG fuses.

• Time-delay (slow-blow) fuse behavior for inrush-tolerant applications and temporary surges
• Rated current 1 A and voltage 250 VAC for overcurrent and overvoltage protection
• Cylindrical ceramic tube construction, 1/4" x 1-1/4" (3AG) size for standard fuse holders

Product Highlights

1 A, 250 VAC time-delay ceramic tube fuse, 1/4" x 1-1/4" (3AG) size for inrush-tolerant circuit protection

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDA-1-R
• Country of Origin: China

Technical Specifications

• Brand: EATON (Bussmann)
• MPN: MDA-1-R
• Product Type: MDA Time Delay Fuse
• Type: Time-delay (slow blow) fuse
• Current Rating: 1 A
• Voltage Rating: 250 VAC
• Fuse Size: 1/4" x 1-1/4" (3AG)
• Body Style: Cylindrical
• Body Material: Ceramic tube
• Manufacturer: EATON
• Country Of Origin: China
• Packaging: Each
• Package Quantity: 5
