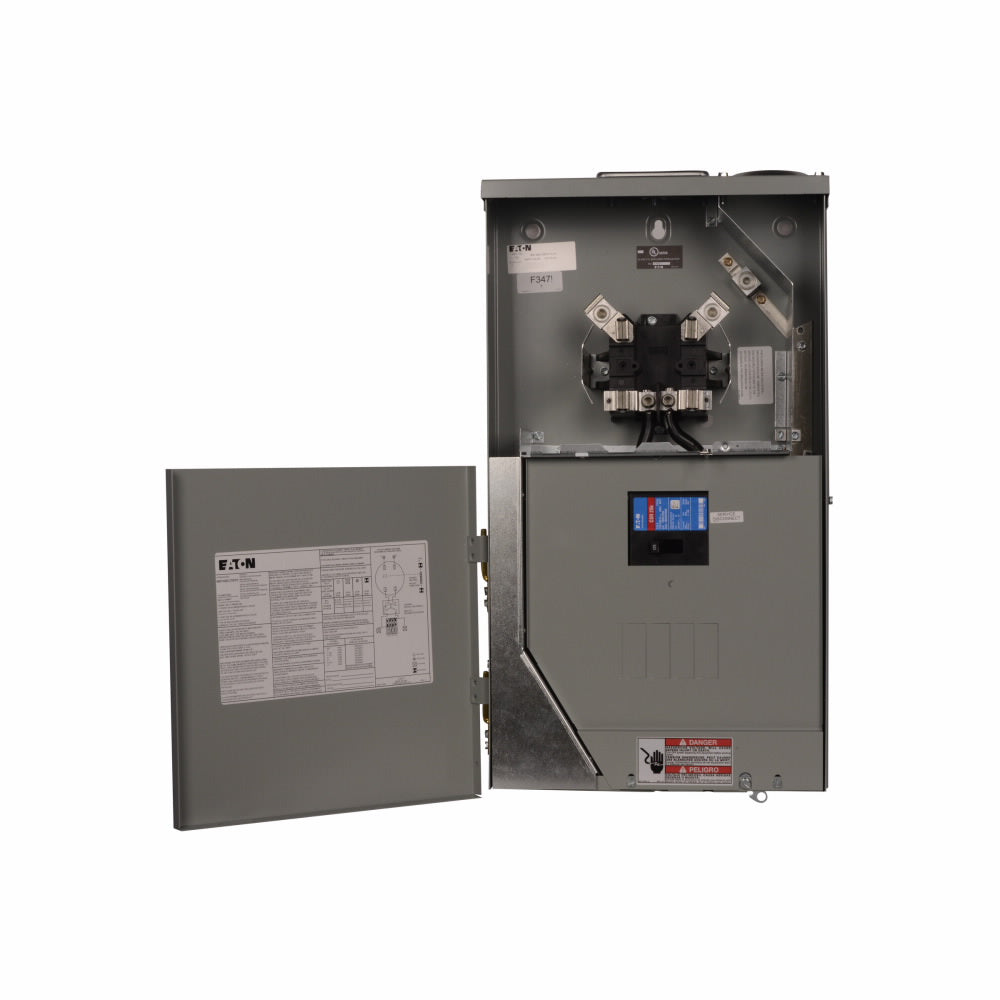

Eaton MBT48B125BTSBL C-H 1 IN Type BR Non-EUSERC Residential Meter Breaker

Product Description

The Eaton MBT48B125BTSBL is a residential meter breaker that serves as a combination service entrance. It is designed for 120/240 VAC, 125 A applications. This product includes one socket, four spaces, and eight circuits in a NEMA 3R enclosure.

• Suitable for residential and commercial electrical applications.
• Supports various feed types: bottom, overhead, top, or underground.
• Equipped with a padlockable cover for enhanced security against tampering.

Product Highlights

Built for durability, the Eaton meter breaker features ringless covers and provides multiple wire gauge options from six AWG to three hundred kcmil. It also includes a distribution section and a main breaker for comprehensive circuit management.

Product Information

Standard Information

• Brand: Eaton
• MPN: MBT48B125BTSBL

Technical Specifications

• Amperage Rating: 125 A
• Application: Electrical Assemblies, Panel, EOEM and Residential Applications
• Cover Type: Ringless
• Dimensions: 4.94 inches L x 14.44 inches W x 25.5 inches H
• Enclosure: NEMA 3R
• Feed Type: Bottom/Overhead/Top/Underground
• Hub Size: 1 inch
• Hub Type: Top Endwall
• Includes: Distribution Section and CSR2150 Main Breaker
• Mounting Type: Surface
• Number of Jaws: 4
• Phase: 1 ph
• Series: MB Series
• Standards/Approvals: AEIC-EEI-NEMA MSJ-7|UBC and CBC Title 24|UL 414 File No. E52977
• Terminal Type: Line/Load
• Type: Type BR 8-Circuit 1-Socket 4-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC
• Voltage Rating: 120/240 VAC
