Product Description

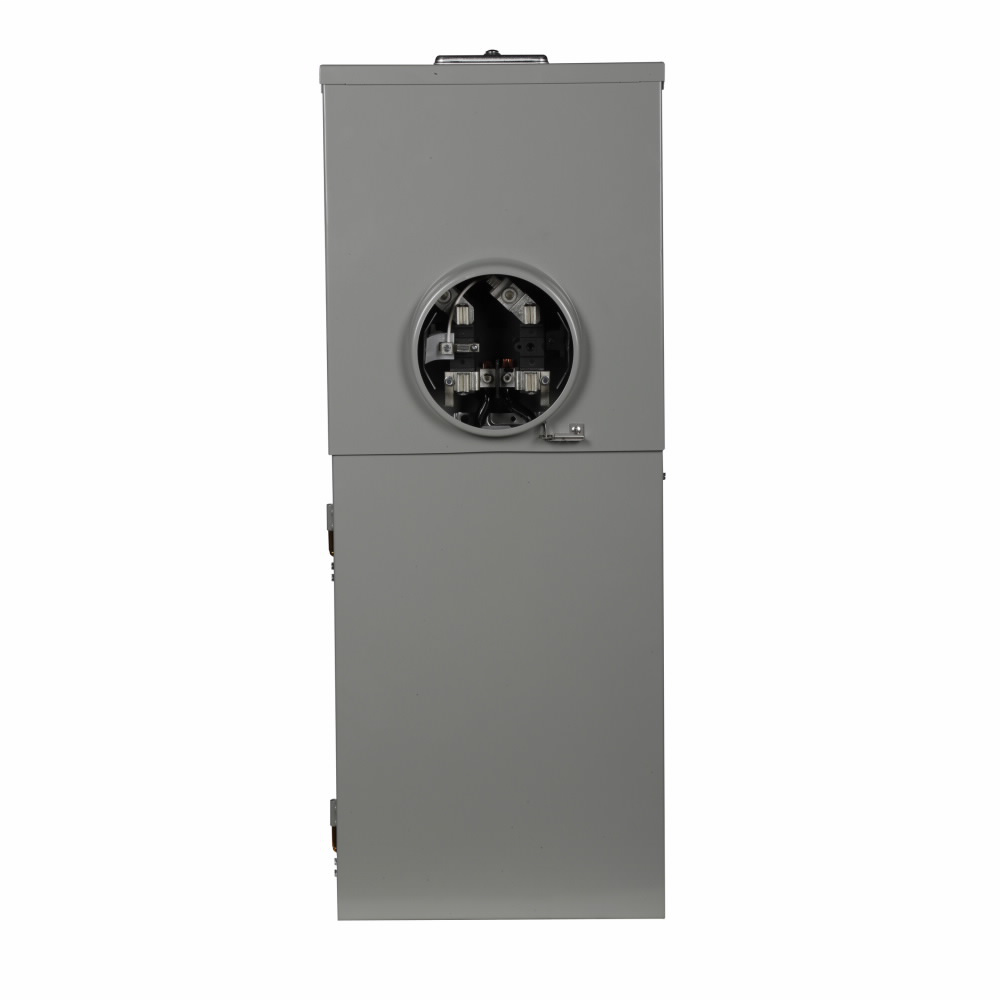

Eaton MB816P200STD is a residential meter breaker designed for efficient power distribution. It supports a total amperage of two hundred amps and operates at a voltage of one hundred twenty to two hundred forty volts. The device features provisions for feed-through lugs enabling bottom and top feed connections. This all-in-one service entrance equipment simplifies installations and is compatible with BR and CH-type branch circuit breakers.
- All-in-one service entrance solution
- Supports single-phase applications
- UL listed for safety compliance
Product Highlights
Designed for residential buildings, this meter breaker provides durable, surface-mounted installation options. Its design meets the National Electrical Code wire bending space requirements, making it convenient for electricians in various situations.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Catalog Number: MB816P200STD
-
Voltage Rated: 120/240 V
-
Amperage Rating: 200 A
-
Enclosure Type: NEMA 3R
-
Number of Phases: 1
-
Number of Circuits: 16
-
Number of Jaws: 5
-
Weight: 40.9 lb
