Product Description

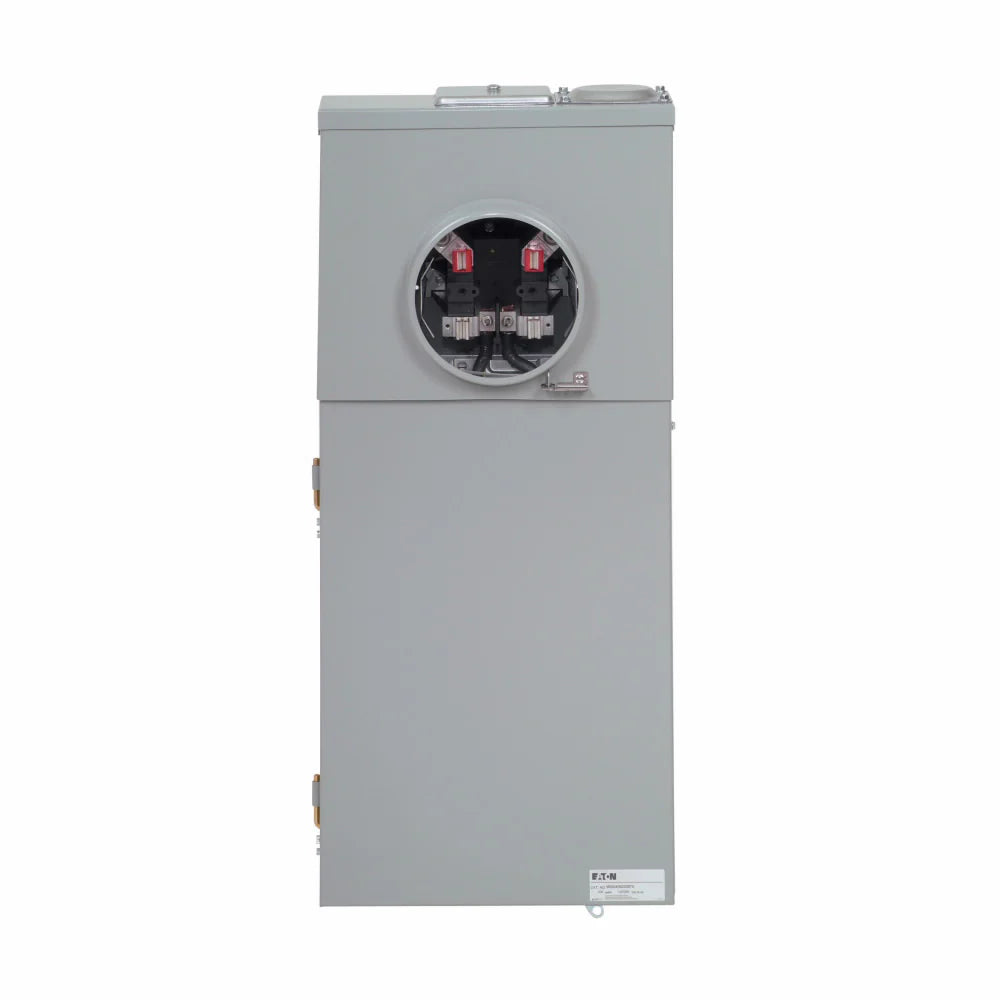

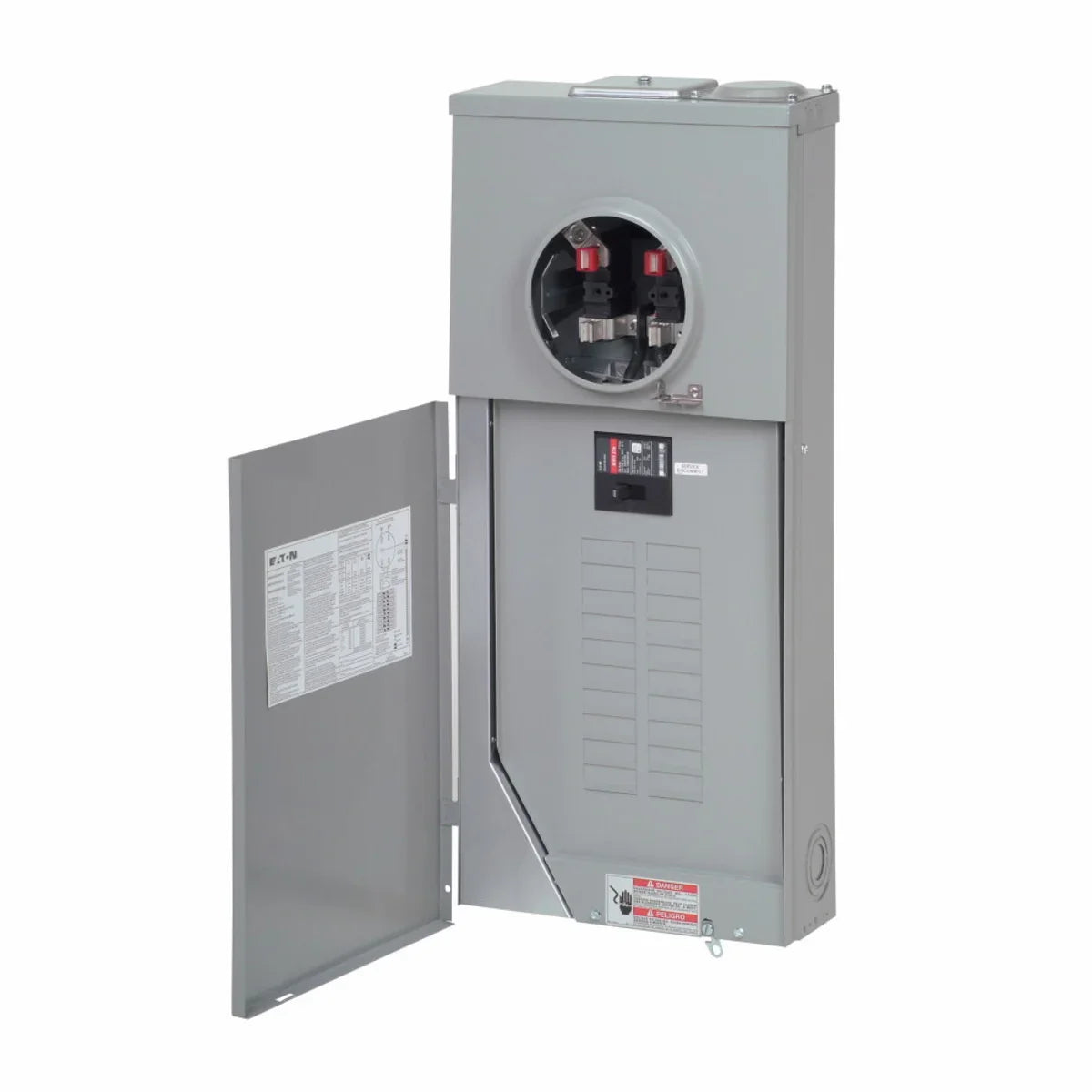

The Eaton MB2040B200BTS is a residential meter breaker designed for use with 120/240 volt AC power. This model integrates a load center with meter socket functionality, streamlining installation for electrical assemblies. It can accommodate a maximum of 200 amps and includes features suitable for multiple wire feed types. This product is ideal for residential applications and utilities where space is limited.
- Compatible with BR and CH type breakers
- NEMA type three R enclosure
- Four jaws and accommodates circuits up to forty
Product Highlights
This meter breaker allows for quick installation and flexible service setups while meeting NEC wire bending space requirements.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Catalog Number: MB2040B200BTS
-
MPN: MB2040B200BTS
-
Dimensions: 5.38 inches length x 14.44 inches width x 32.38 inches height
-
Weight: 42 pounds
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 200 Amps
-
Enclosure Type: NEMA 3R
-
Feed Type: Bottom, Top, Overhead
-
Number of Jaws: 4
-
Phase: 1 Phase
-
Interrupt Rating: 10 kAIC
-
Catalog Link: Eaton Product Link
