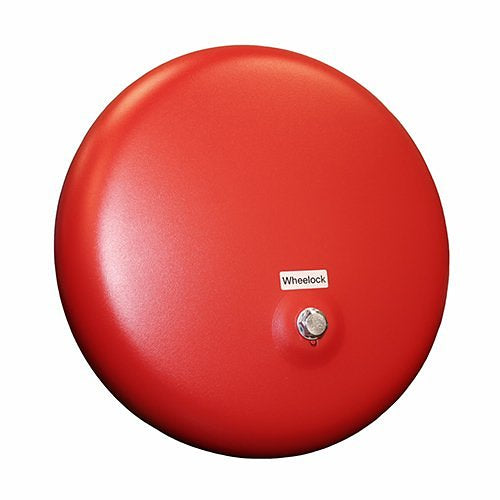

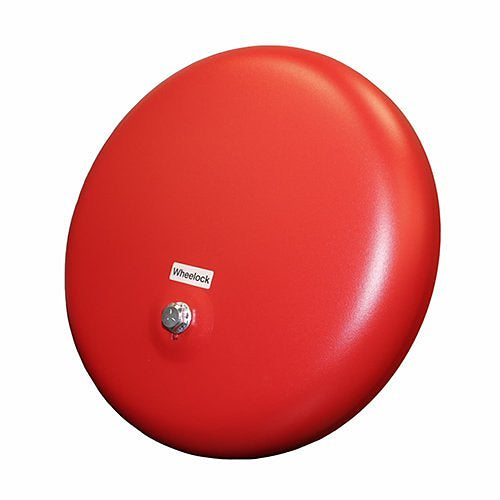

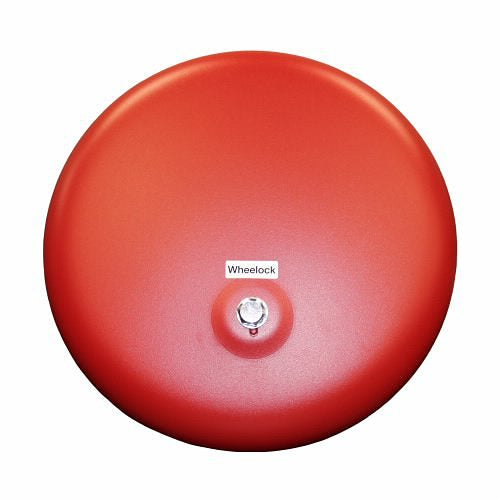

Eaton MB-G10-24-R Motor Bell for Indoor and Outdoor Use, 24VDC, 10 Inch Shell, Red

Product Description

The Eaton MB-G10-24-R Motor Bell is engineered for reliability in fire and life safety alarm systems. This device features a durable, high-torque permanent magnet motor that ensures consistent performance and longevity. Ideal for both indoor and outdoor applications, the 10-inch shell bell operates on a 24V DC power source.

• High sound output of 92 dB for effective alerting
• Energy-efficient with a low current motor, enhancing battery life
• Flexible installation options including surface and semi-flush mounting

Product Highlights

Designed with user convenience in mind, the Eaton MB-G10-24-R includes a built-in trimplate for easy semi-flush mounting. Its vibrant red color ensures visibility, while the fully enclosed mechanism protects internal components from environmental elements.

Technical Specifications

• Brand Name: Eaton
• Model: MB-G10-24-R
• Input Voltage: 24V DC
• Sound Emission: 92 dB
• Color: Red
• Diameter: 10 inches
• Construction: Aluminium shell with low-frequency resonance
• Compliance: NFPA 72, ANSI 117.1, ADA, UL 1971
