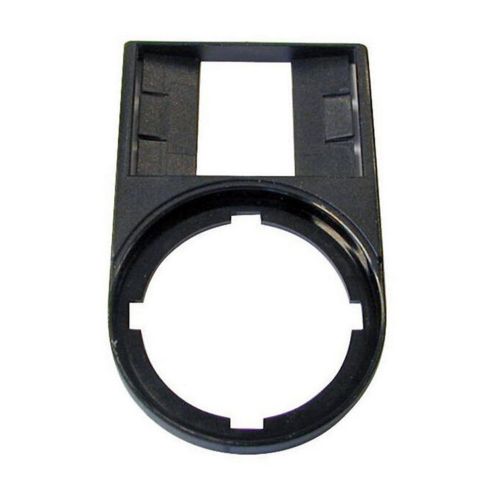

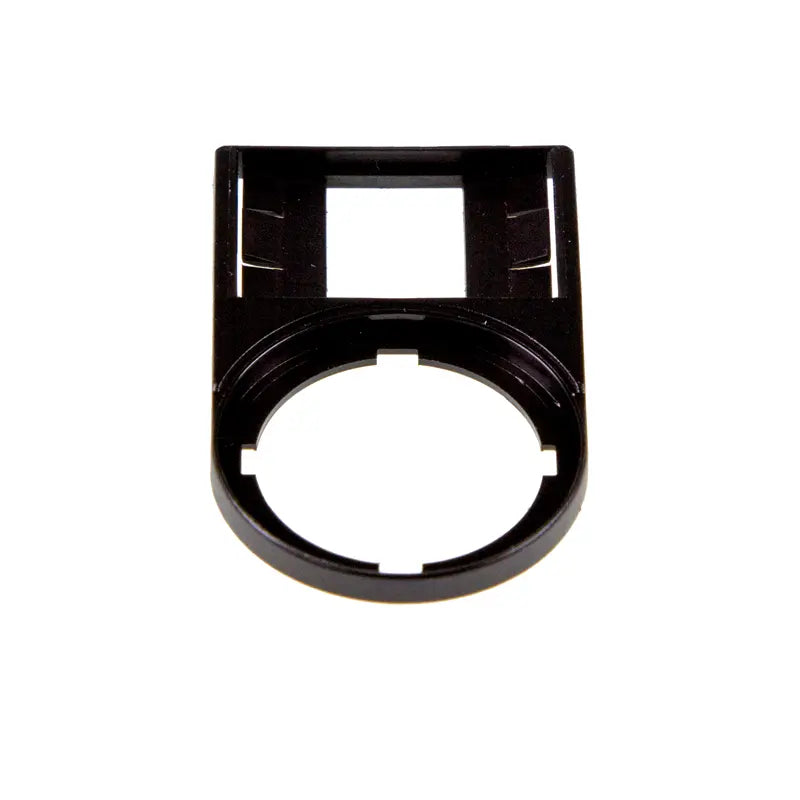

Eaton M22S-ST-X Pushbutton Legend Plate Holder 22.5 mm

Product Description

The Eaton M22S-ST-X is a modular pushbutton legend plate holder without a legend plate insert, designed for use with pushbuttons. It features a 22.5 mm mounting size and is constructed for industrial applications. The black legend holder is suitable for use in any industrial application.

• Legend plate Holder
• Drilling dimensions: 22.5 mm
• Environmental rating: IP66, NEMA 4X, NEMA 13

Product Highlights

The M22S-ST-X legend plate holder simplifies the stocking of components and complete devices.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-X

Technical Specifications

• Catalog Number: M22S-ST-X
• UPC: 786685277202
• Product Length/Depth: 2 in
• Product Height: 0.02 in
• Product Width: 1 in
• Product Weight: 0.01 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: Bureau Veritas CE Marked GoST-R
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: For use with pushbuttons
• Product Type: Pushbutton accessory
• Special features: Legend plate Holder
• Type: M22
• Button color: Black
• Series: M22
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Size: 22.5 mm
• Drilling dimensions: 22.5 mm
• Dimensions: 30 x 50 mm
• Color: Black
• Accessory Type: Legend Plate Holder
• Alternate Mfr Part Number: M22S-ST-X
• Application: Commercial / Institutional Buildings / Structures - Building Automation and Monitoring
• Brand: Eaton - Cutler Hammer
• Legend: No Legend
• Manufacturer Part Number: M22S-ST-X
• Mounting Hole Size: 22.5 mm
• Numeric ID: 3882618
• Shape: Toumbstone
• Model Code: M22S-ST-X
• EAN: 4015082163921
• Product Length/Depth (mm): 4 mm
• Product Height (mm): 50 mm
• Product Width (mm): 30 mm
• Product Weight (kg): 0.002 kg
• UL/CSA certification: Not required
• Global Catalog: 216392
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Degree of protection: IP66
• Equipment heat dissipation, current-dependent Pvid: 0 W
• Heat dissipation capacity Pdiss: 0 W
• Heat dissipation per pole, current-dependent Pvid: 0 W
• Opening diameter: 22 mm
• RAL-number: 9005
• Rated operational current for specified heat dissipation (In): 0 A
• Static heat dissipation, non-current-dependent Pvs: 0 W
• Product category: Accessories
