Eaton M22S-ST-GB7 Legend Plate

Product Description

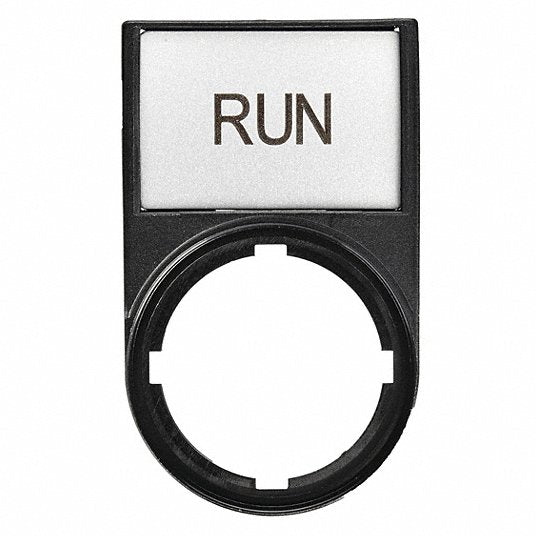

The Eaton M22S-ST-GB7 is a legend plate designed for push buttons, providing clear information about the button's function. This plate inserts between the push button's head and body, or the head and lighting module of the button assembly. It features a RUN legend on a black background.

• Features printed text to provide information about a push button's function
• Inserts between a push button's head and its body
• Space-saving construction enables fast assembly

Product Highlights

The Eaton M22S-ST-GB7 legend plate is designed for use with M22 series pushbuttons and indicating lights in automation and logic control equipment applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-GB7
• Country of Origin: Germany

Technical Specifications

• Brand: Eaton
• MPN: M22S-ST-GB7
• UPC: 786685277370
• Manufacturer: Eaton
• Type: Complete
• Compatible with Series: M22
• Background Color: Black
• Keyway Type: Notch
• Language: English
• Legend: RUN
• Legend Color: Black
• Material: Polyester
• Overall Height: 1-7/16 in
• Overall Width: 2 in
• Panel Mounting Hole Diameter: 22 mm
• Product Type: Legend Plate
• Shape: Rectangular
• UNSPSC: 39122221
• Used On: Pushbutton and Indicating Light
• Application: Automation and Logic Control Equipment Applications
• Operator Type: 22.5 mm Modular Pushbutton
• Enclosure: NEMA 4X/13, IP66
• Size: 22.5 Millimeter
• Width: 1.18 in
• Series: M22
• Legend Plate Holder Size: 1.97 Inch x 1.18 Inch
