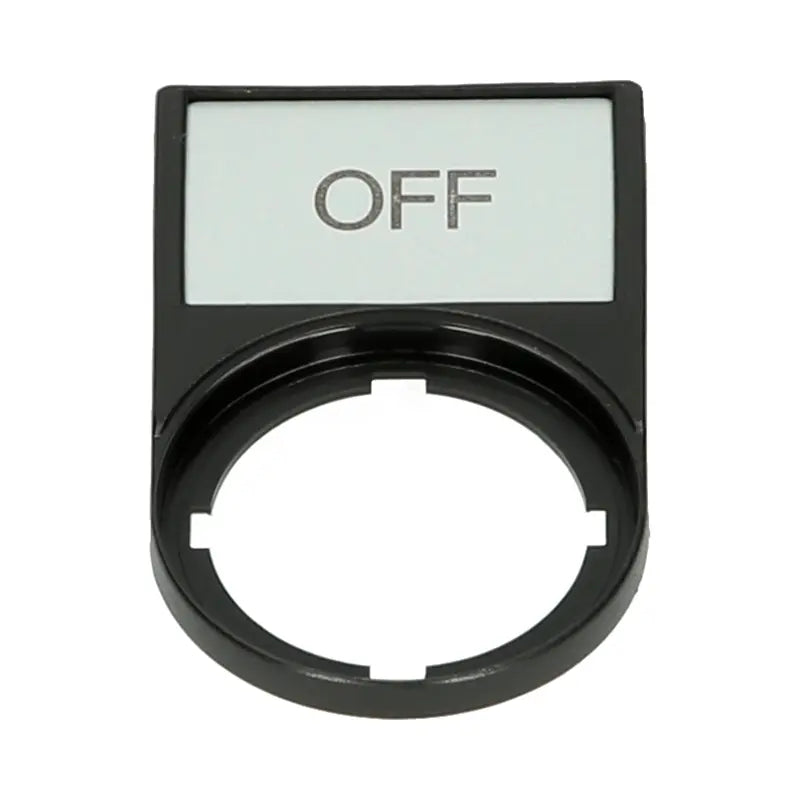

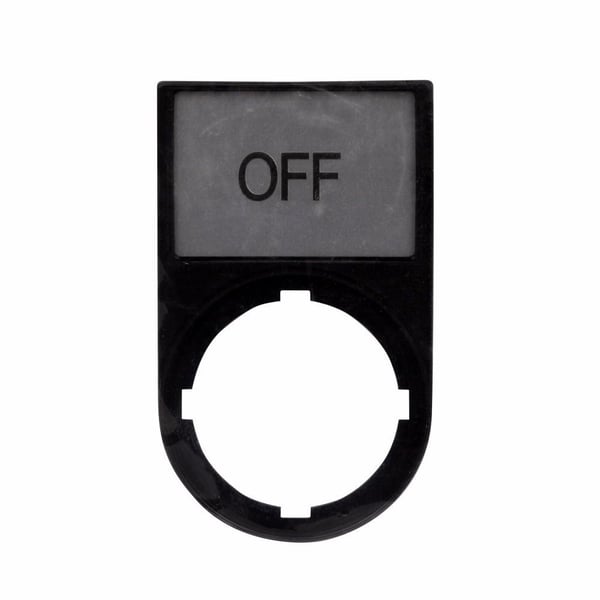

Eaton M22S-ST-GB5 Legend Plate OFF 22.5 mm

Product Description

The Eaton M22S-ST-GB5 is a legend plate designed for use with pushbuttons and indicating lights. This legend plate features an OFF inscription and is constructed from polyester. It is suitable for use with the M22 series of 22.5 mm RMQ-Titan modular pushbuttons.

• Legend plate Holder with Insert
• For use with pushbuttons and indicating lights
• Inscription: OFF

Product Highlights

The Eaton M22S-ST-GB5 legend plate is ideal for industrial applications requiring clear and durable labeling.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-GB5
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton M22 pushbutton legend plate
• Catalog Number: M22S-ST-GB5
• UPC: 786685277332
• Product Height: 1.38 in
• Product Diameter: 1.18 in
• Compliances: GoST-R CE Marked Bureau Veritas
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: For use with pushbuttons and indicating lights
• Product Type: Pushbutton accessory
• Special features: Legend plate Holder with Insert
• Type: M22
• Button color: Black
• Series: M22
• Inscription: OFF
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Etching code: GB5
• Size: 22.5 mm
• Legend Color: Black
• Material: Polyester
• Operator Type: Pushbutton
• Application: For use with M22 series 22.5 mm RMQ-Titan modular pushbutton and indicating lights
• Standard & Approvals: CSA Certified, CCC Marked, CE Marked, Lloyd's Register Certified, Bureau Veritas Certified, Gost-R Certified
• Field Color: Black
• Width: 1.18 in
• Plate Shape: Rectangle
• Height: 1.97 in
• Legend: Off
• Primary brand: Eaton
• Main function: Marking
• Functions: Half-round legend plate holder with insert
• Shape: Half round legend
• Technical compatibility with: M22 series
• Manufacturer product status: Commercialized
• Marking: "OFF"
• Operator Size: 22 mm
• Compatible Panel Cutout Diameter: 22 mm
• Item: Legend Plate
• Language: English
• Compatible with Series: M22
• Keyway Type: Notch
• Background Color: Black
• Drilling dimensions: 22.5 mm
