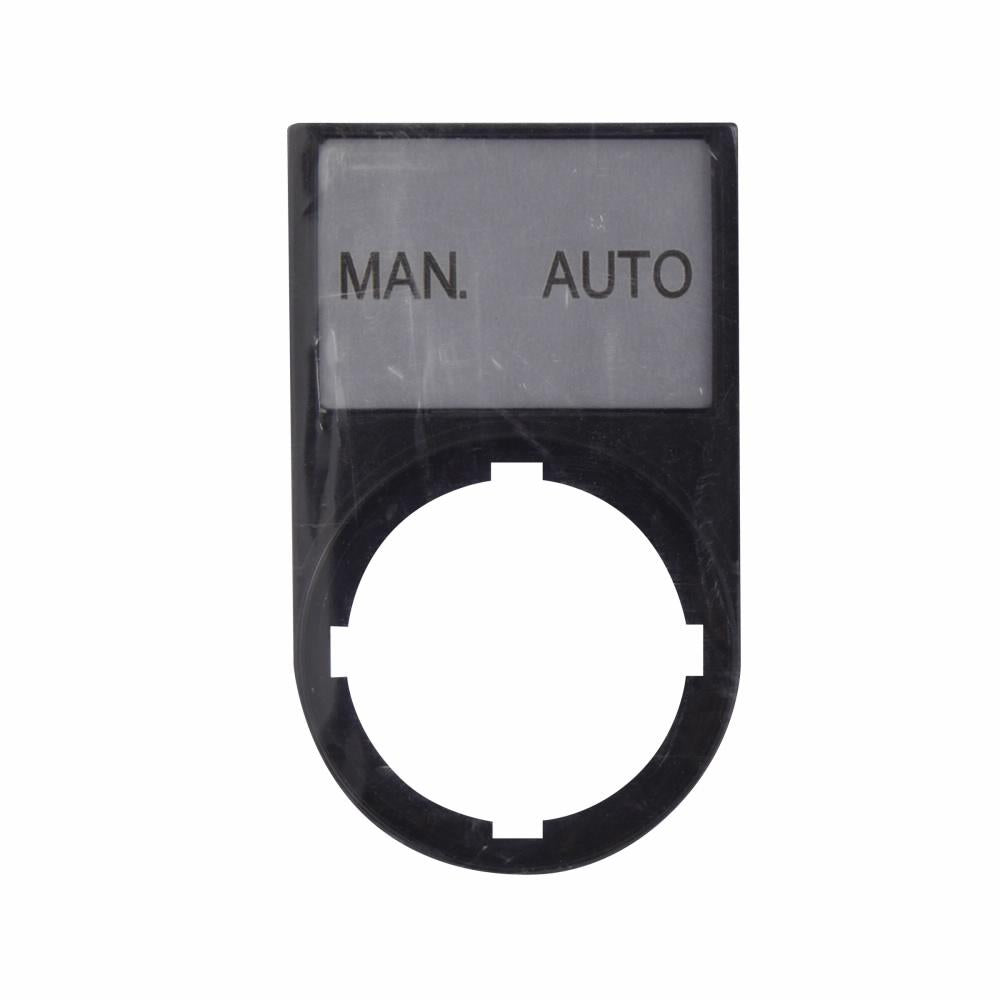

Eaton M22S-ST-GB11 Legend Plate Man-Auto/ Gb11 22.5 mm

Product Description

The Eaton M22S-ST-GB11 is a M22 pushbutton legend plate. It is a complete modular pushbutton legend plate with a black button and MAN. AUTO/ GB11 inscription. Designed for use with selector switches. The space-saving modular construction simplifies stocking of components and complete devices.

• Legend plate Holder with Insert
• For use with selector switches
• Heavy-Duty Construction with a Minimum of IP66 and UL NEMA Type 4X/13 on Front of Panel Operators

Product Highlights

The Eaton M22S-ST-GB11 legend plate offers a wide array of functional and ergonomically designed operators. It ensures high-quality performance and simplifies assembly.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-GB11

Technical Specifications

• Product Name: Eaton M22 pushbutton legend plate
• Catalog Number: M22S-ST-GB11
• UPC Code: 786685277431
• Product Height: 1.38 in
• Product Diameter: 1.18 in
• Compliances: GoST-R Bureau Veritas CE Marked
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified
• Catalog Notes: For use with selector switches
• Product Type: Pushbutton accessory
• Special features: Legend plate Holder with Insert
• Type: M22
• Button color: Black
• Series: RMQ-Titan M22 Series
• Inscription: MAN. AUTO
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Etching code: GB11
• Size: 22.5 mm
• Accessory Type: Legend Plate
• Alternate Mfr Part Number: M22S-ST-GB11
• Brand: Eaton - Cutler Hammer
• Legend: MAN. AUTO
• Manufacturer Part Number: M22S-ST-GB11
• Mounting Hole Size: 22.5 mm
• Shape: Toumbstone
• Plate Shape: Rectangle
• Operator Type: Pushbutton
• Legend Color: Black
• Height: 1.97 in
• Width: 1.18 in
• Material: Polyester
• Field Color: Black
