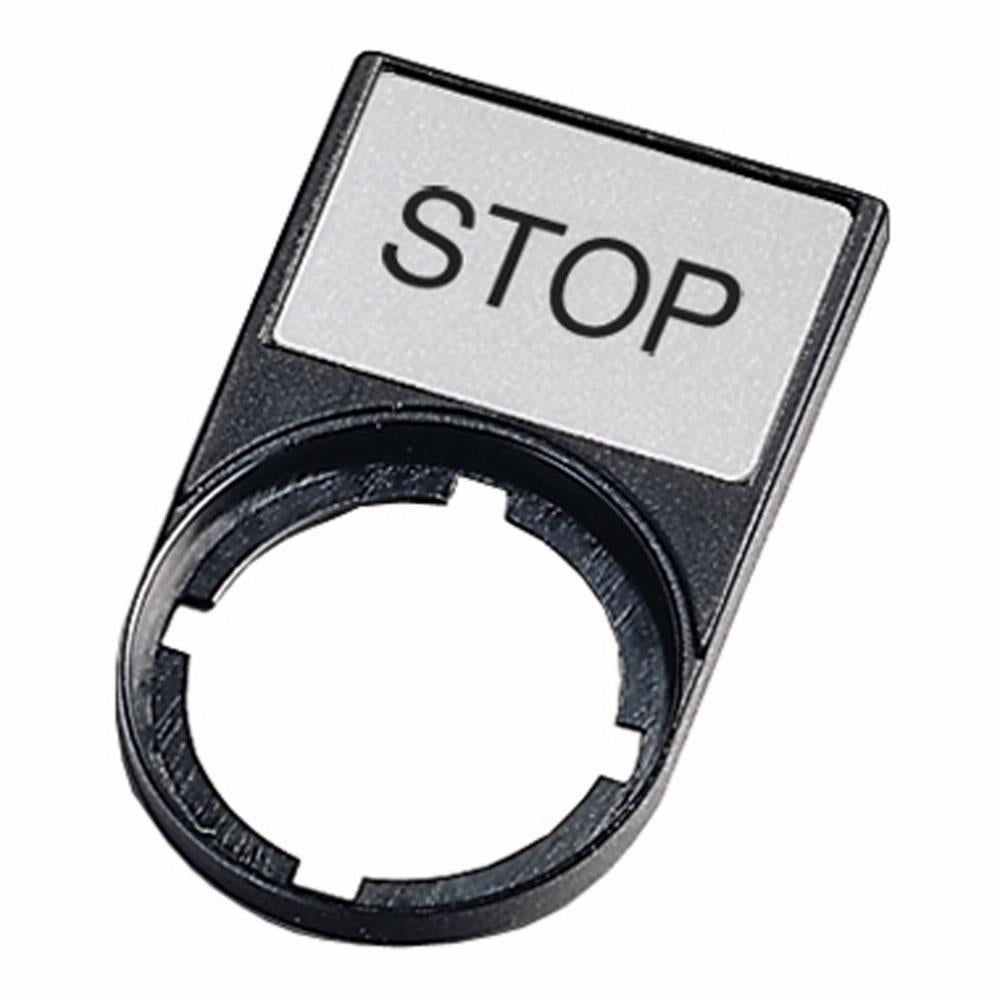

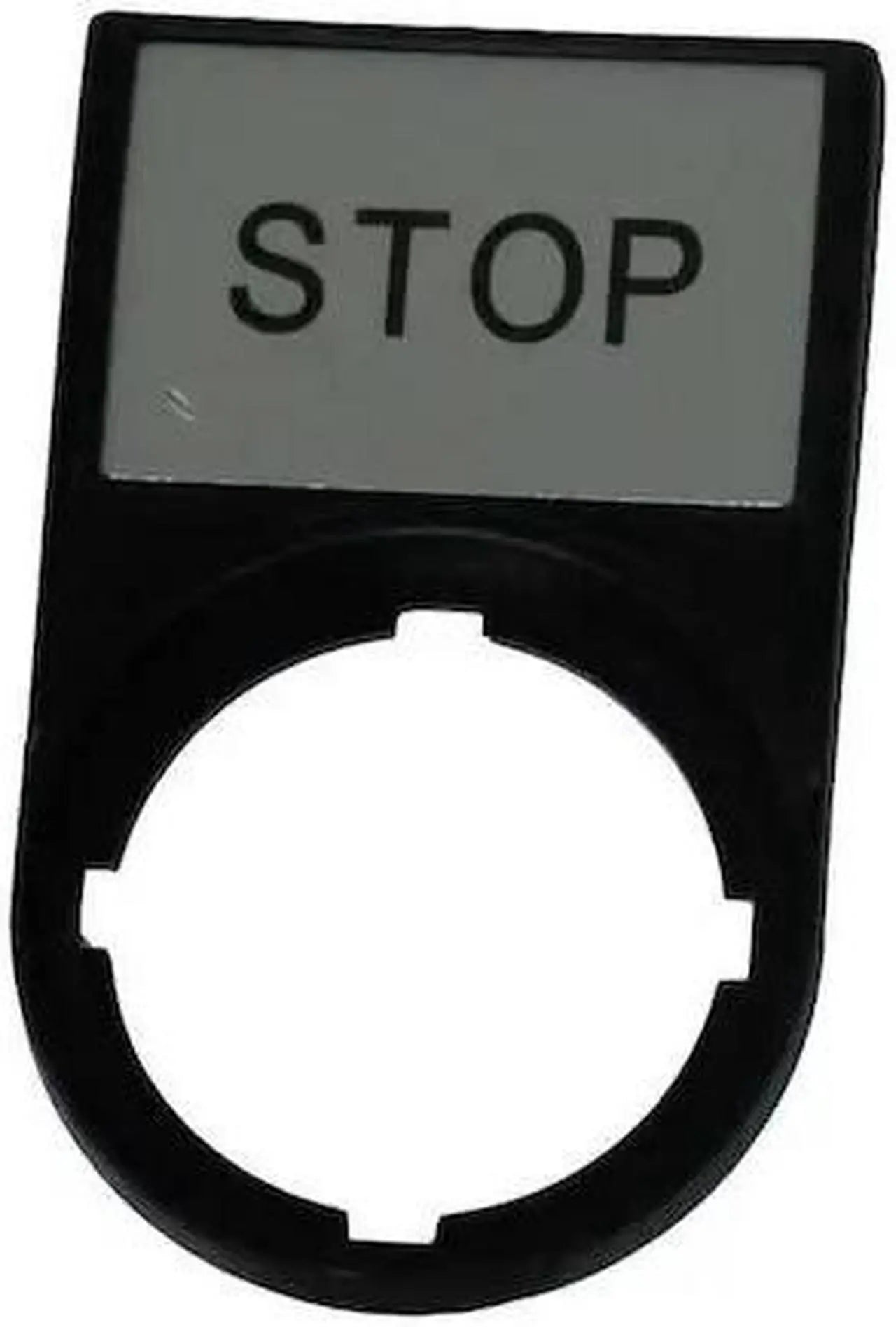

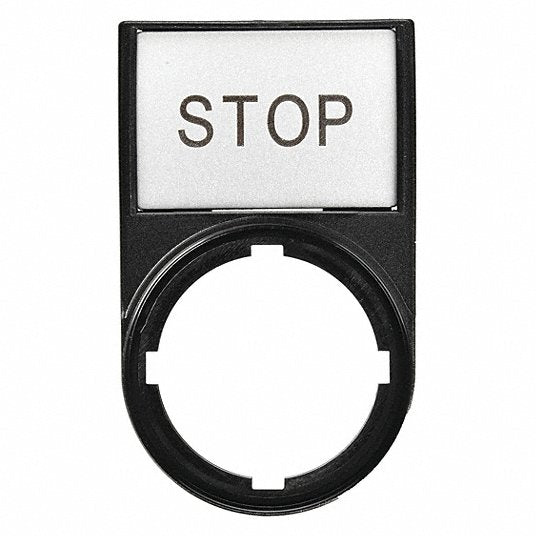

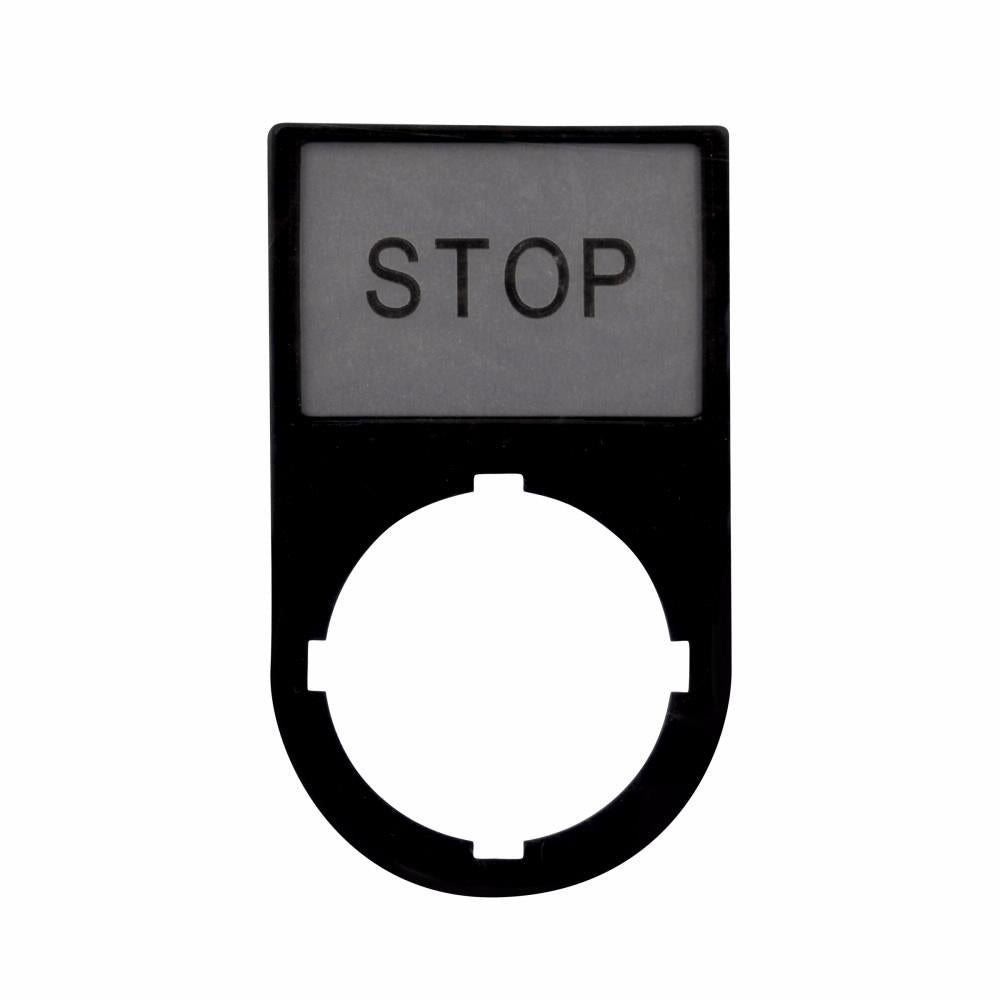

Eaton M22S-ST-GB0 M22 Complete Legend Plate With Insert, 1.18 in W

Product Description

The EATON M22S-ST-GB0 is a complete legend plate with insert. This functional line of pushbuttons features a space-saving construction for fast assembly. Designed for use with pushbuttons and indicating lights, the M22 offers LED light units to ensure high-quality brightness and long-lasting illumination.

• Most pushbutton operators and contact blocks exceed 5 million mechanical operations
• Highly versatile line features field convertible functions and customized laser engraving capabilities
• All components feature an IP66 rating and some carry IP67 and IP69K for washdown environments

Product Highlights

Complete legend plate with insert for pushbuttons and indicating lights. Features space-saving construction and long-lasting LED illumination.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-GB0
• Country of Origin: Germany

Technical Specifications

• Legend: STOP
• Operator Type: 22.5 mm Modular Pushbutton
• Series: M22
• Type: Complete
• Width: 1.18 in
• Field Color: Black/Silver
• Product Name: Eaton M22 pushbutton legend plate
• Catalog Number: M22S-ST-GB0
• UPC: 786685277295
• Product Height: 0.1 in
• Product Diameter: 1.18 in
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: For use with pushbuttons and indicating lights
• Product Type: Pushbutton accessory
• Special features: Legend plate Holder with Insert
• Button color: Black
• Inscription: STOP
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Etching code: GB0
• Size: 22.5 mm
• Application: For use with pushbuttons and indicating light, automation and logic control equipment applications
• Catalog ID: C-HM22S-ST-GB0
• UNSPSC: 39122221
• Used On: Pushbutton and Indicating Light
• Legend Color: Black
• Background Color: Black
• Enclosure: NEMA 4X/13, IP66
• Legend Plate Holder Size: 1.97 Inch x 1.18 Inch
• Brand: EATON
• Compatible with Series: M22
• Keyway Type: Notch
• Language: English
• Material: Polyester
• Overall Width: 1-5/16 in
• Panel Mounting Hole Diameter: 22 mm
• Shape: Half-Round
• For Use With: Eaton C22 and M22 Pushbuttons
• Legend/Background Color: Black
• Height: 1.97 in
• Diameter: 22 mm
