Eaton M22S-PVT Moeller RMQ-Titan Halt/Stop-Button 38 mm

Product Description

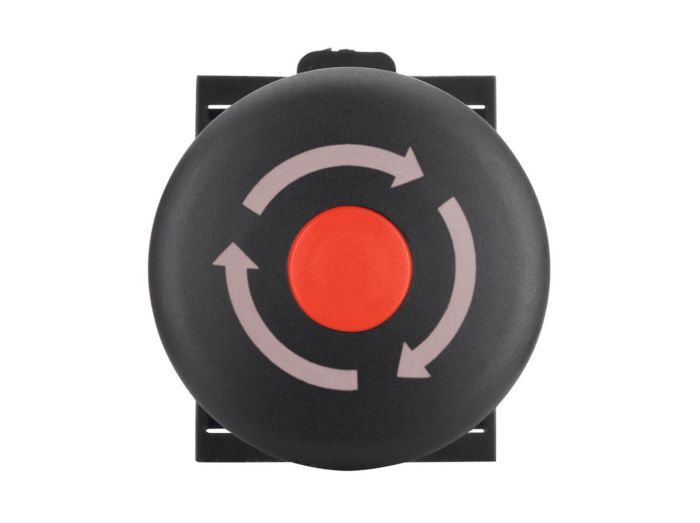

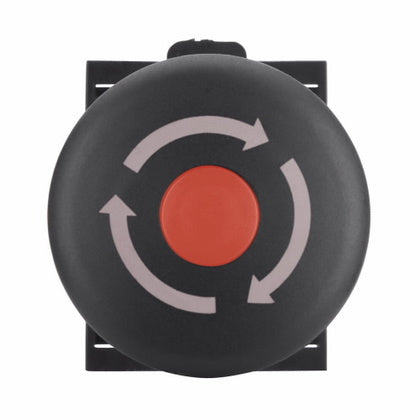

The EATON M22S-PVT is a Moeller series RMQ-Titan halt/stop button. This mushroom-shaped, non-illuminated stop button features a turn-to-release function. It has a 38 mm diameter and is black and yellow in color. The modular construction of the M22 line makes assembly fast and simplifies stocking.

• Mushroom-shaped actuator
• Turn-to-release function
• Non-illuminated

Product Highlights

The EATON M22S-PVT is a reliable emergency stop solution with a durable design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-PVT
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Moeller series M22 stop button
• Catalog Number: 271499
• Model Code: M22S-PVT
• EAN: 4015082714994
• Product Length/Depth: 38 mm
• Product Height: 70 mm
• Product Width: 38 mm
• Compliances: CE Marked
• Certifications: UL 508 EN 60947-5 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 IEC 60947-5 VDE CSA File No.: 012528 CE CSA-C22.2 No. 94-91 UL Category Control No.: NKCR UL File No.: E29184 CSA-C22.2 No. 14-05 IEC/EN 60947 UL VDE 0660 CSA CSA Class No.: 3211-03 IEC/EN 60947-5 DNV GL LR
• Global Catalog: 271499
• Product Type: Stop button
• Type: Non-Illuminated, Maintained
• Actuator color: Black
• Actuator function: Switching function latching Turn-to-release
• Operating frequency: 600 Operations/h
• Button color: Black
• Climatic proofing: Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
• Connection to SmartWire-DT: Yes With SWD-RMQ connections
• Base color: Yellow
• Actuating force: 50 N
• Actuator diameter: 38 mm
• Ambient operating temperature - max: 70 C
• Ambient operating temperature - min: -25 C
• Diameter cap: 38 mm
• Opening diameter: 22.5 mm
• RAL-number: 9005
• Illumination: Non-illuminated
• Bezel color: Other
• Shock resistance: Mechanical, According to IEC/EN 60068-2-27 50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
• Bezel material: Other
• Design: Mushroom-shaped Classical
• Mounting position: As required
• Degree of protection: IP67/IP69K NEMA 4X, 13
• Front element type: High
• Lens type: Round
• Lifespan, mechanical: 100,000 Operations
• Product category: RMQ-Titan
• Size: Front dimensions: 35 mm
• Unlocking method: Turn-release
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 100,000
• Panel Cutout Diameter: 22.5 mm
• Item: Push Button Switch
• Push Button Style: Emergency Stop Pushbutton
• Action: Maintained
• Operator Illumination: Non-Illuminated
• Head Color: Black
• Head Material: Dielectric Polymer
• Family / Style: M22
• Color: Black
• Diameter: 40 mm
• IP/NEMA Rating: NEMA 4X, NEMA 13
• Manufacturer: Eaton
• Product Series: M22
• Operation: Turn to Release
• Mounting: 22 mm
• Lens/Button Shape: Mushroom
• Operator Color: Black
• Protection Rating: IP67, IP69K
• NEMA Rating: NEMA 13, NEMA 4X
• Brand: Eaton
• Model: M22S - PVT
