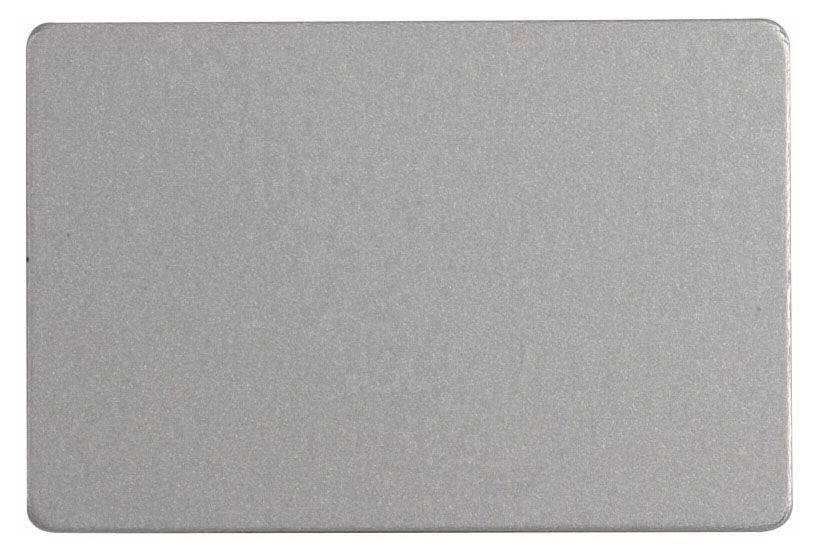

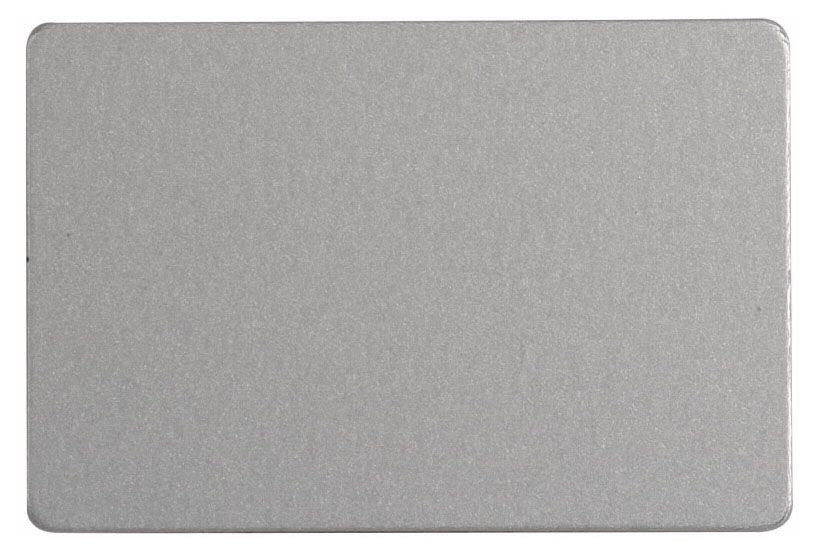

Eaton M22-XST Aluminum Mounting Plate

Product Description

The EATON M22-XST is an aluminum mounting plate designed for use with EATON M22 series control components. This part provides a secure mounting surface for modular control devices within industrial and commercial electrical enclosures and control panels. Its aluminum construction keeps weight low while maintaining the structural integrity needed in demanding electrical environments. Licensed electricians and panel builders typically install this component as part of a larger M22 series assembly during new panel builds or control system retrofits.

The M22-XST fits into applications where M22 series pushbuttons, selector switches, and similar control devices require a stable mounting base. It is suited for both commercial and industrial control panel installations where standardized modular component systems are used. The aluminum material makes it appropriate for environments where corrosion resistance and reduced component weight are considerations.

Key Features

• Aluminum construction for corrosion resistance and reduced weight
• Designed for use within the EATON M22 series modular control component system
• Compact and lightweight at 0.020 pounds, minimizing panel load
• Compatible with standard M22 series mounting configurations

Compatibility

Designed as an OEM-style mounting component for use within the EATON M22 series modular control device platform.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the panel and verify the absence of voltage before beginning any installation work. Ensure the mounting plate is fully seated and secured before attaching any M22 series control devices to the assembly.

Technical Specifications

• Material: Aluminum
• Weight: 0.020 pounds
• UPC: 78668527722

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-XST
