Eaton M22-XL-G Green Lens 22.5 Mm Indicator

Product Description

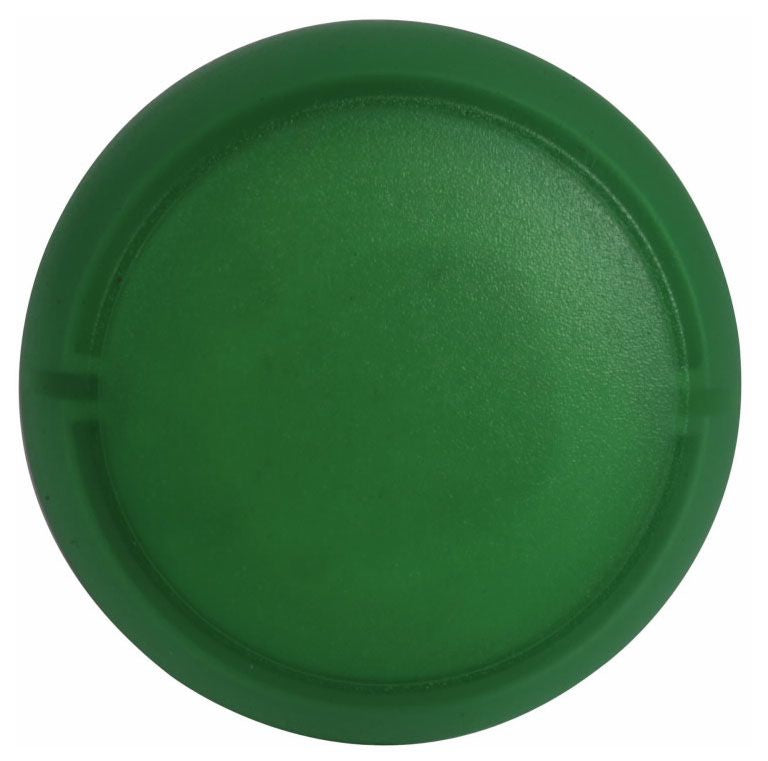

The EATON M22-XL-G is a green lens unit designed for use with 22.5 mm push-button and pilot light assemblies in industrial control panels. This lens component mounts into a compatible M22-series operator body or illuminated indicator housing and provides a clear color signal for machine status, run indication, or circuit condition monitoring. The green color designation follows standard panel-wiring convention for safe or energized status. Weighing just 0.02 pounds, this lens is a small but critical part of a properly assembled operator interface station. Electricians and panel builders install this component during initial panel construction or as a direct replacement for a damaged or discolored lens in the field.

The M22-XL-G is suited for industrial and commercial control panel applications where 22.5 mm round cutout operators are used. Typical installations include motor control centers, machine control stations, conveyor systems, and other automated equipment requiring clear visual status indication. The lens fits within the EATON M22 modular operator system, which uses a stackable component design to build complete pushbutton and indicator assemblies from individual parts.

Key Features

• Green lens color for standard safe or run status indication
• Designed for 22.5 mm round cutout panel operators
• Part of the EATON M22 modular operator series
• Lightweight at 0.02 pounds for easy handling and installation
• Direct replacement lens for damaged or worn M22-series assemblies

Compatibility

Designed as an OEM-style replacement or assembly component for 22.5 mm M22-series modular push-button and indicator operator assemblies.

Installation Notes

Installation of this lens is performed by qualified electricians during panel assembly or maintenance. De-energize and lock out the control panel before servicing any operator components per NFPA 70E lockout/tagout procedures. The lens typically snaps or threads into the operator body without special tools. Verify the lens color coding meets applicable control circuit documentation and panel legend requirements before closing the panel.

Technical Specifications

• Lens Color: Green
• Operator Size: 22.5 mm
• Weight: 0.02 pounds
• Dimensions (L x W x H): 1 inch x 1 inch x 1 inch
• UPC: 78668527871

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-XL-G
