Eaton M22-XD-R Red Flush Button Plate Actuator

Product Description

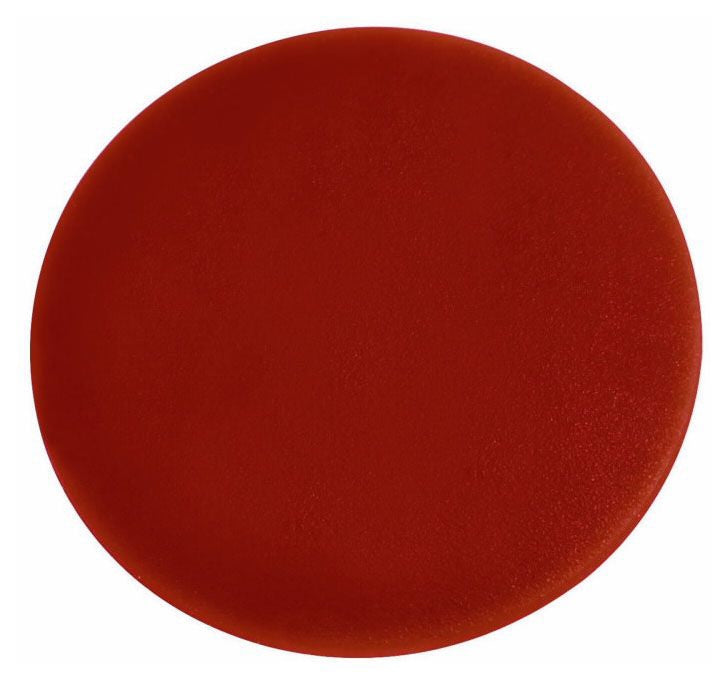

The EATON M22-XD-R is a flush-style button plate actuator designed for use with M22 series modular pushbutton assemblies in industrial control panels and operator interface stations. This compact red button plate mounts to compatible M22 contact block and holder assemblies, providing a tactile, color-coded control point for start, stop, or signaling functions. Weighing just 0.03 pounds, the M22-XD-R is a lightweight component intended for panel builders, industrial electricians, and control system integrators working with IEC-style control devices.

The M22-XD-R flush button plate is suited for use in industrial and commercial control panel applications where space-saving, modular operator interface components are required. The red color designation is commonly applied to stop, off, or emergency-related control functions following standard panel color-coding conventions. This component is part of EATON's M22 modular system, which allows individual components to be assembled into complete pushbutton operator units.

Key Features

• Flush button profile for flush-mount control panel installations
• Red color coding supports standard stop or off function identification
• Modular M22 series design allows pairing with compatible contact blocks and holders
• Compact and lightweight at 0.03 pounds for high-density panel layouts
• IEC-style form factor suitable for industrial control panel applications

Compatibility

Designed as an OEM-style component for use within the EATON M22 modular pushbutton system, compatible with M22 series holders and contact block assemblies.

Installation Notes

Installation should be performed by a qualified electrician or panel builder in accordance with NEC requirements and local codes. De-energize the control panel and verify zero voltage before handling or assembling any control components. The button plate snaps into the M22 series holder as part of a modular assembly; do not force or modify the component to fit non-compatible holders. Follow the manufacturer assembly sequence when building up the complete operator unit.

Technical Specifications

• Weight: 0.03 pounds
• Dimensions (L x W x H): 1 inch x 1 inch x 1 inch
• Color: Red
• Button Style: Flush
• UPC: 78668527342

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-XD-R
