Eaton M22-WS-MS2 Modular Two Position Key-Operated Selector Switch

EATON
Brand: EATON
SKU: M22-WS-MS2
Availability: In Stock

Ships same day if ordered by 12 pm
$83.98
$83.98
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

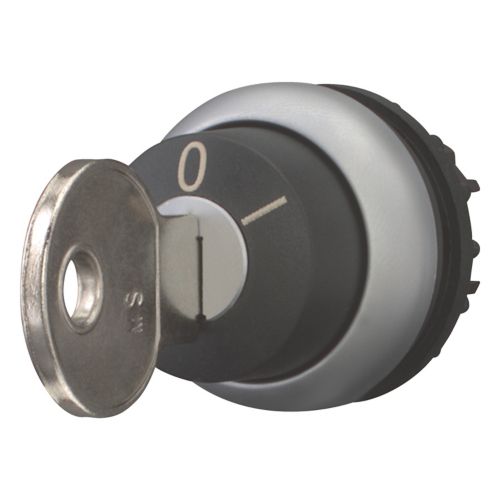

The Eaton M22-WS-MS2 is a modular two-position key-operated selector switch with a 22.5 mm size. This non-illuminated switch features a silver bezel and a black button, and it is designed for momentary operation with a return from the right. It is rated IP66, NEMA 4X, and 13 for environmental protection.

  • 22.5 mm size
  • Momentary operation with return from right
  • IP66, NEMA 4X, and 13 rated

Product Highlights

The Eaton M22-WS-MS2 is a robust and versatile selector switch suitable for various industrial applications, offering reliable performance and environmental protection.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: M22-WS-MS2
Technical Specifications
Size
22.5 mm
Type
Selector Switch
Brand
Eaton
Width
1.17 in
Height
1-1/2 Inch
Length
7 Inch
Weight
0.13 lb
Actuator
Key
Bezel Color
Silver
Product UPC
78668528071
12-Digit UPC
786685280714
Applications
Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
Illumination Type
Non-illuminated
Enclosure Material
Stainless Steel
Number of Positions
2
SKU
M22-WS-MS2
Product Name
Eaton M22 modular pushbutton
Catalog Number
M22-WS-MS2
Bezel
Silver
Operating Cycles
100,000 operations
Actuator function
Momentary, Return from right, key removable left
Button color
Black
Environmental rating
IP66, NEMA 4X, NEMA 13
Illumination
Non-illuminated
Key code
MS2
Series
M22
UNSPSC Code
39120000
Actuator Type
Key
Button Color
Black
Manufacturer Part Number
M22-WS-MS2
Mounting Hole Size
22.5 mm
Operation
Return from right
RMQ-Titan M22 Series
RMQ-Titan M22 Series
Switch Function
Momentary Right
Termination
Screw terminal
Unit of Measure
EA
UPC Code
786685280714
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 CSA-C22.2 No. 14-05 UL File No.: E29184 CSA CSA File No.: 012528 UL IEC/EN 60947 IEC/EN 60947-5 VDE 0660 CE UL 508 UL Category Control No.: NKCR
Global Catalog
111790
Product Type
Key-operated actuator
Special features
Includes one key
Accessories
1 key included with supplied equipment.
Operating frequency
100 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
Yes With SWD-RMQ connections
Actuator type
Key
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Operating torque
0.5 Nm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
40 °
Shock resistance
Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Bezel material
Plastic
Design
Key operated
Mounting position
As required
Overvoltage category
III
Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Indicator color
Other
Lens type
Round
Lifespan, mechanical
100,000 Operations
Number of switch positions
2
Front diameter
29.7 mm
Product category
RMQ-Titan
Color
Black/Silver
Material
Plastic
Operator Type
MS2 Key
Enclosure Type
NEMA 4X/13/IP66
Temperature Rating
-13 to 158

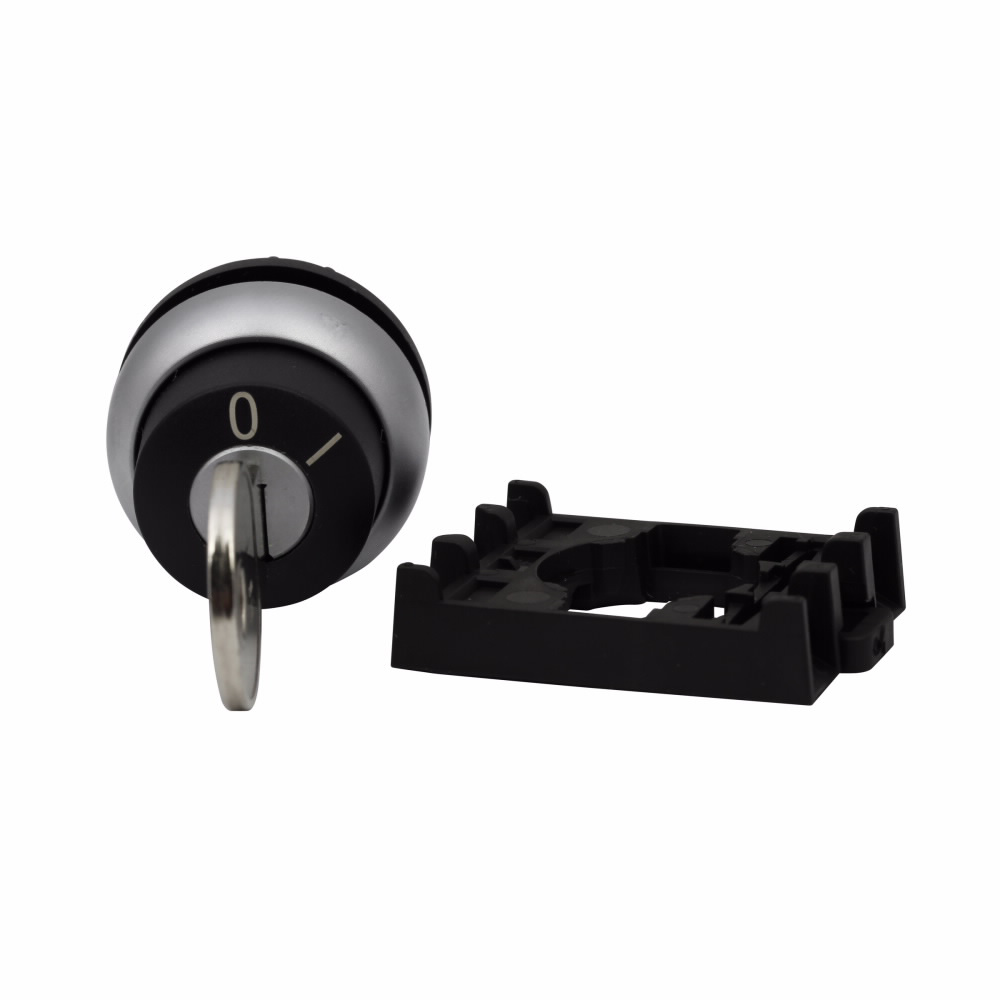

Includes
Key and Contact Block Mounting Adapter
Warranty
1 year
Condition
New – Open box
