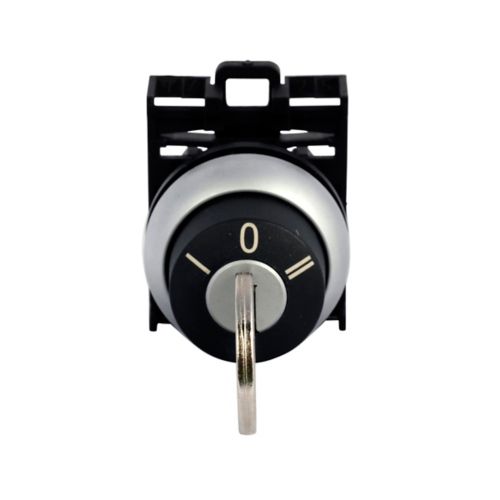

Eaton M22-WRS3-A1 Modular Three Position Key-Operated Selector Switch 22.5 mm

Product Description

The Eaton M22-WRS3-A1 is a modular three-position key-operated selector switch with a 22.5 mm size. It features a maintained actuator function with a key removable center. Designed for global machine control applications, this non-illuminated switch has a silver bezel and black button.

• Modular pushbutton
• Selector switch
• Maintained, key removable center

Product Highlights

This Eaton selector switch offers flexibility and high-quality construction for various machine control applications. It features an IP66 rating, ensuring durability in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WRS3-A1

Technical Specifications

• Catalog Number: M22-WRS3-A1
• UPC: 786685279596
• Product Length/Depth: 7 in
• Product Height: 1.5 in
• Product Width: 5 in
• Compliances: CE Marked, GoST-R, Bureau Veritas
• Certifications: CCC Marked, CSA Certified, Lloyd's Register Certified
• Catalog Notes: Includes one key and one contact block mounting adapter. Removal positions can be modified in the field using coding adapters.
• Product Type: Modular pushbutton
• Type: Selector switch
• Bezel: Silver
• Operating Cycles: 100,000 operations
• Actuator function: Maintained, key removable center
• Button color: Black
• Actuator: Key operated
• Size: 22.5 mm
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Non-illuminated
• Key code: MS1
• Number of positions: 3
• Series: M22
• UNSPSC Code: 39120000
• Operation: Three-Position; Maintained; Key Removeable Left, Center, Right
• Unit of Measure: EA
• Panel Cutout Dimensions: 22.5mm (Round)
• Requires: Contact Block(s)
• Configurable Switch Components: Configurable Switch Bodies
• Compatible Series: Eaton, M22
• Part Status: Active
