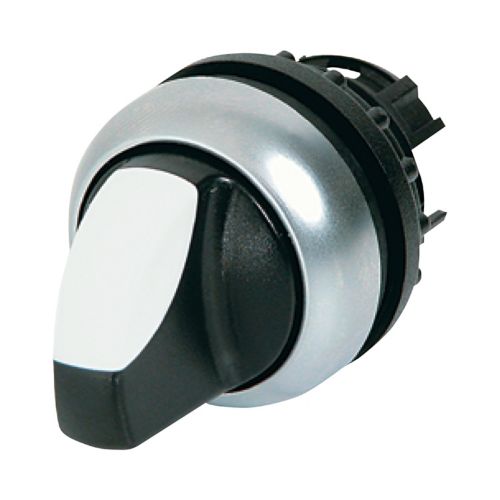

Eaton M22-WLKV-W Selector Switch 22.5 mm

Product Description

The Eaton M22-WLKV-W is a modular pushbutton, also known as a selector switch, with a 22.5 mm size. This illuminated switch features a silver bezel and a momentary knob actuator. It is designed for machine and panel building, offering flexibility and versatility. The rugged design ensures long-lasting performance, with up to 100,000 hours of illumination.

• Illuminated selector switch with knob actuator
• Modular design for easy assembly
• Rated IP66, NEMA 4X, and NEMA 13 for environmental protection

Product Highlights

The Eaton M22-WLKV-W is a durable and versatile illuminated selector switch suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WLKV-W

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-WLKV-W
• UPC: 786685281582
• Product Length/Depth: 1.17 in
• Product Height: 1.06 in
• Product Width: 1.17 in
• Product Weight: 0.1 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: GoST-R Bureau Veritas CE Marked
• Certifications: CSA Certified CCC Marked Lloyd's Register Certified

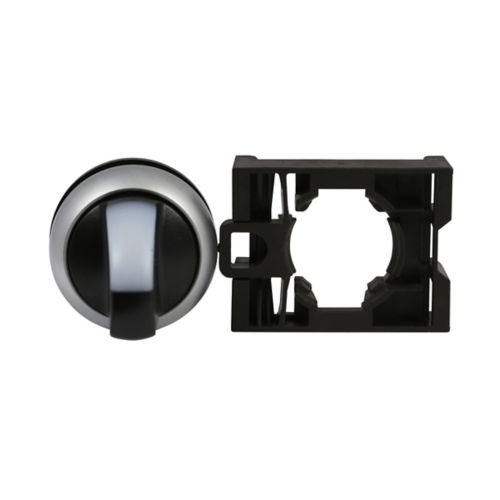

• Catalog Notes: Includes contact block mounting adapter. Can be converted in the field to maintained operation with the removal of a color coded adapter.
• Product Type: Modular pushbutton
• Type: Selector switch
• Bezel: Silver
• Actuator function: Momentary
• Button color: White
• Actuator: Knob
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Illuminated
• Number of positions: 2, Vertical
• Operating cycles: Light: 100,000, button: 100,000
• Series: M22
• Size: 22.5 mm
• Contact Mode: Momentary
• Enclosure Type: NEMA 4X/13/IP66
• Operator Type: Knob
• Action: Maintained
• Actuator Type: Selector
• Bezel/Housing: Silver
• Operation: Maintained
• Operation Mode: Illuminated Two Position, Maintained
• Mounting Hole Size: 22.5 mm
• Numeric ID: 3882618
• UPC Code: 786685281582
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -25 °C
• Opening diameter: 22.5 mm
• Operating torque: 0.3 Nm
• Switching angle: 60 °
• Bezel color: Titanium
• Bezel material: Plastic
• Design: With thumb-grip Classical
• Mounting position: As required
• Overvoltage category: III
• Degree of protection: NEMA 4X, 13
• Degree of protection (front side): IP66
• Functions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
• Indicator color: White
• Lens type: Round
• Lifespan, mechanical: 100,000 Operations
• Number of switch positions: 2
• Product category: RMQ-Titan
• Suitable for: Illumination
• Family / Style: M22
