Eaton M22-WLK-W M22 Modular Pushbutton 22.5 mm

Product Description

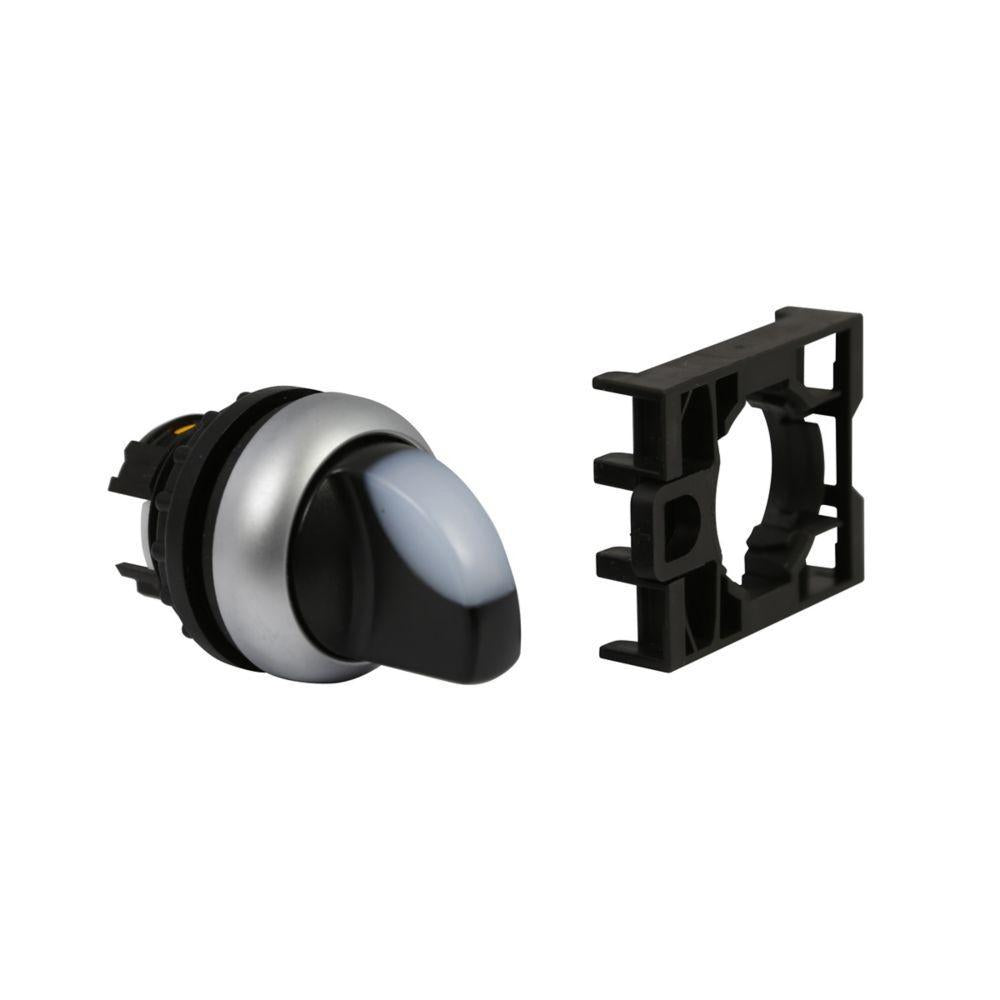

The Eaton M22-WLK-W is a M22 modular pushbutton with a 22.5 mm size. Features include a silver bezel, momentary actuator function, and white button color. It is illuminated and has an environmental rating of IP66, NEMA 4X, and NEMA 13. The actuator is a knob with two positions.

• Includes contact block mounting adapter.
• Can be converted in the field to maintained operation with the removal of a color coded adapter.
• Most pushbutton operators and contact blocks exceed 5 million mechanical operations

Product Highlights

The M22-WLK-W modular pushbutton combines advanced design and enhanced functionality, making it suitable for various global machine control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WLK-W

Technical Specifications

• Type: Selector switch
• Bezel: Silver
• Actuator function: Momentary
• Button color: White
• Actuator: Knob
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Illumination: Illuminated
• Number of positions: 2
• Series: M22
• Size: 22.5 mm
• Color: White
• Mounting Hole Size: 22.5 mm in
• Application: Automation, Commercial, Institutional Buildings and Structures and Logic Control Equipment Applications
• Operator Type: Knob
• Bezel Material: Silver
• Enclosure Type: NEMA 4X/13/IP66
• Enclosure: NEMA 4X/13, IP66
• Temperature Rating: -25 to 70
• Throw: Center-Right 40 Degree
• Operation Type: Momentary
• MPN: M22-WLK-W
• Brand: EATON
• UPC: Does Not Apply
• Condition: New
• Contact Mode: Momentary
