Eaton M22-WK Knob Type Operator 22.5mm

Product Description

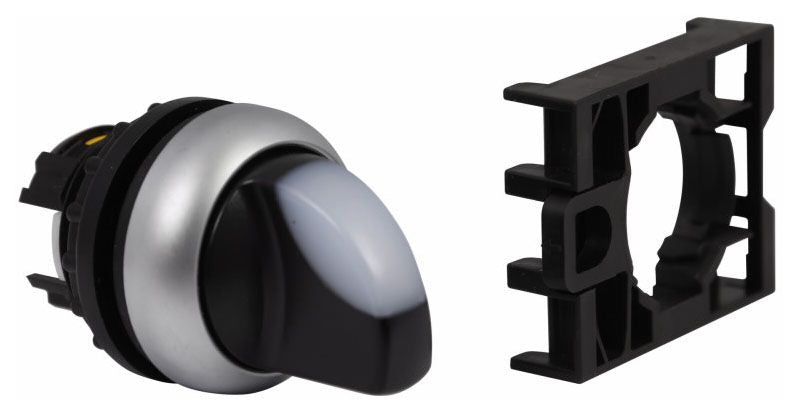

The EATON M22-WK is a knob type operator designed for use with 22.5mm modular control stations and pushbutton enclosures. It provides a rotary manual actuation interface for control circuits in industrial and commercial electrical panels. The M22-WK mounts directly to compatible 22.5mm base contact blocks and enclosure fronts, giving operators a positive, tactile means of actuating switching elements. At 0.05 pounds and compact in size, it is a straightforward replacement or new-installation component handled by licensed electricians and panel builders.

The M22-WK is suited for industrial control panels, machine tool enclosures, motor control centers, and similar applications where a knob-style operator is preferred over a pushbutton or selector switch. It fits the 22.5mm mounting cutout standard common across modular control station product lines. Typical installations include start-stop stations, local disconnect controls, and operator interface panels in manufacturing, processing, and building automation environments.

Key Features

• Knob type actuation for positive manual control in 22.5mm control stations
• Compact form factor at 2 inches x 2 inches x 1 inch overall envelope
• Lightweight construction at 0.05 pounds for easy panel integration
• Modular design compatible with 22.5mm contact block and enclosure systems

Compatibility

Designed as an OEM-style replacement or new-installation operator for 22.5mm modular control station systems.

Installation Notes

Installation is performed by a licensed electrician. De-energize and lock out the control panel per NFPA 70E procedures before removing or installing any operator component. Verify the mounting cutout is 22.5mm and that the contact block behind the operator is rated for the circuit being controlled. Secure the operator to the enclosure front plate per the contact block manufacturer torque guidance.

Technical Specifications

• Operator Type: Knob
• Mounting Size: 22.5mm
• Dimensions (L x W x H): 2 inches x 2 inches x 1 inch
• Weight: 0.05 pounds
• UPC: 78668528141

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-WK
