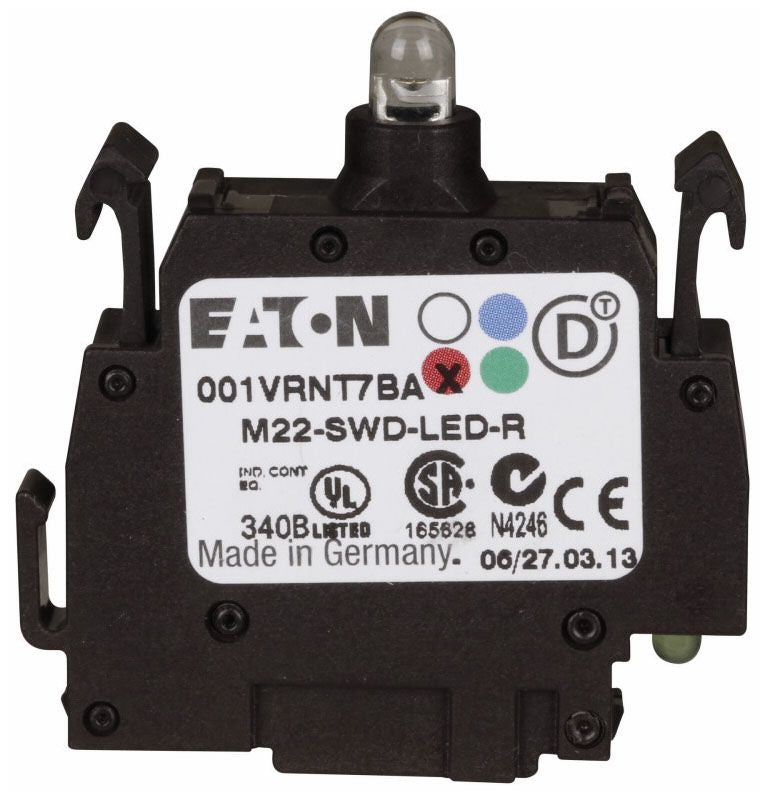

Eaton M22-SWD-LED-R Led Indicator Module Red

Product Description

The EATON M22-SWD-LED-R is a red LED indicator module designed for use with M22 series SmartWire-DT pushbutton and pilot device assemblies. It provides a clear, low-power illuminated status indication in control panel and machine operator interface applications. The module snaps into compatible M22 series front elements and communicates over the SmartWire-DT network, eliminating the need for conventional discrete wiring to each indicator. Licensed electricians and industrial control panel builders are the primary installers of this component.

This LED module is suited for industrial control panel assemblies, machine tool operator stations, and process equipment interfaces where SmartWire-DT network architecture is in use. It is appropriate for both original equipment manufacturer panel builds and field retrofits on existing M22 series operator interface installations. The red lens color is commonly used to indicate fault, stop, or alarm states in standard panel design conventions.

Key Features

• Red LED illumination for fault, stop, or alarm indication
• Designed for integration with M22 series SmartWire-DT operator interface assemblies
• Eliminates discrete indicator wiring by communicating over SmartWire-DT network
• Compact, lightweight construction at 0.022 pounds
• Snap-in mounting for quick assembly into compatible M22 front elements

Compatibility

Designed as an OEM-style replacement and expansion module for EATON M22 series SmartWire-DT pushbutton and pilot device assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and the panel manufacturer guidelines. De-energize the SmartWire-DT network and disconnect all power to the control panel before installing or removing the module. The module snaps into the M22 front element without tools, but verify secure seating before restoring power. Follow the SmartWire-DT system commissioning procedure to recognize newly added devices on the network.

Technical Specifications

• Indicator Color: Red
• Weight: 0.022 pounds
• UPC: 78668587954

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-SWD-LED-R
