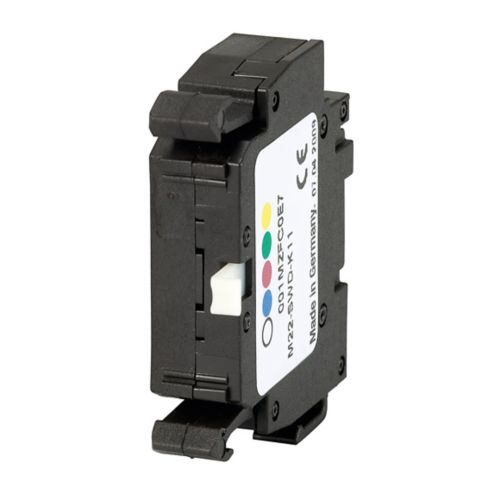

The Eaton M22-SWD-K11 SmartWire-DT intelligent wiring system contact module reduces panel and machine wiring complexity. It consolidates complex circuit wiring into a single cable, simplifying the connection of components. This contact module features front mounting and is an eight-pole module for SmartWire-DT networks.

  • Dramatically reduces wiring time
  • Fault-free mounting and wiring of on-machine components up to 2000 ft from the control panel
  • For combination with RMQ-Titan operating elements M22-...

Product Highlights

The Eaton M22-SWD-K11 contact module streamlines testing and reduces installation, commissioning, and troubleshooting.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: M22-SWD-K11
Technical Specifications
Product Name
Eaton SmartWire-DT Intelligent wiring system contact module
Catalog Number
M22-SWD-K11
UPC
786685879529
Product Length/Depth
1.54 in
Product Height
1.65 in
Product Width
0.47 in
Product Weight
0.022 lb
Compliances
CE Marked
Certifications
UL Listed
Catalog Notes
M22 contact module without LED, front mount
Product Type
Intelligent wiring system accessory
Number of poles
Eight-pole
Light color
Green
Number of contacts
1
Model Code
M22-SWD-K11
EAN
4015081157044
Electric connection type
Flat plug-in connection
Pollution degree
2
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Addressing
Address set automatically
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Number of contacts (change-over contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Number of switches (fault signal)
0
Connection to SmartWire-DT
Yes
Environmental conditions
Condensation: prevent with appropriate measures
Mounting position
As required
Connection type
Front fixing
Mounting method
Front fastening
Connection
SmartWire-DT plug connector SWD4-8SF2-5
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Overvoltage category
Not applicable
Degree of protection
IP20
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Model
Top mounting
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Lamp holder
None
Functions
For combination with RMQ-Titan operating elements M22-...
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Radio interference class
Class A (EN 55011)
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network
Static heat dissipation, non-current-dependent Pvs
0.3 W
Product category
SmartWire-DT RMQ connections
Rated operational current for specified heat dissipation (In)
0 A
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
UNSPSC
32101513
Application
For Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs
Size
3/4
Dimensions
1.65 in H x 0.4 in W x 1.54 in L
