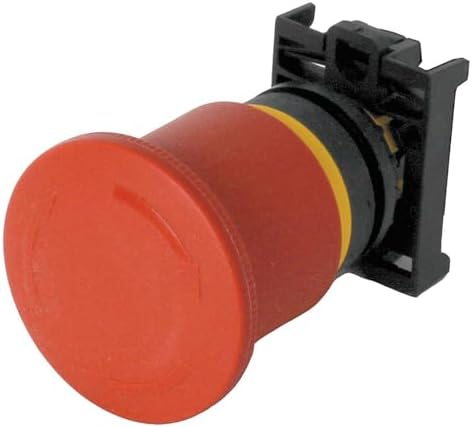

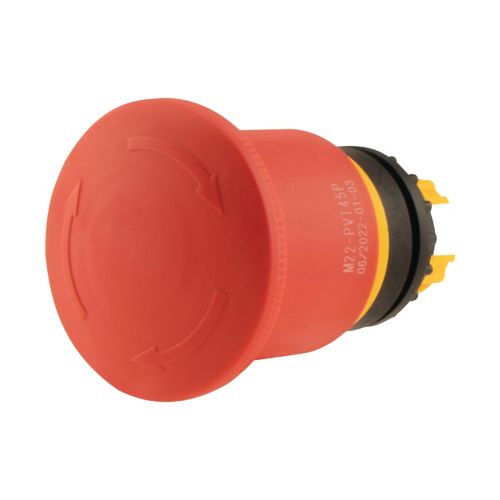

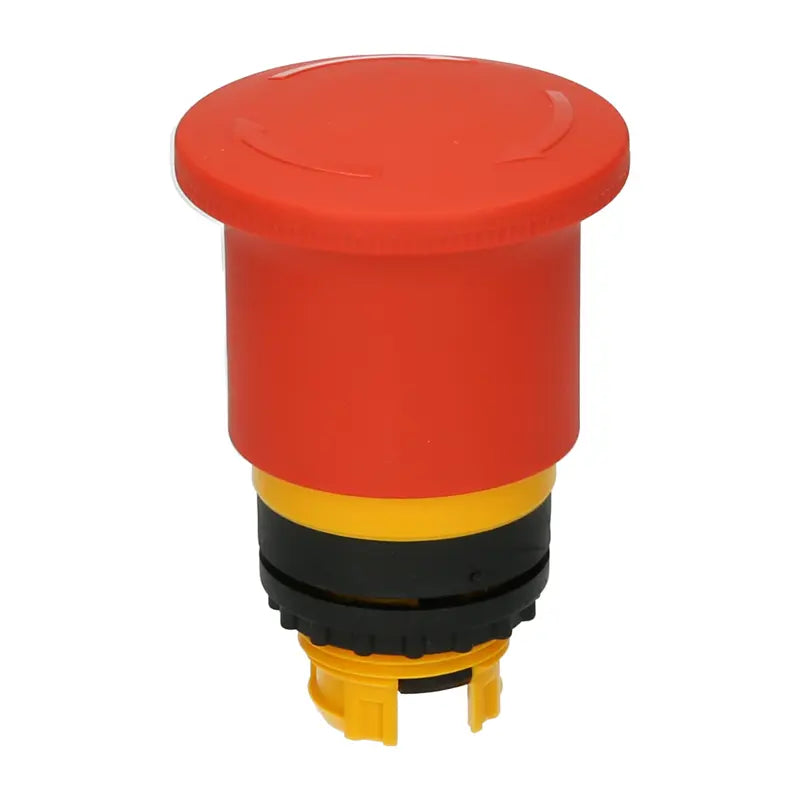

Eaton M22-PVT45P Modular Twist-to-Release Emergency Stop Operator 45 mm

Product Description

The Eaton M22-PVT45P is a modular twist-to-release emergency stop operator with a 45 mm pushbutton. This non-illuminated, red button is designed for a 22.5 mm mounting size. It is constructed to meet IP67, IP69K, NEMA 4X, and NEMA 13 environmental ratings and is rated for 100,000 operating cycles. Includes contact block mounting adapter.

• Twist-to-release functionality
• Non-illuminated
• Rated for 100,000 operations

Product Highlights

The M22-PVT45P emergency stop operator is ideal for industrial applications requiring a robust and reliable emergency stop mechanism.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22-PVT45P

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: M22-PVT45P
• UPC: 786685450032
• Product Length/Depth: 2.5 in
• Product Height: 3 in
• Product Width: 3.5 in
• Catalog Notes: Includes contact block mounting adapter.
• Product Type: Modular pushbutton
• Type: Emergency Stop
• Actuator function: Twist-to-release
• Button color: Red
• Actuator: 45 mm pushbutton
• Illumination: Non-illuminated
• Series: M22
• Environmental rating: IP67, IP69K, NEMA 4X, NEMA 13
• Operating cycles: 100,000
• Size: 22.5 mm
• Operation Mode: manual
• Contact Type: Normally Open
• Brand: CUTLER HAMMER
• Switch Type: Metal, Push Button
• Terminal: Screw
• Material: Metal, Polycarbonate
• Circuit Type: 1-way
• Mounting Type: Panel Mount
• Actuator Type: Push Button
• Number of Positions: 1
• Controller Type: Push Button
• Control Method: Touch
• Rotate release: Yes
• Protection: IP66/IP67/IP69K
• Drilling Dimensions: 22.5 mm
• Mushroom diameter: 45 mm
