Eaton M22-PVT-K12-P Emergency Stop Push Button 22.5 mm 1NO 2NC

Product Description

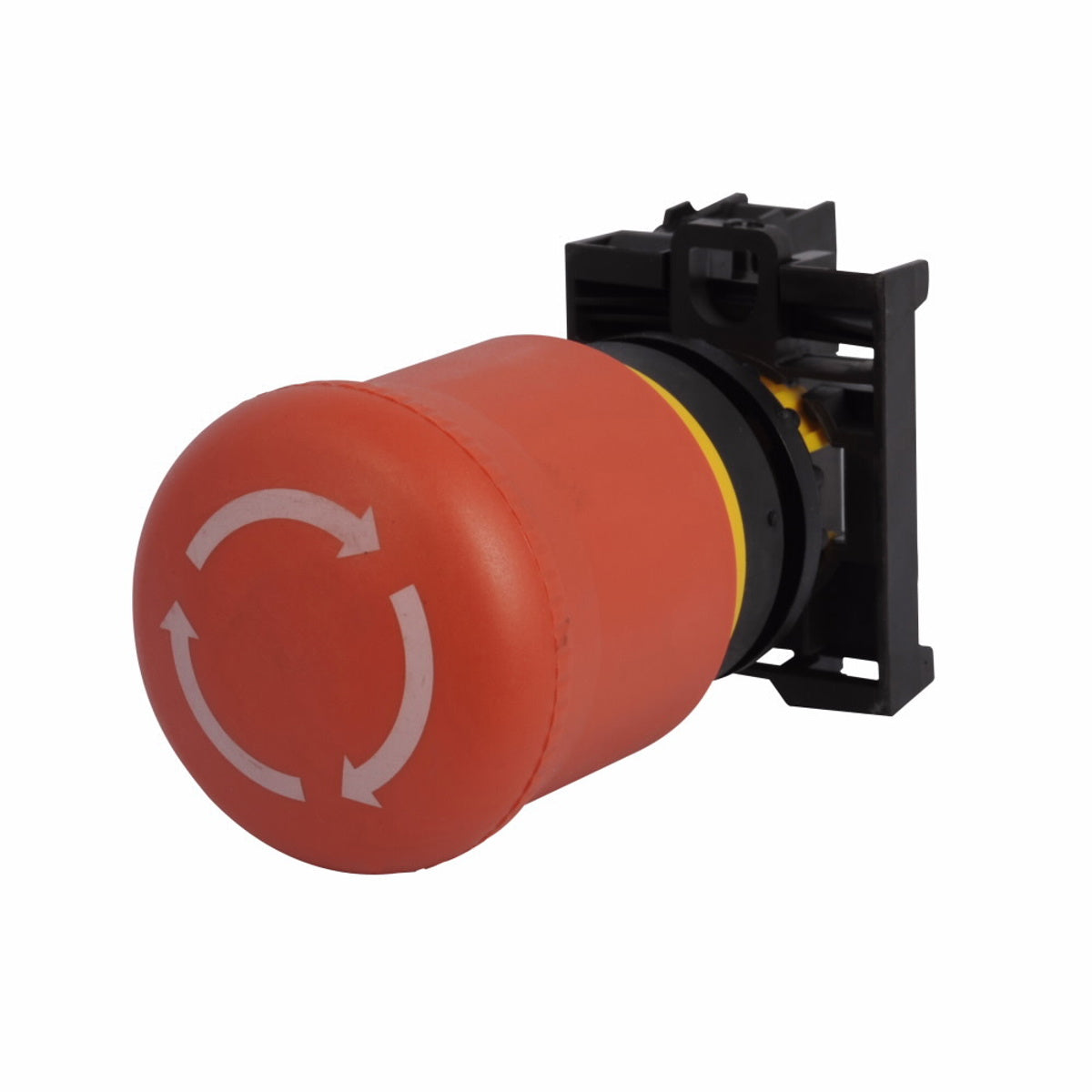

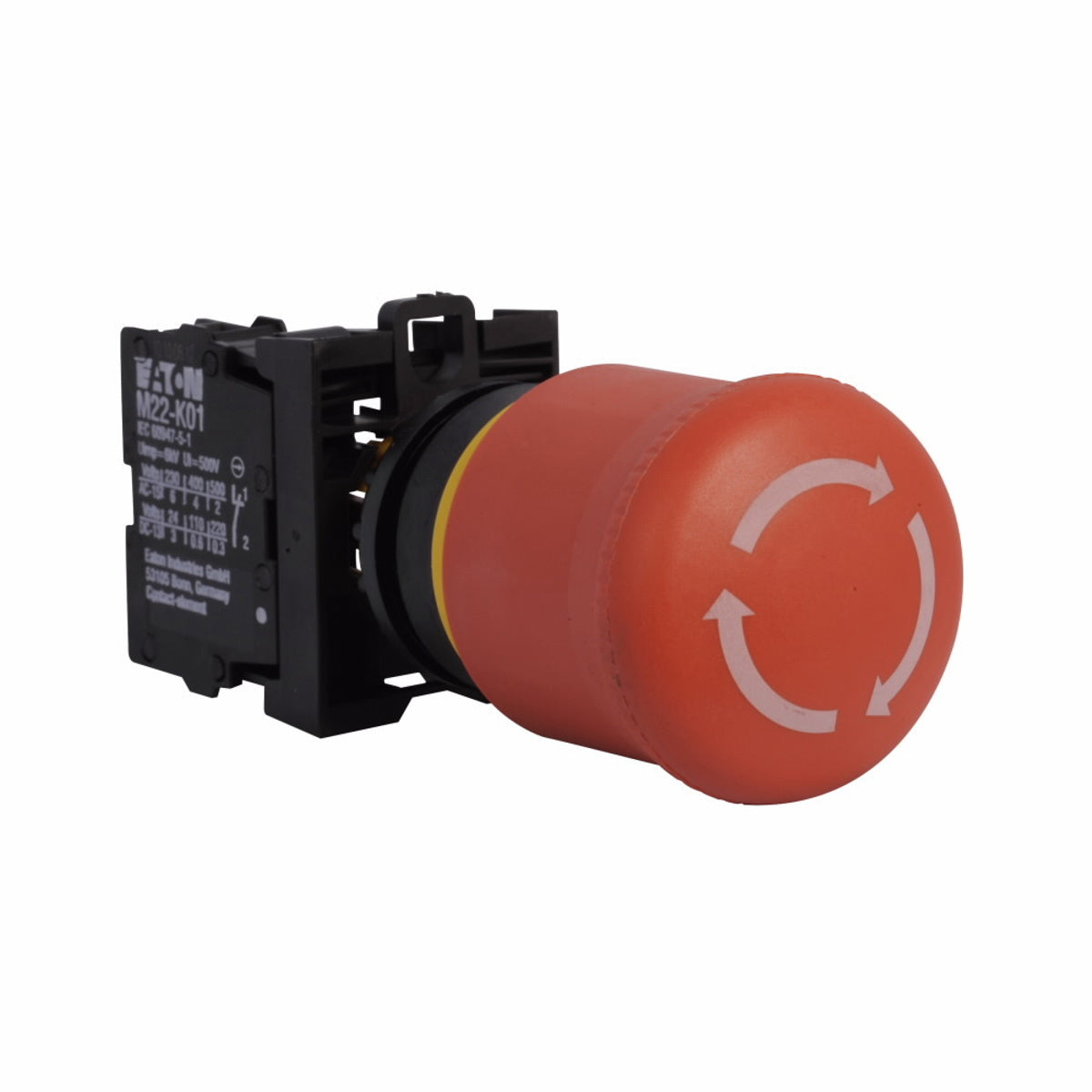

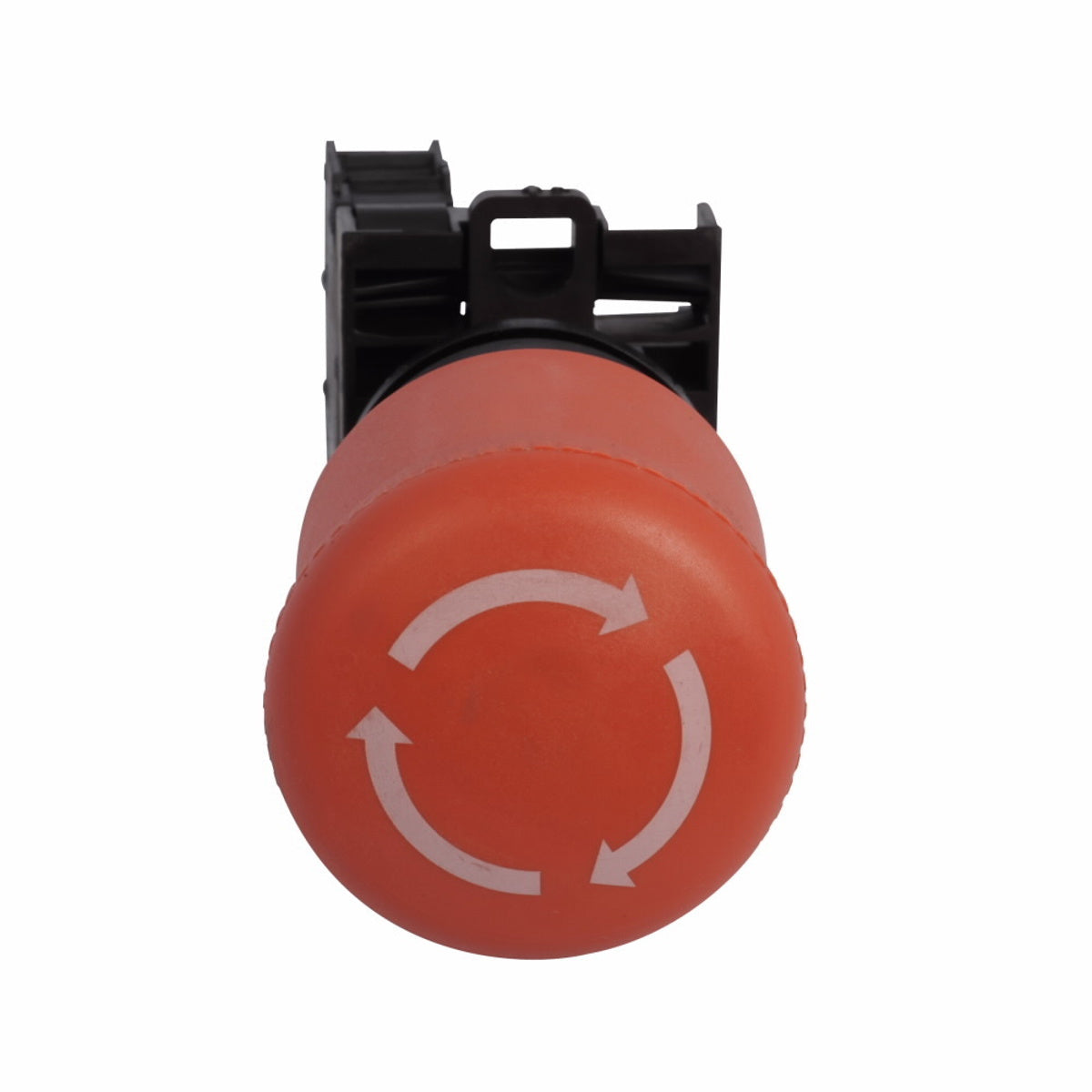

Eaton M22-PVT-K12-P is a momentary twist-to-release emergency stop switch. This switch features a durable red knob and a silver bezel. It operates with one normally open and two normally closed contacts, making it suitable for various emergency stop applications.

• Twist-to-release operation for quick emergency responses.
• Rated for IP67 and NEMA 4X/13 enclosures, suitable for harsh environments.
• Compatible with electrical assemblies, panels, and OEM applications.

Product Highlights

This non-illuminated push button supports over 100,000 mechanical operations and is built for robustness, meeting various industry standards.

Product Information

Standard Information

• Brand: Eaton
• MPN: M22-PVT-K12-P

Technical Specifications

• Size: 22.5 mm
• Contact Rating: 10 A at 550 VAC, 10 A at 600 VDC
• Contact Configuration: 1NO-2NC
• Enclosure Type: NEMA 4X/13, IP67, IP69K
• Temperature Range: -13 to 158 degrees Fahrenheit
• Material: Plastic
• Action: Maintained
• Operator Type: Knob, twist-to-release
